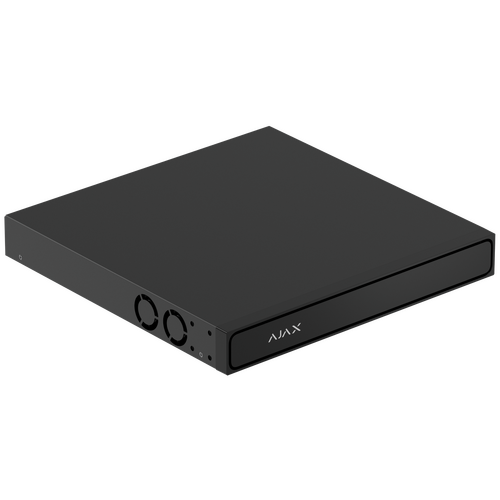

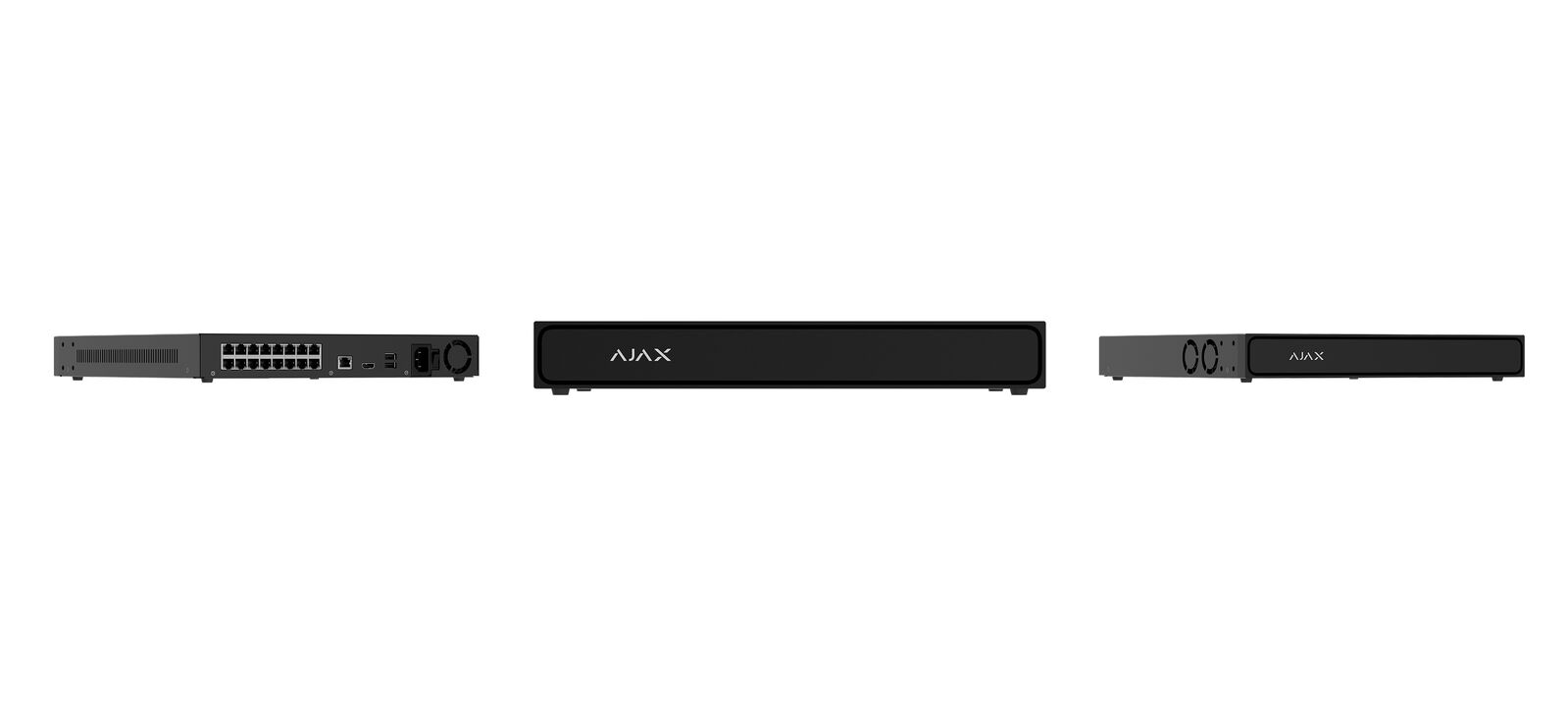

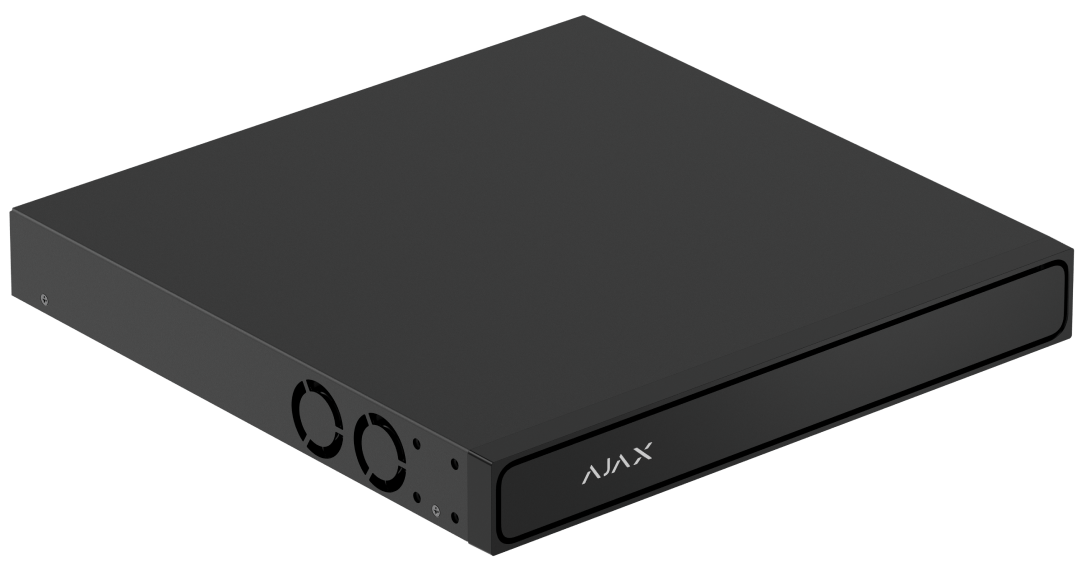

Ajax NVR H2D16PAC 16-Channel Black

Ajax NVR H2D16PAC 16-Channel Black

The Ajax NVR H2D16PAC records 16 IP channels and powers them from 16 onboard PoE ports. Built for Australian installers who want a single recorder for a 16-camera Ajax or mixed ONVIF site, with 4K HDMI on the desk and two hot-swap drives in the rack.

Key Features

• 16 IP channels with 4K HDMI (3840 × 2160) local output
• 16 × IEEE 802.3af/at PoE ports, up to 25 W per port, 160 W total budget
• 2 × SATA III hot-swap bays, up to 16 TB each (drives not included), redundancy or split recording
• 1 × Gigabit RJ45 (10/100/1000)
• Codecs: H.265, H.264, JetSparrow; bandwidth 160 Mbps incoming / 160 Mbps outgoing
• 3 × USB 2.0 (2 rear, 1 front); ONVIF Profile S and RTSP for third-party cameras
• Built-in VMS, video wall, Ajax alarm-to-camera highlight, accelerometer tamper
• Indoor IP20, 100–240 V AC, up to 280 W; 24-month manufacturer warranty

Where it fits

Sixteen-camera jobs: supermarket, school, warehouse, multi-building site where cameras can land on the NVR PoE ports. 160 W total PoE — size camera draw accordingly. Indoor rack or shelf, ears in the box.

What's in the Box

• NVR H2D16PAC (16-ch)
• 2 × rack-mount brackets
• Power cable
• Ethernet cable
• Installation kit
• Quick start guide

Specifications

• Model: NVR H2D16PAC (16-ch) — Black
• Dimensions: 330 × 330 × 44 mm (0.330 × 0.330 × 0.044 m)
• Weight (without drives): 3.31 kg
• Operating: 0–50 °C, up to 75% RH, indoor only

Official specs: https://ajax.systems/products/specs/nvr-h2d16pac-16-ch/
