Ajax Fibra Hub Hybrid 4G Black Wired & Wireless Alarm Control Panel

Ajax Fibra Hub Hybrid 4G Black Control Panel

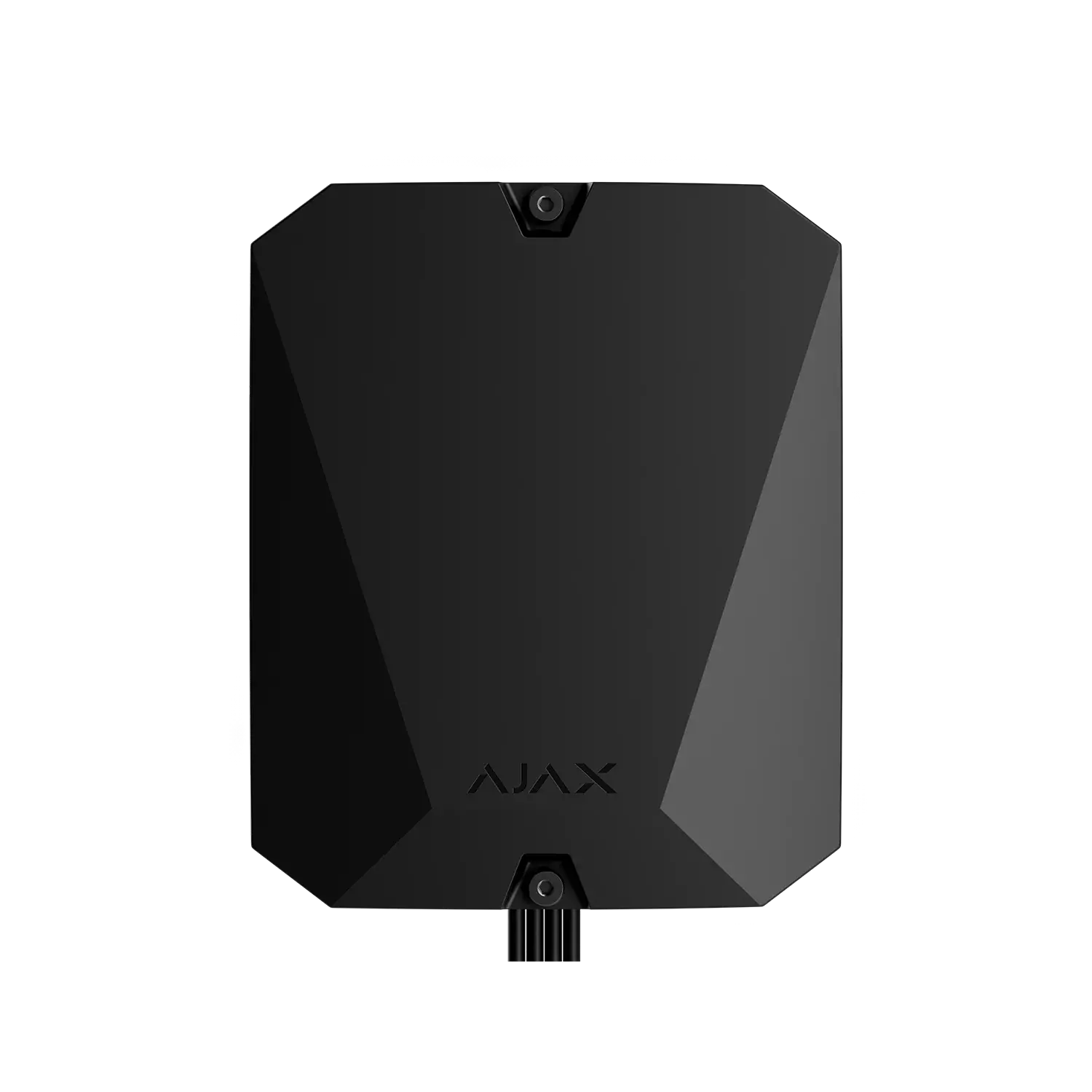

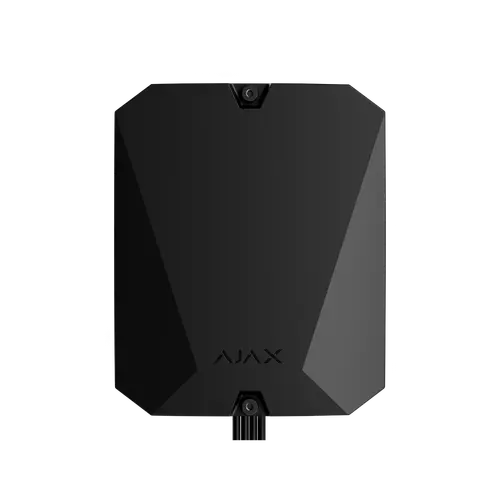

The Ajax Fibra Hub Hybrid (4G) in black is a professional-grade control panel that lets installers combine wired Fibra devices with wireless Jeweller sensors on a single security system. Built for sites where cable runs and radio sensors both make sense, this hub gives integrators the flexibility to design a layered, tamper-resistant alarm solution that suits almost any commercial or residential floor plan.

Key Features

• Dual communication technology: Supports both Fibra wired devices and Jeweller wireless sensors on the same hub for true hybrid coverage.
• Large device capacity: Connects up to 100 wired and wireless Ajax devices with support for up to 50 system users.
• Eight independent Fibra lines: Each line can run up to 2,000 metres using standard U/UTP Cat5 cable, giving long reach without repeaters.
• Ring topology support: If a wired line is cut, the system automatically splits into two working segments so protection continues and staff are alerted to the fault.
• Dual-path connectivity: Built-in Ethernet plus two micro-SIM slots (2G/3G/4G LTE) allow automatic failover between connection types for reliable monitoring.
• Photo verification ready: Works with MotionCam-style sensors over the Wings protocol, sending alarm photos to speed up incident verification.
• Backup battery bay: Internal space accepts 4, 7, or 9 Ah batteries, with a 7 Ah battery able to run around 30 wired devices for roughly 60 hours during a power outage.
• Anti-tamper protection: Twin tamper buttons detect casing removal or attempts to pull the panel from the wall.
• Full app control: Arm, disarm, monitor status, and configure automation scenarios remotely through the Ajax mobile app.

Suited to Demanding, Mixed-Technology Installations

This hub is ideal for installers upgrading existing wired sites, retrofitting older premises, or protecting large properties where some zones are easier to cable and others are better served by wireless sensors. Its long Fibra line range and ring topology make it well suited to warehouses, retail stores, offices, and multi-room residential properties where reliability and fast fault detection matter. Because it supports both SIM-based cellular backup and Ethernet, it also suits sites with unreliable fixed-line internet.

What's in the Box

• Ajax Fibra Hub Hybrid (4G) control panel, black casing
• Mounting hardware and hexagon key for the casing lid
• Power cable and terminal connectors
• Tamper board (pre-installed)
• Quick start documentation with QR code for app pairing

Frequently Asked Questions

Can this hub run wired and wireless devices at the same time?
Yes, it is a true hybrid panel that supports Fibra wired devices and Jeweller wireless sensors together on one system.

What happens if a wired Fibra line is damaged?
With ring topology configured, the affected line splits into two independent segments so connected devices keep working while the fault is reported.

Does it need a SIM card to work?
No, it can connect via Ethernet, cellular SIM, or both simultaneously for redundant, dual-path monitoring.
