Ajax Superior Hub Hybrid 4G White Wired & Wireless Control Panel

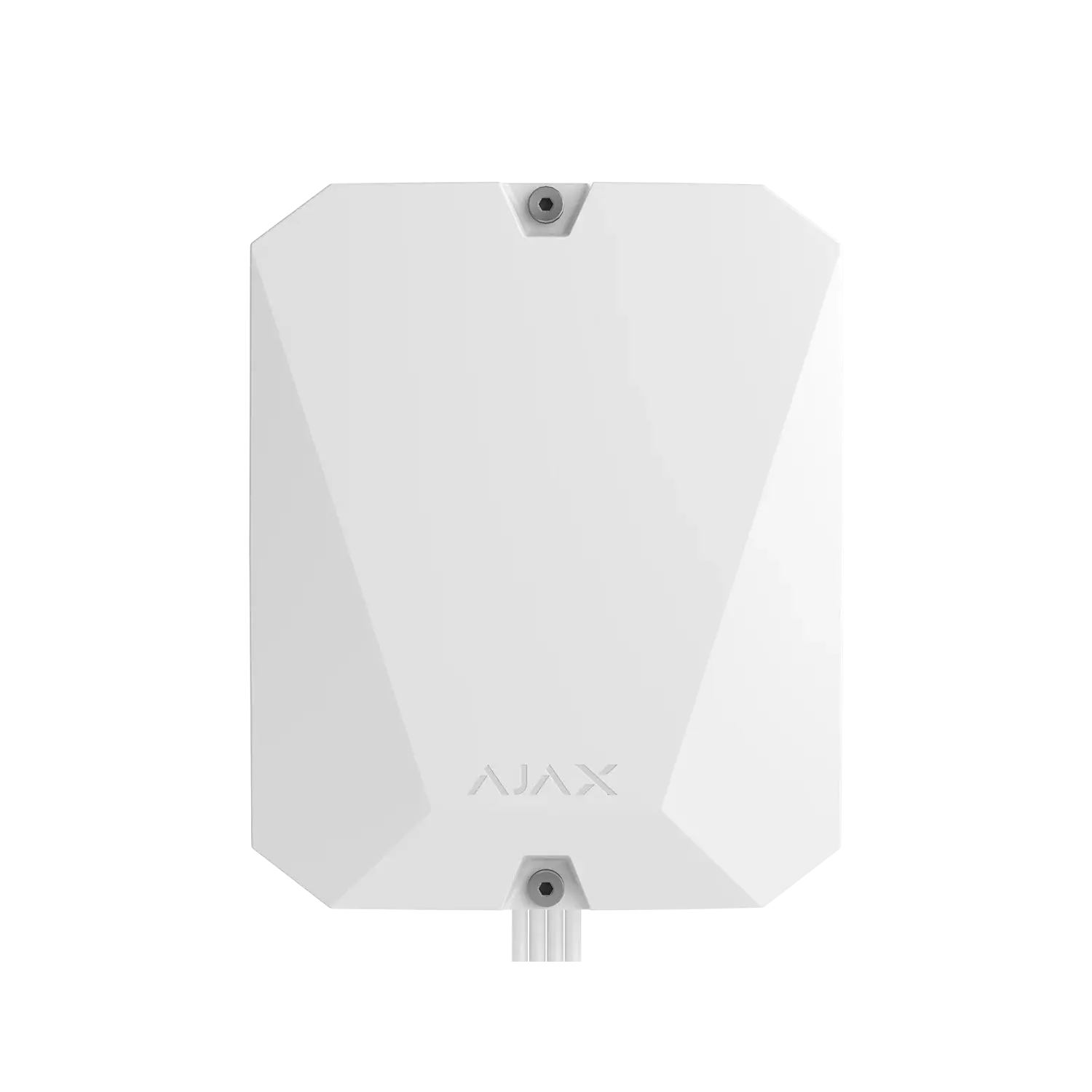

Ajax Superior Hub Hybrid (4G) White Control Panel

The Ajax Superior Hub Hybrid (4G) in white is a professional-grade security control panel that brings together the best of two worlds: the tamper-resistant reliability of wired Fibra devices and the fast, flexible installation of wireless Jeweller sensors. Designed for installers who need a single brain for complex sites, it lets you mix and match wired and wireless detectors on one system while keeping communication fast, encrypted, and verified through the Ajax app.

Key Features

• Hybrid architecture: Combines wired Fibra lines with wireless Jeweller devices in one unified security system.
• Triple communication path: Uses Ethernet as the primary link, backed by two SIM slots for automatic 2G/3G/4G LTE failover.
• Large device capacity: Supports up to 100 connected devices in any combination of wired and wireless hardware.
• Extended wired reach: Each of the 8 Fibra lines can run up to 2,000 metres, ideal for large or multi-building sites.
• Fast photo verification: Receives alarm-triggered snapshots from compatible detectors in as little as 9 seconds to help confirm real intrusions.
• Resilient battery backup: Runs 30 wired devices for up to 60 hours on a 7 Ah battery, extendable to roughly 200 hours with power-saving mode enabled.
• Strong encryption and anti-sabotage: Protects data with block encryption and a dynamic key, plus tamper and line-break detection.
• Smart automation: Triggers scenarios based on arming state, schedule, button presses, or readings like temperature, humidity, and CO2.
• Simple setup: QR-code registration and app-guided wiring make commissioning quicker for installers.

Built for Demanding Installations

This hub suits offices, retail premises, warehouses, and residential properties where a site may already have wired infrastructure but also needs the flexibility to add wireless sensors later. Its multiple communication channels and long Fibra line reach make it a solid choice for facilities with thick walls, multiple floors, or a need for redundant connectivity if the internet or power drops out.

What's in the Box

• Ajax Superior Hub Hybrid (4G) control panel, white
• Mounting bracket for wall installation
• Mounting screws and fixings
• Quick start guide
• Warranty card

Note: backup battery and SIM card are sold separately.

Frequently Asked Questions

Does the hub need a SIM card to work?
A SIM card is optional but recommended, since it provides cellular backup if the Ethernet connection fails. The hub can run on Ethernet alone.

Can I connect both wired and wireless Ajax devices to it?
Yes, the hub supports Fibra wired devices and Jeweller wireless devices at the same time, so you can build a system suited to the property.

Is a backup battery included with the hub?
No, the hub accepts 12V batteries of 4, 7, or 9 Ah capacity, but these are purchased separately based on the backup runtime you need.
