Ajax Hub BP Jeweller White Battery-Powered Wireless Control Panel

Ajax Hub BP Jeweller White - Battery-Powered Wireless Control Panel

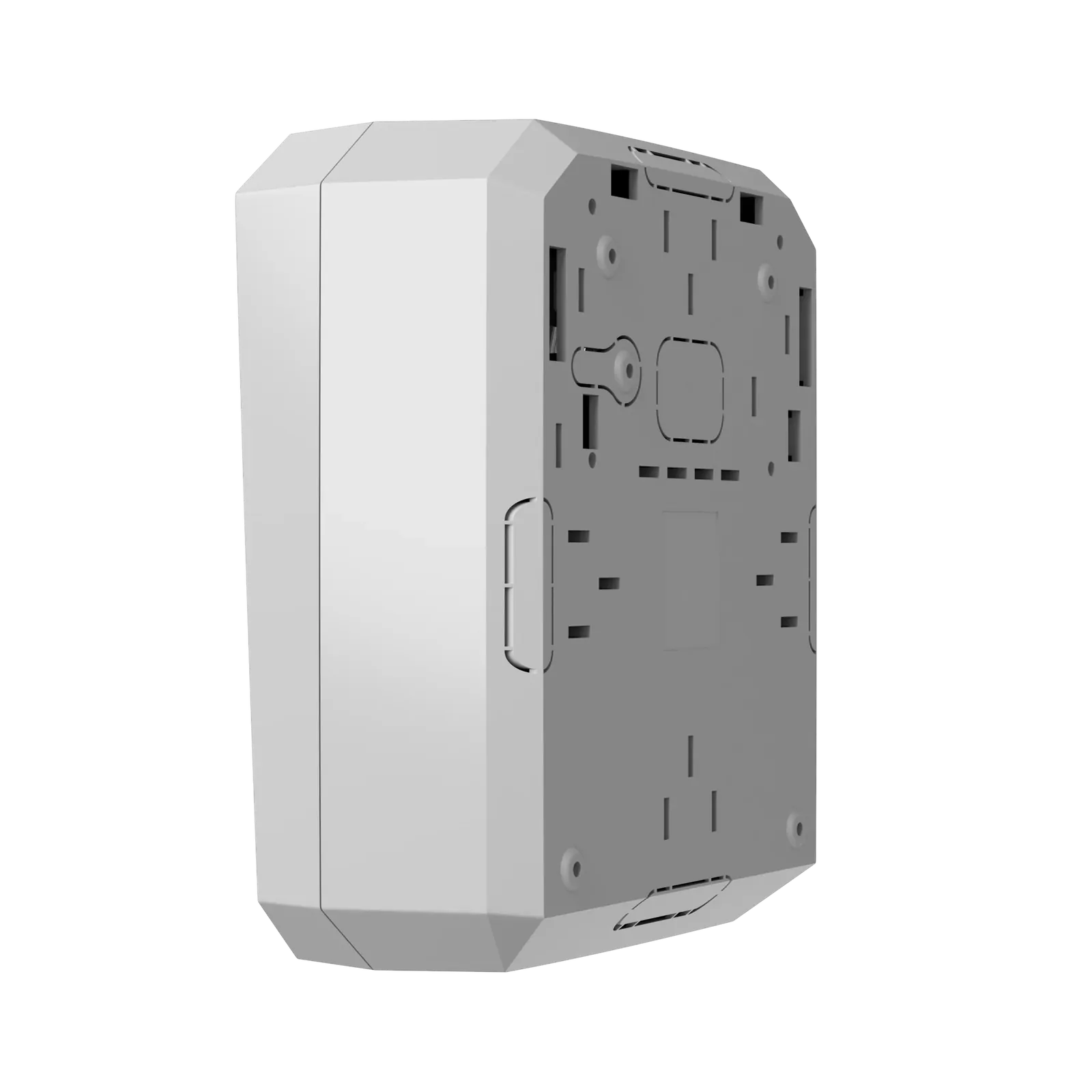

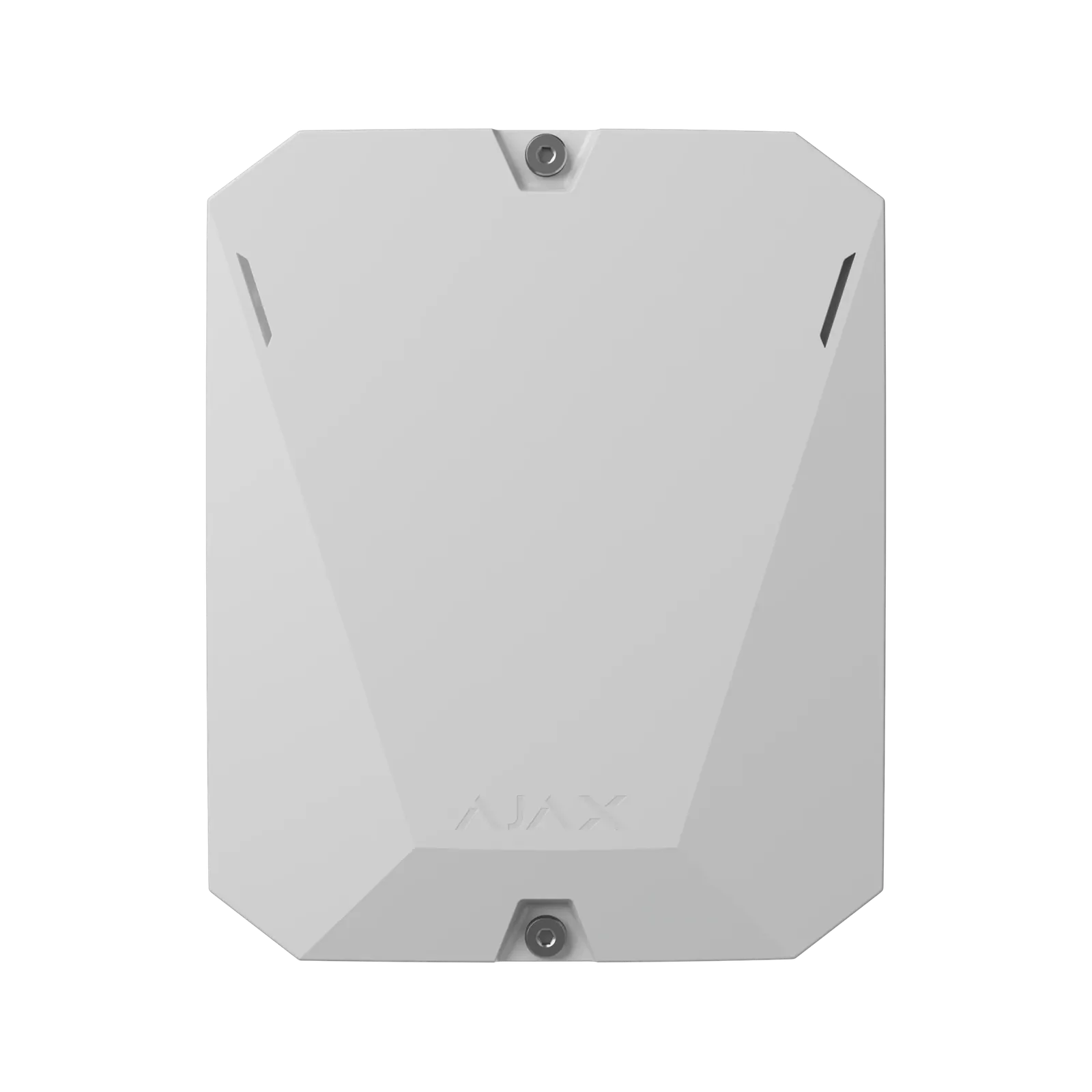

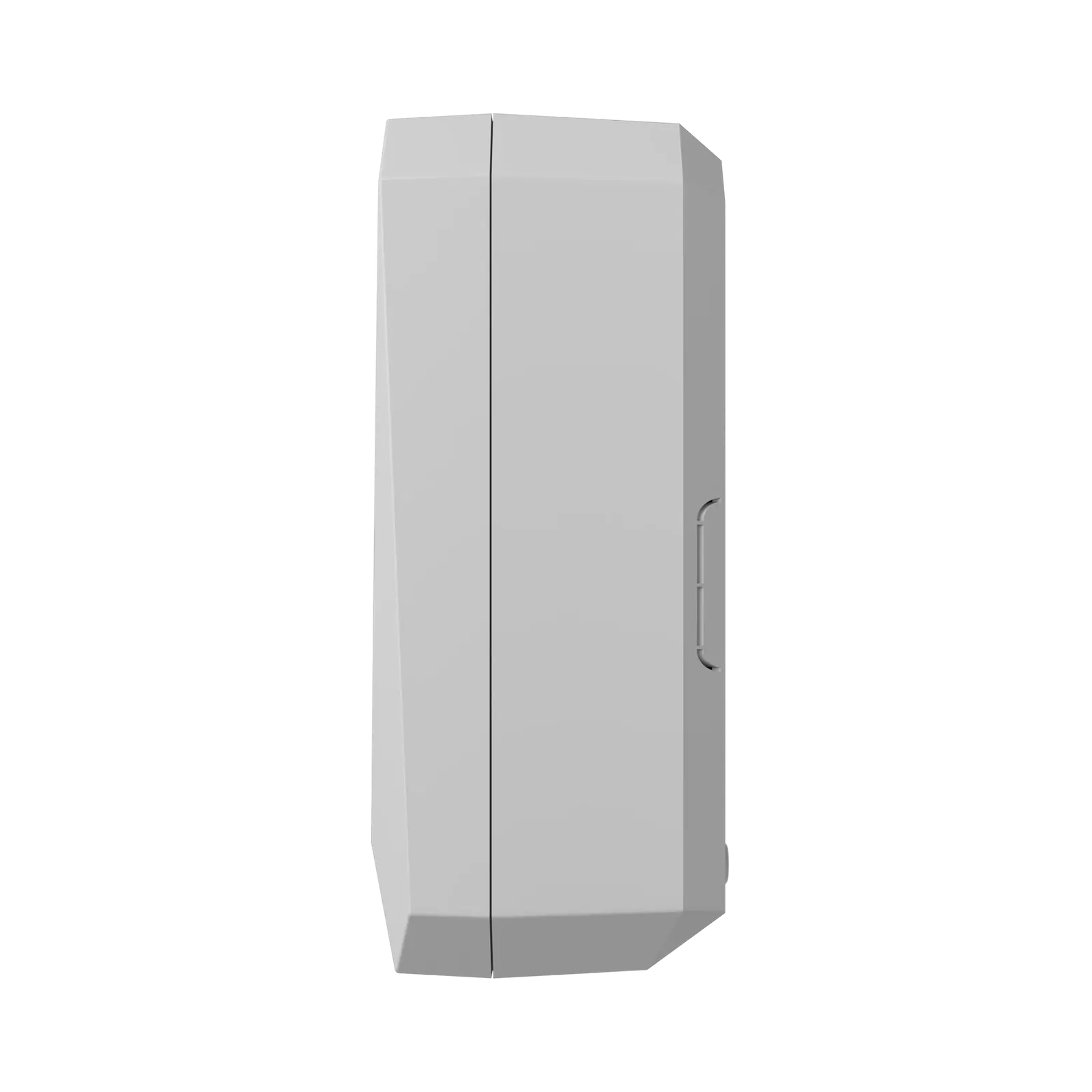

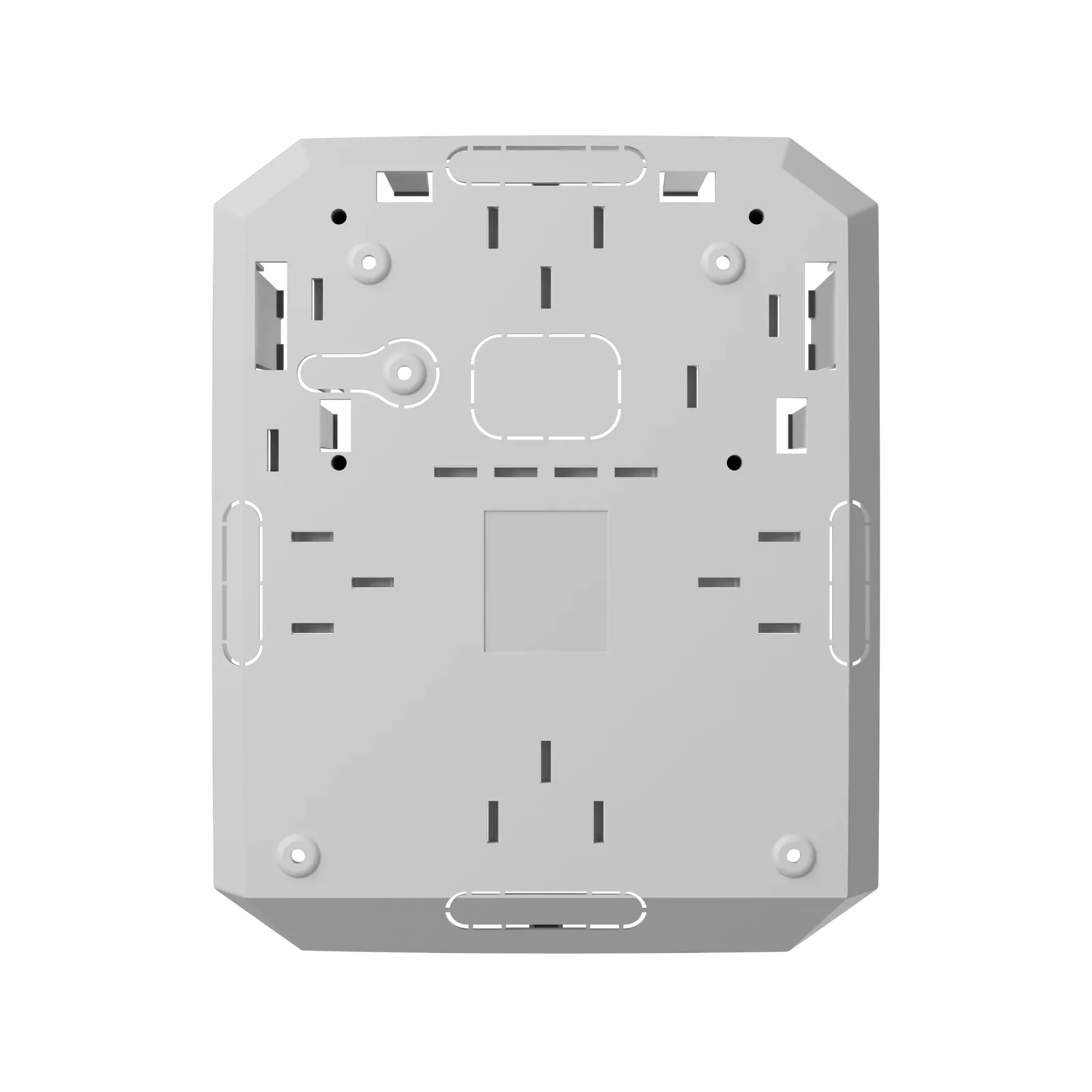

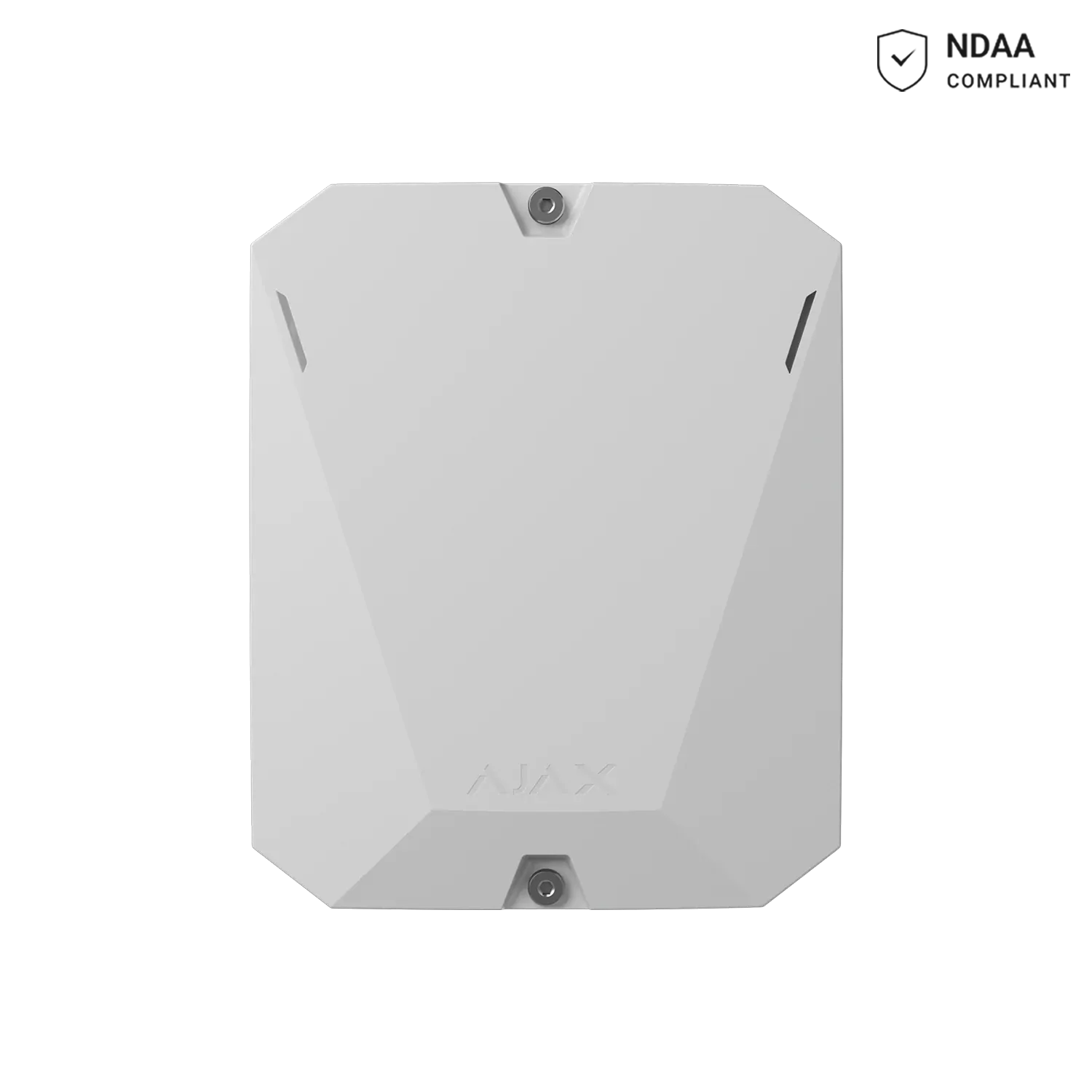

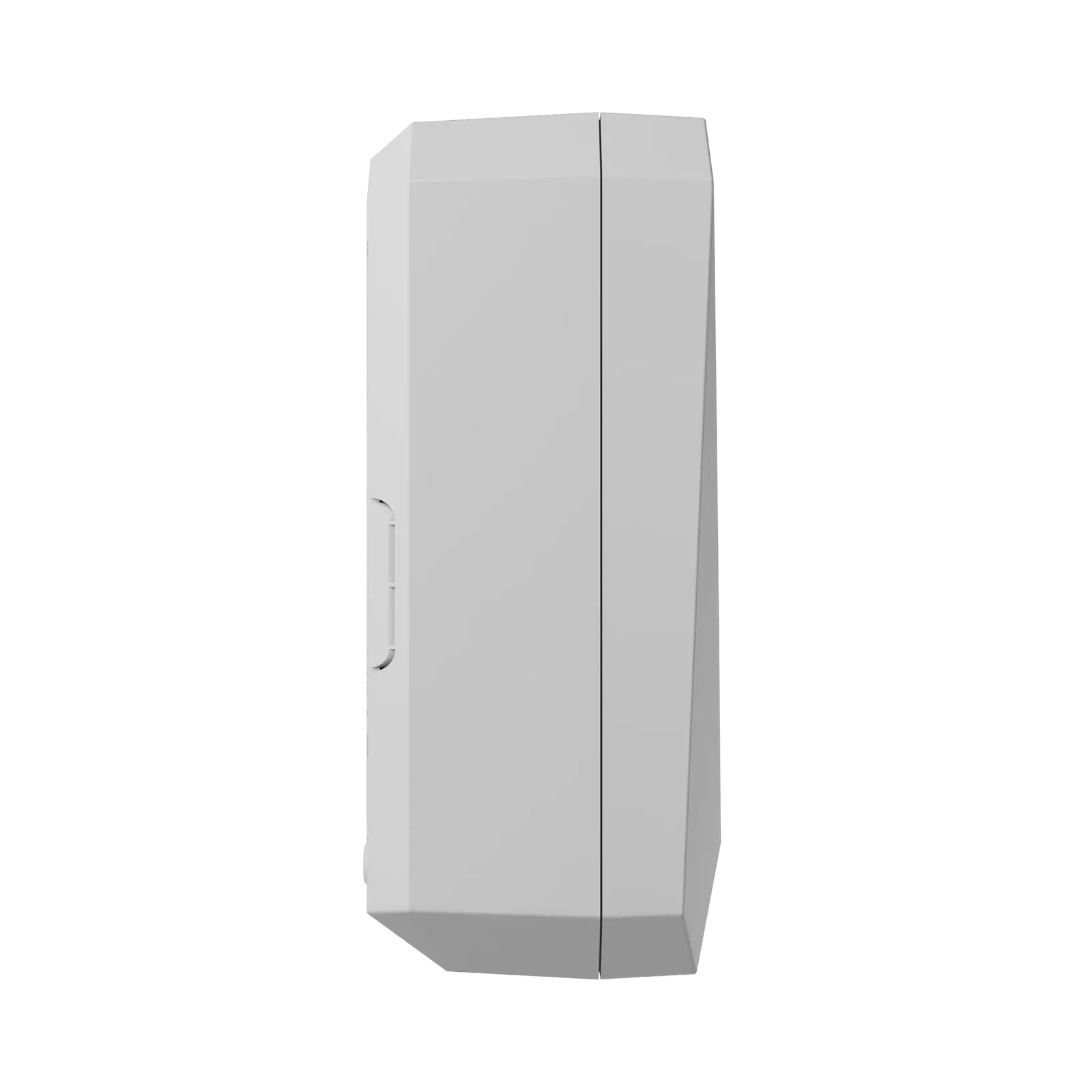

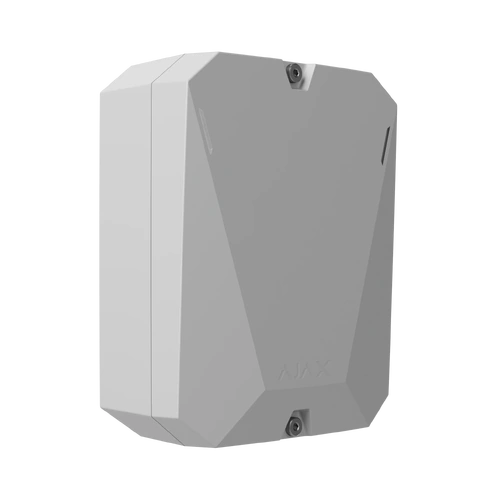

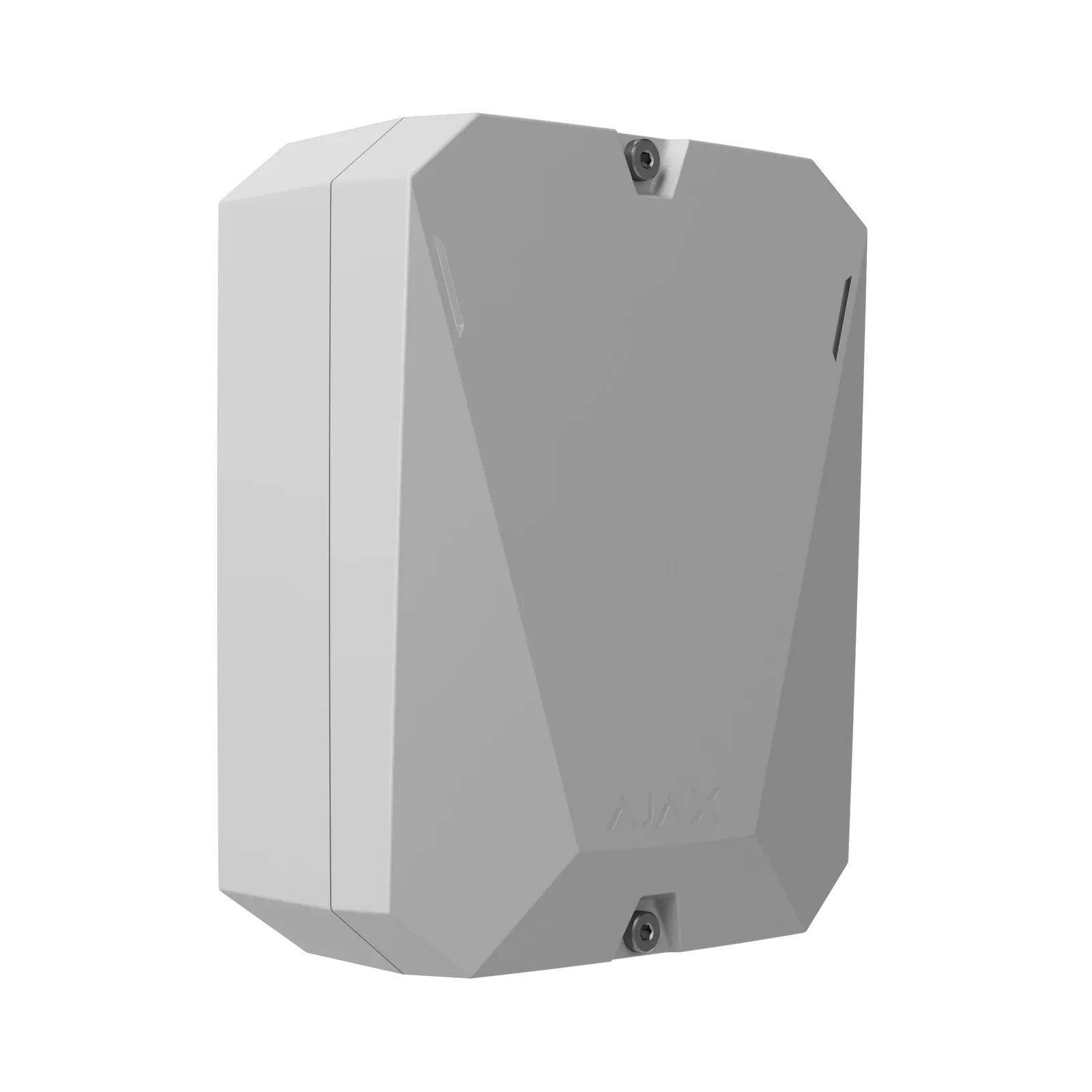

The Ajax Hub BP Jeweller is a wireless security control panel built for sites that have no reliable mains power. Unlike standard hubs, it runs entirely on internal and external batteries, making it a practical choice for construction sites, vacant properties, remote farms, solar installations, and other off-grid locations. As the central brain of an Ajax security system, it links wireless detectors, sirens, cameras, and automation devices while communicating with the Ajax Cloud over dual SIM cellular connections.

Key Features

• Fully battery-operated - runs on internal and external batteries, with support for rechargeable and non-rechargeable (zinc-air) power sources, plus solar-panel compatibility for long-term autonomy.
• Dual SIM redundancy - two SIM card slots let the hub connect through two different mobile carriers, automatically switching if one network drops out.
• Photo verification support - works with Ajax MotionCam and MotionCam Outdoor detectors to deliver visual alarm confirmation.
• Battery power saver mode - stretches battery life by adjusting server polling intervals (from every 1 to 24 hours) while still transmitting alarms and photos.
• Large device capacity - supports up to 100 Ajax devices, nine independent security groups, and 50 system users.
• Long wireless range - communicates with connected Ajax devices at distances up to 2,000 metres in open areas, using both Jeweller and Wings radio protocols.
• Anti-jamming and tamper protection - detects radio jamming attempts and casing tampering, instantly alerting users and the monitoring station.
• Secure, self-updating firmware - runs on the Ajax-developed OS Malevich, which receives automatic over-the-air security updates.
• Video system compatibility - integrates with Ajax cameras and NVRs, plus third-party cameras via RTSP or SDK.

Built for Off-Grid and Temporary Sites

Because it needs no mains connection, the Hub BP Jeweller is ideally suited to properties where wiring in electricity is impractical or too costly. Installers commonly deploy it to protect vacant homes awaiting sale, construction sites during the build phase, remote agricultural sheds, and temporary or seasonal premises. Its battery-only design also makes relocation simple, so the same hub can be moved from one job site to the next without needing an electrician.

What's in the Box

• Ajax Hub BP Jeweller control panel (white)

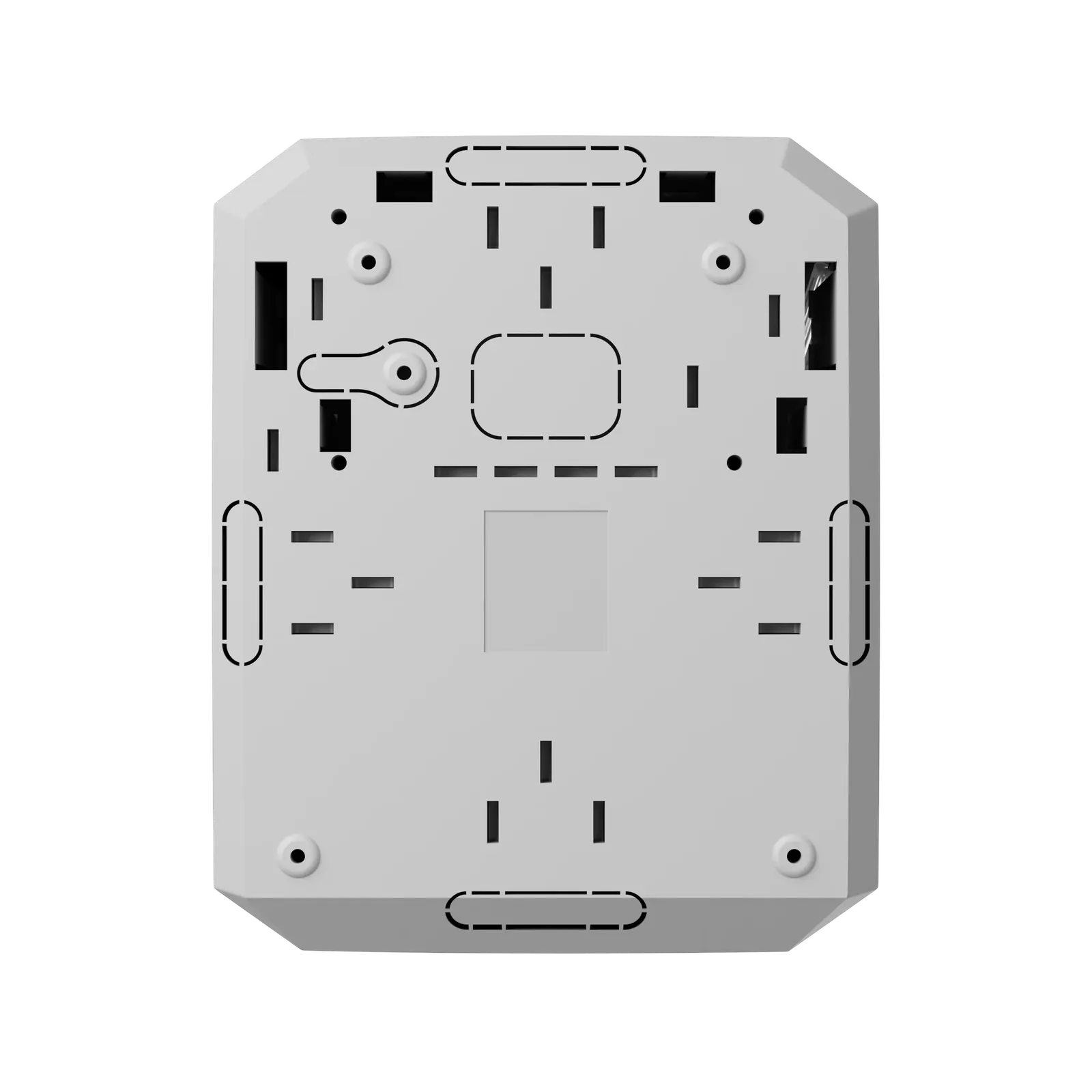

• Mounting bracket and installation hardware
• SIM card tray/tool
• Quick start guide

Frequently Asked Questions

Does the Hub BP Jeweller need mains power at all?
No. It is designed to run entirely on internal and external batteries or optional solar power, with no mains connection required.

How many devices can it support?
The hub can manage up to 100 Ajax devices across intrusion, fire, video, and automation categories.

Can it work with two different mobile networks?
Yes, it has two SIM card slots so it can stay connected via two separate carriers, switching automatically if one connection fails.
