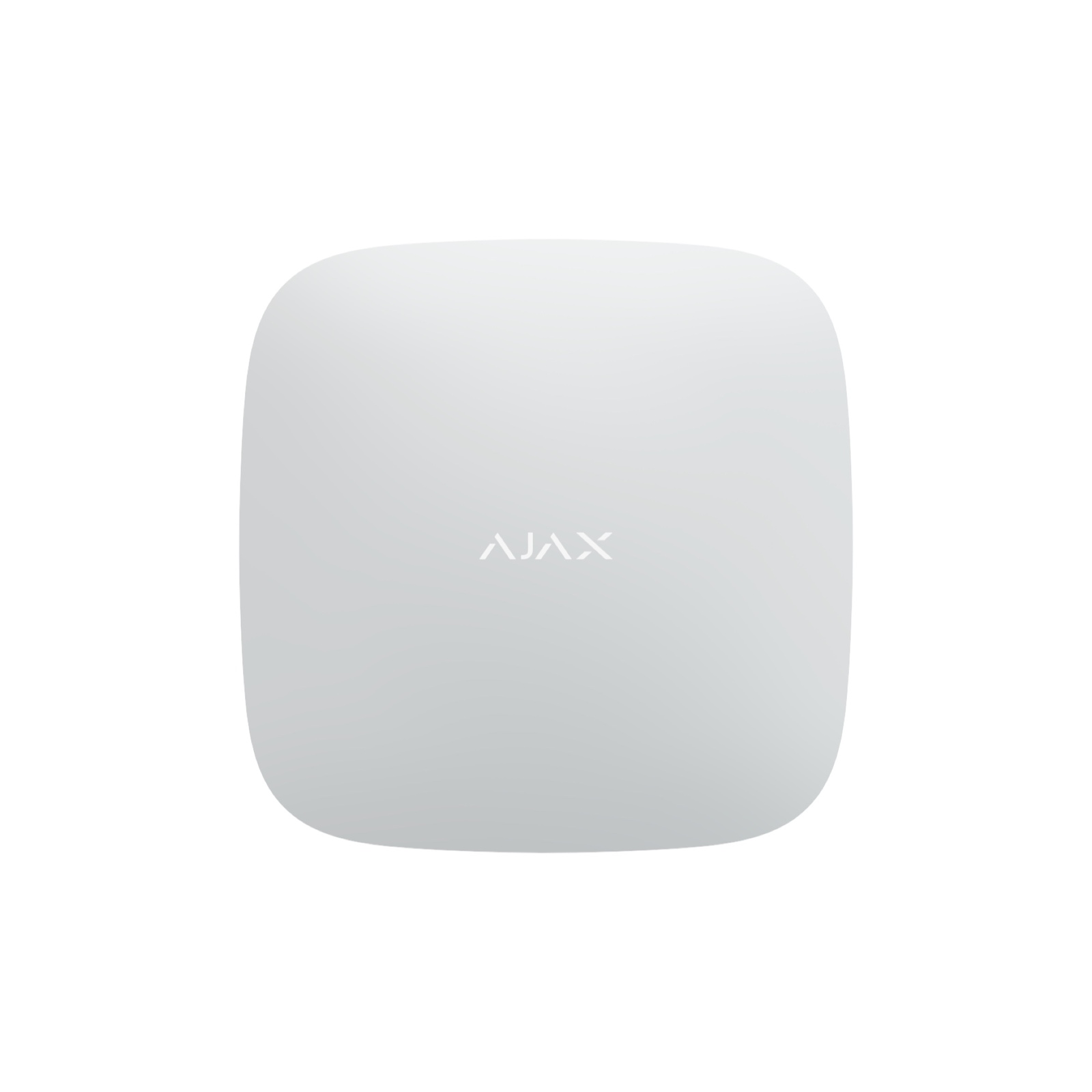

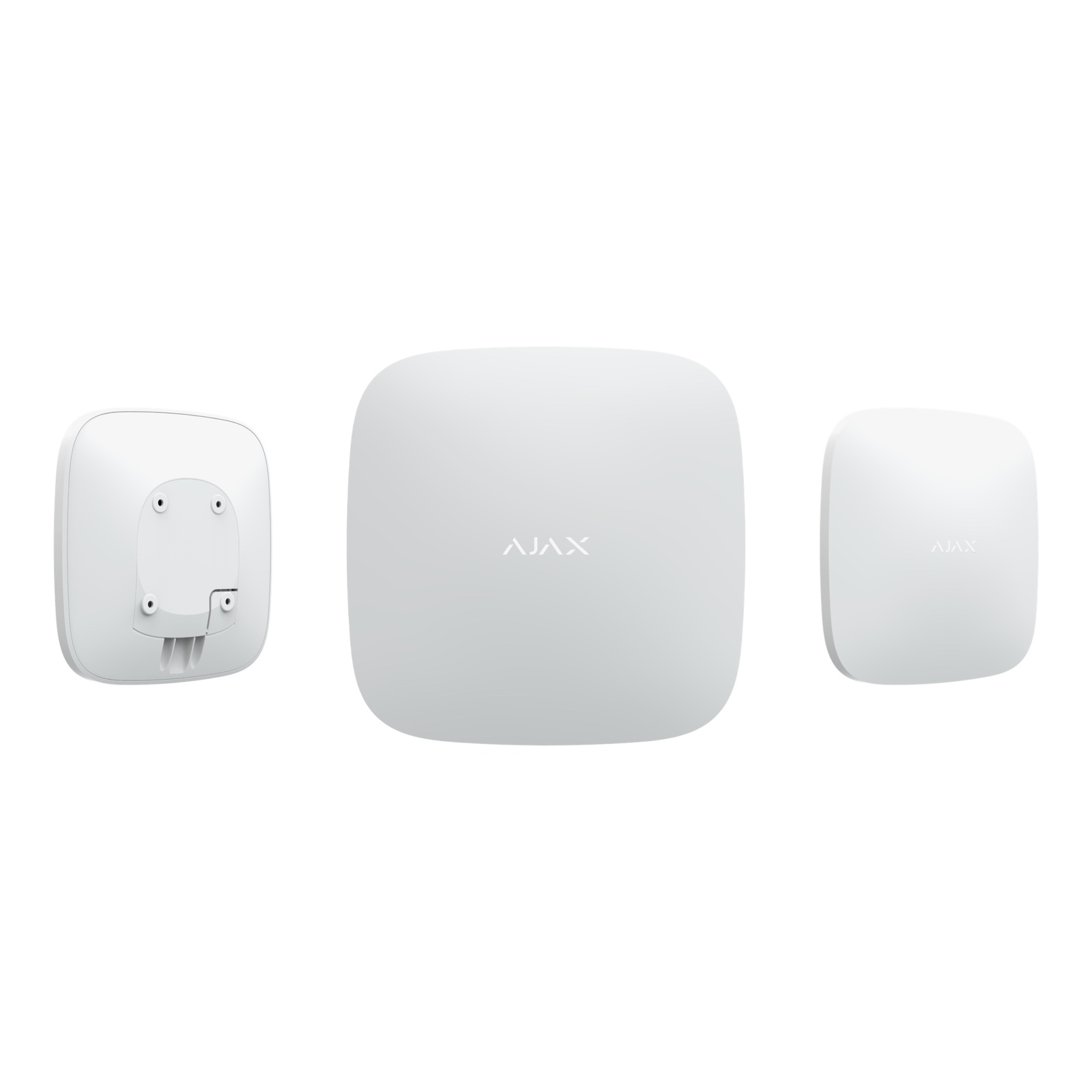

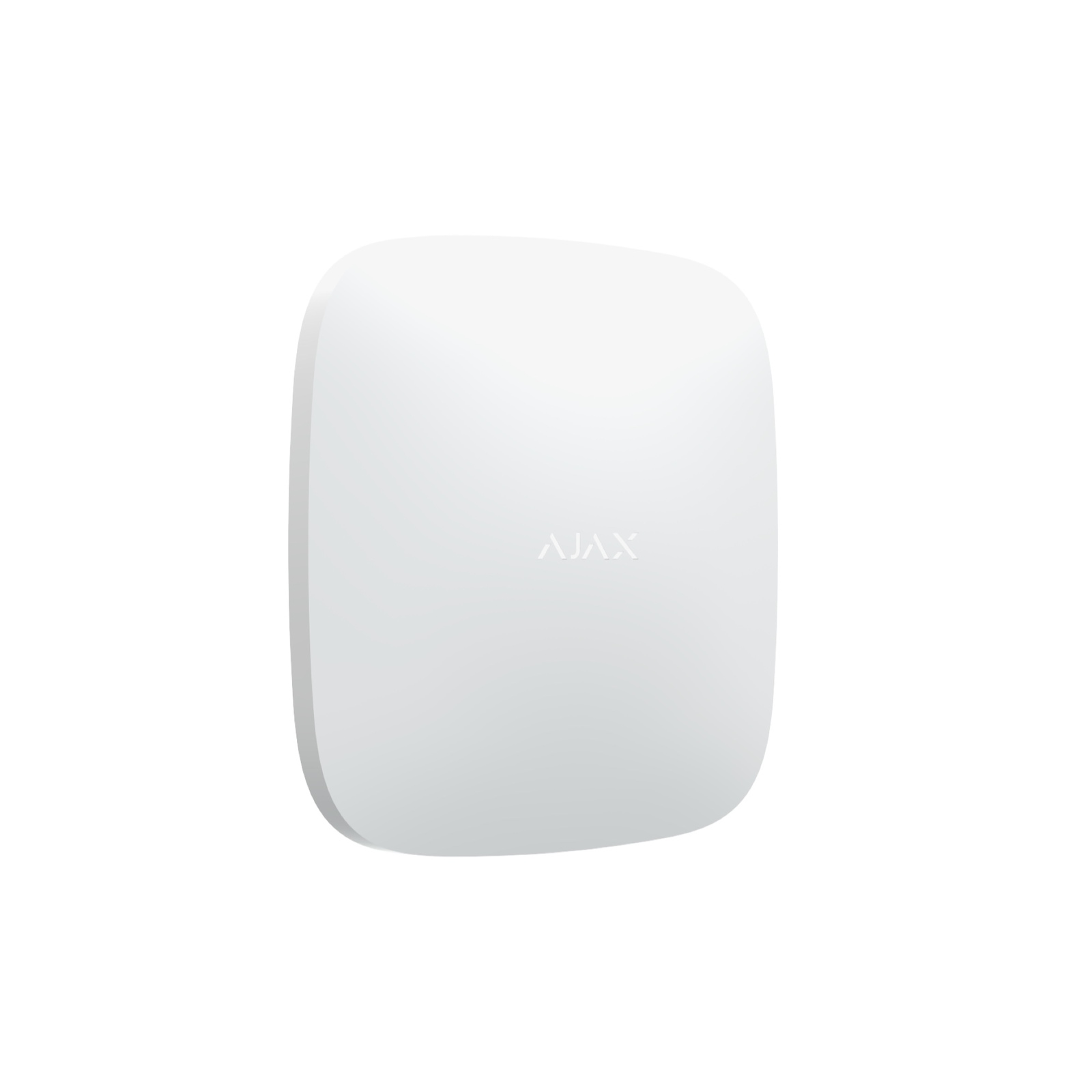

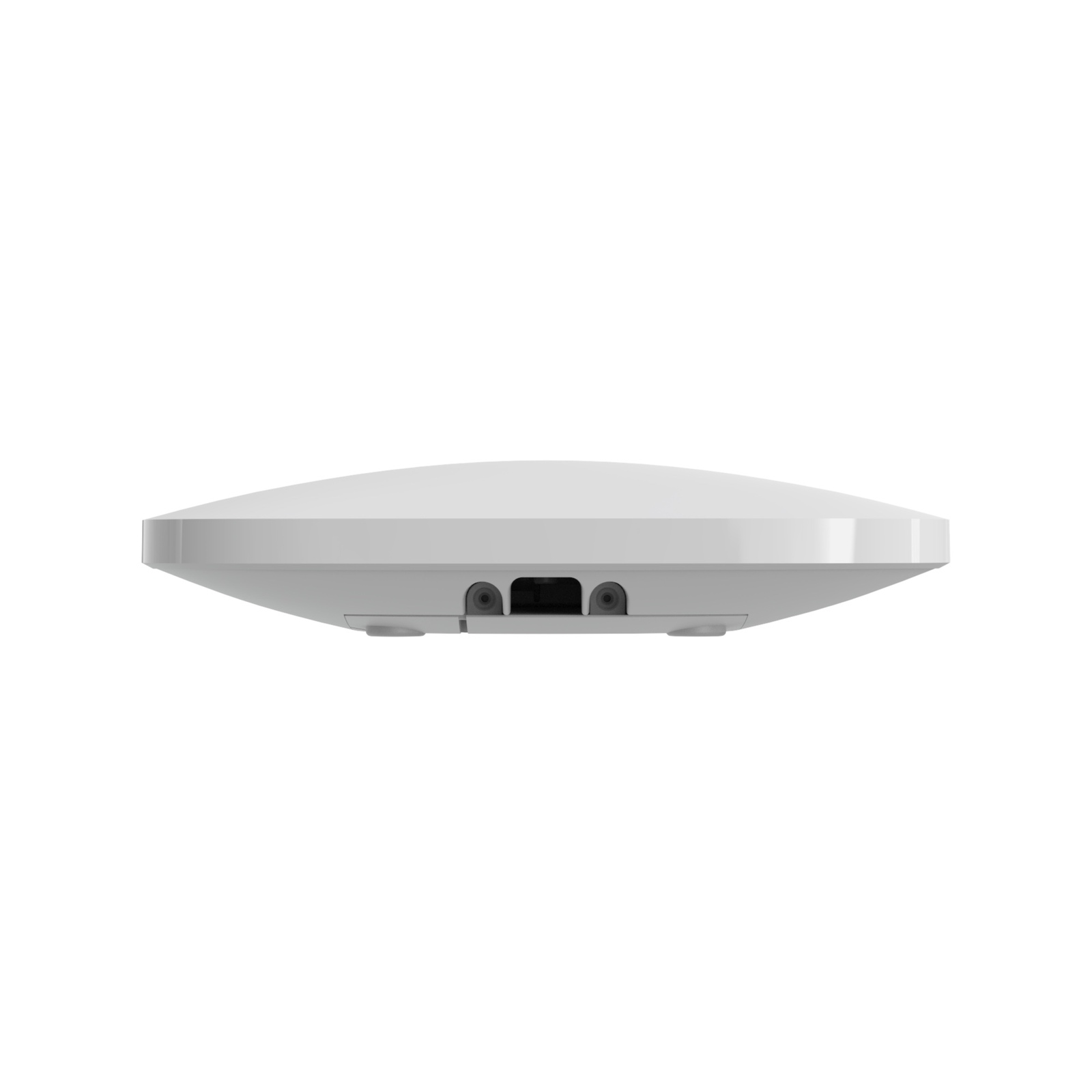

Ajax Hub 2 Plus (4G) White Wireless Alarm Control Panel with Photo Verification

Ajax Hub 2 Plus (4G) White - Advanced Wireless Security Control Panel

The Ajax Hub 2 Plus is the flagship control panel of the Ajax wireless security ecosystem, built for properties that cannot afford a lapse in communication. Combining Ethernet, Wi-Fi and dual-SIM cellular connectivity (2G/3G/4G), this white hub keeps monitoring stations and users informed even if one network path fails. It is designed to manage large residential, commercial and industrial sites, supporting photo verification, extensive device counts and fast automatic failover between communication channels.

Key Features

• Four independent communication channels - Ethernet, Wi-Fi and two SIM cards for 2G/3G/4G (LTE) connectivity, so the system stays online even during outages.
• Photo verification support for compatible MotionCam detectors, giving users and monitoring operators a visual snapshot to confirm real intrusions rather than false alarms.
• Long-range Jeweller radio protocol with a communication distance of up to 2,000 metres between the hub and connected devices.
• Large device capacity - supports up to 200 Ajax devices, 200 users, 25 security groups and up to 100 cameras or DVRs in one installation.
• Powerful onboard hardware running OS Malevich, with a processor reported to be several times faster and offering substantially more flash memory than the standard Hub 2, keeping the system responsive as it scales.
• Seamless automatic failover between channels, switching in seconds if a provider or SIM connection drops out.
• Backup battery operation to keep the panel running for extended periods during a mains power outage.

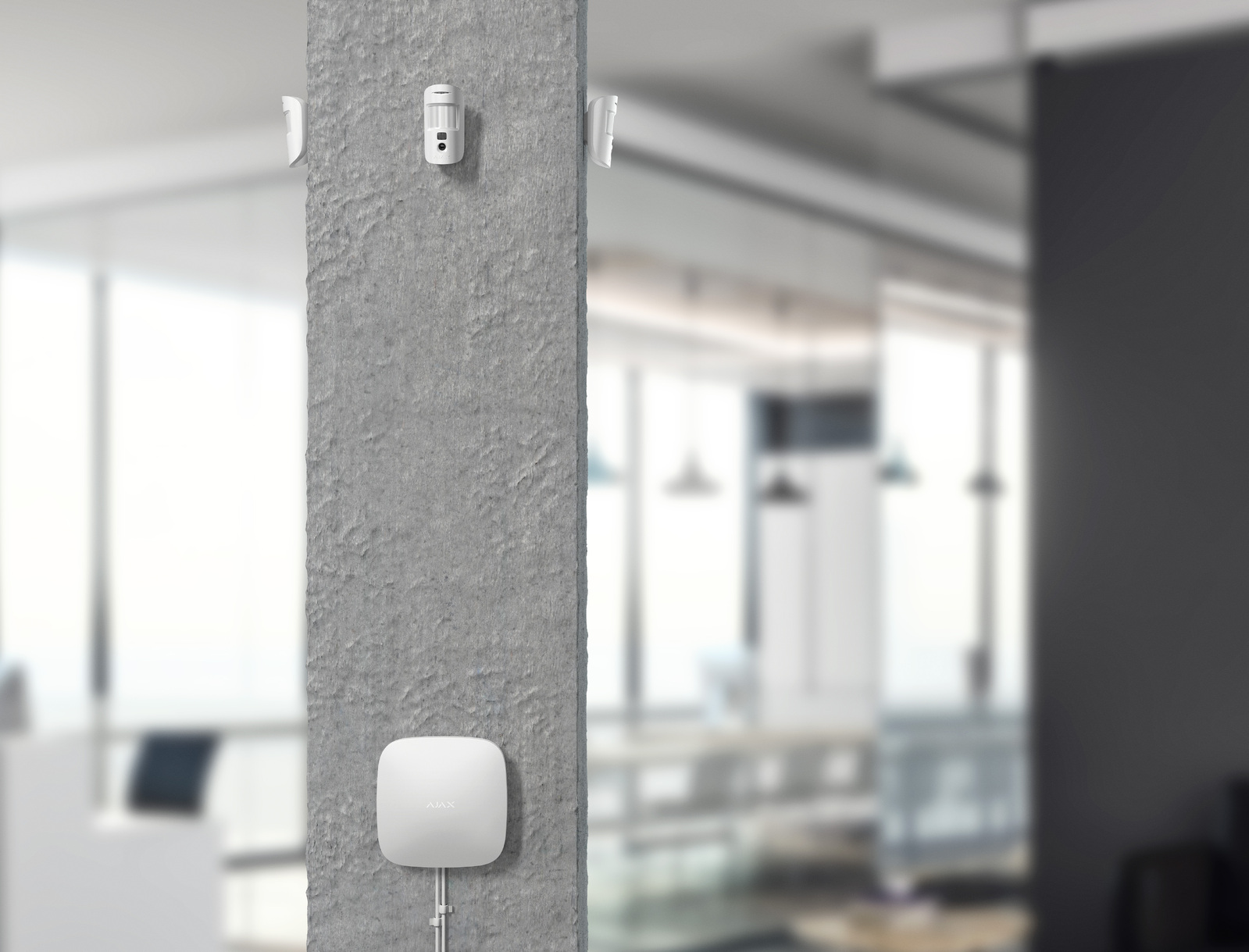

• Tamper-protected white enclosure designed for indoor mounting, with an alert triggered if anyone attempts to remove or force open the unit.

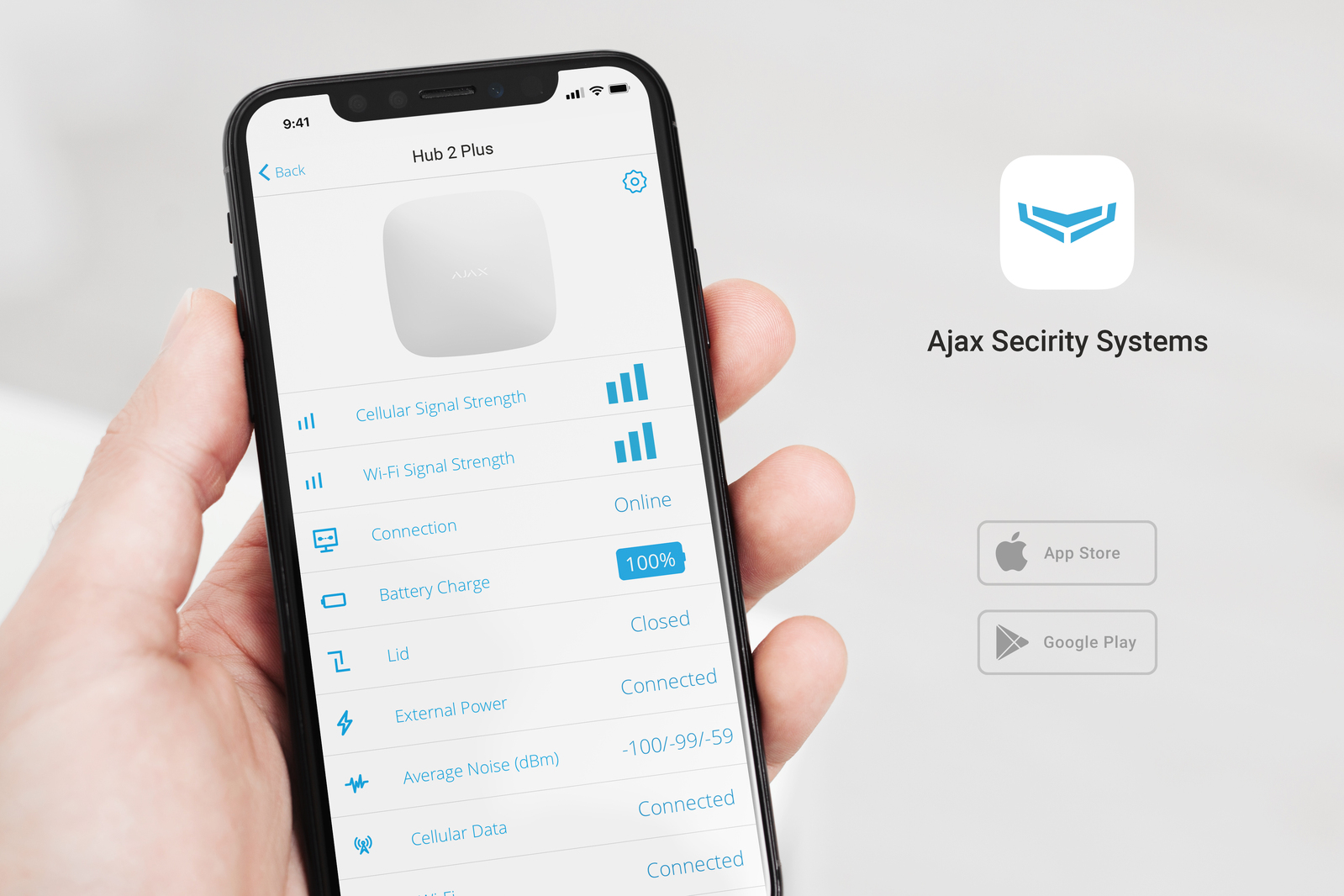

• Full app-based management via Ajax apps for iOS, Android, macOS and Windows - no physical keypad required.

Built for Demanding, Multi-Zone Properties

Because it can coordinate up to 200 devices across 25 security groups, the Hub 2 Plus suits larger homes, offices, retail premises, warehouses and multi-building sites where a single wireless network needs to cover several protected zones. Integrators use it where continuous connectivity is essential - for example sites without reliable fixed-line internet, or locations where a monitored alarm response depends on guaranteed signal delivery. Combined with MotionCam detectors, it lets monitoring staff or homeowners visually confirm an alarm event before dispatching a response, reducing false call-outs.

What's in the Box

• Ajax Hub 2 Plus (4G) control panel, White

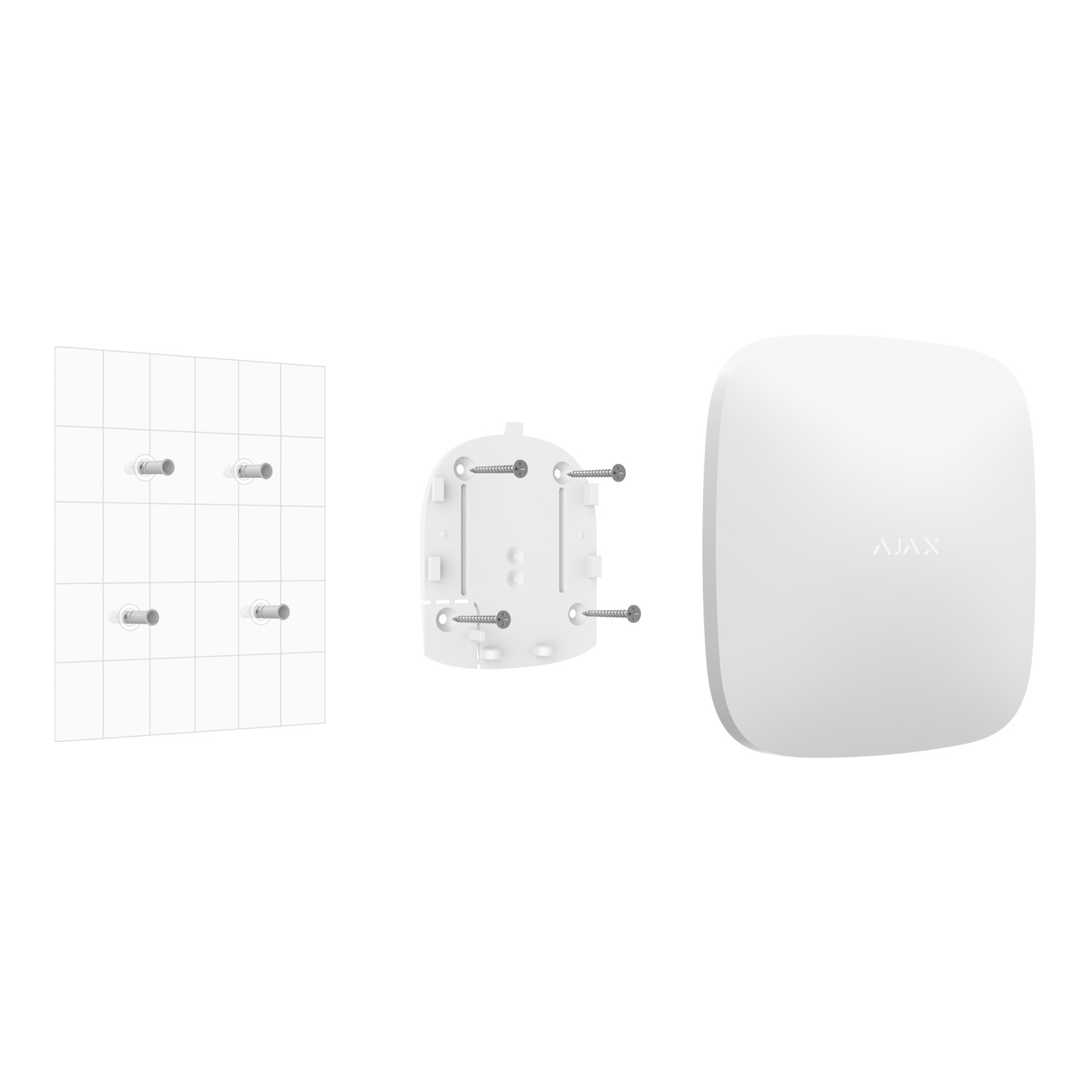

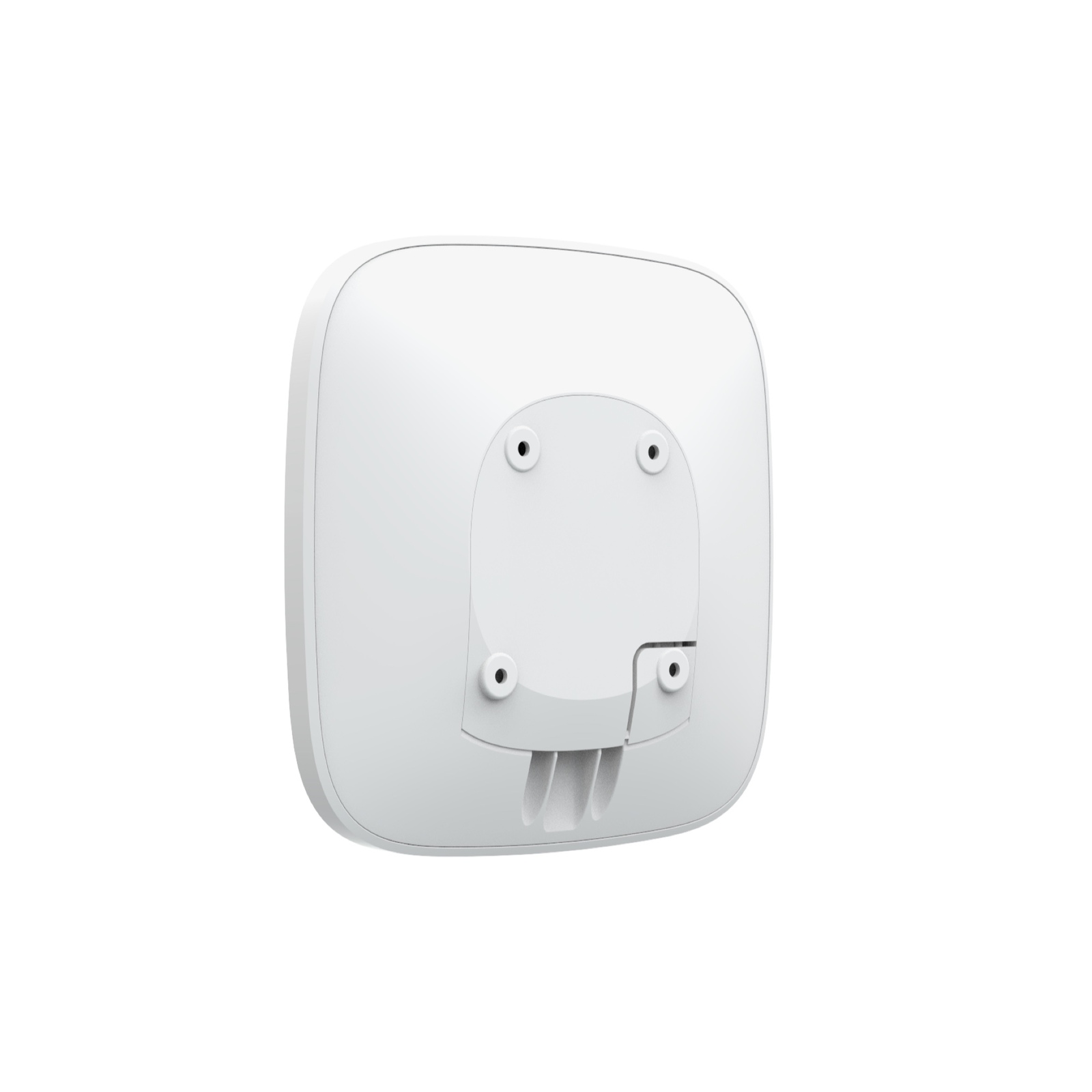

• SmartBracket mounting panel with tamper perforation
• Mounting screws and installation kit
• Power cable
• Quick start guide

Frequently Asked Questions

Does the Hub 2 Plus need a SIM card to work?
A SIM card is optional but recommended as a backup path. The hub can operate over Ethernet and/or Wi-Fi alone, though using all four channels together provides the most reliable connection to Ajax Cloud.

Can this hub send photos during an alarm?
Yes. When paired with compatible MotionCam detectors, the Hub 2 Plus can receive and forward alarm photos to users and monitoring stations for visual confirmation of an event.

How many devices can be connected to one Hub 2 Plus?
The panel supports up to 200 Ajax devices, organised into as many as 25 separate security groups, making it suitable for larger or multi-zone installations.
