Ajax Superior KeyPad Outdoor Fibra Graphite Wired Access Keypad

Ajax Superior KeyPad Outdoor Fibra (Graphite)

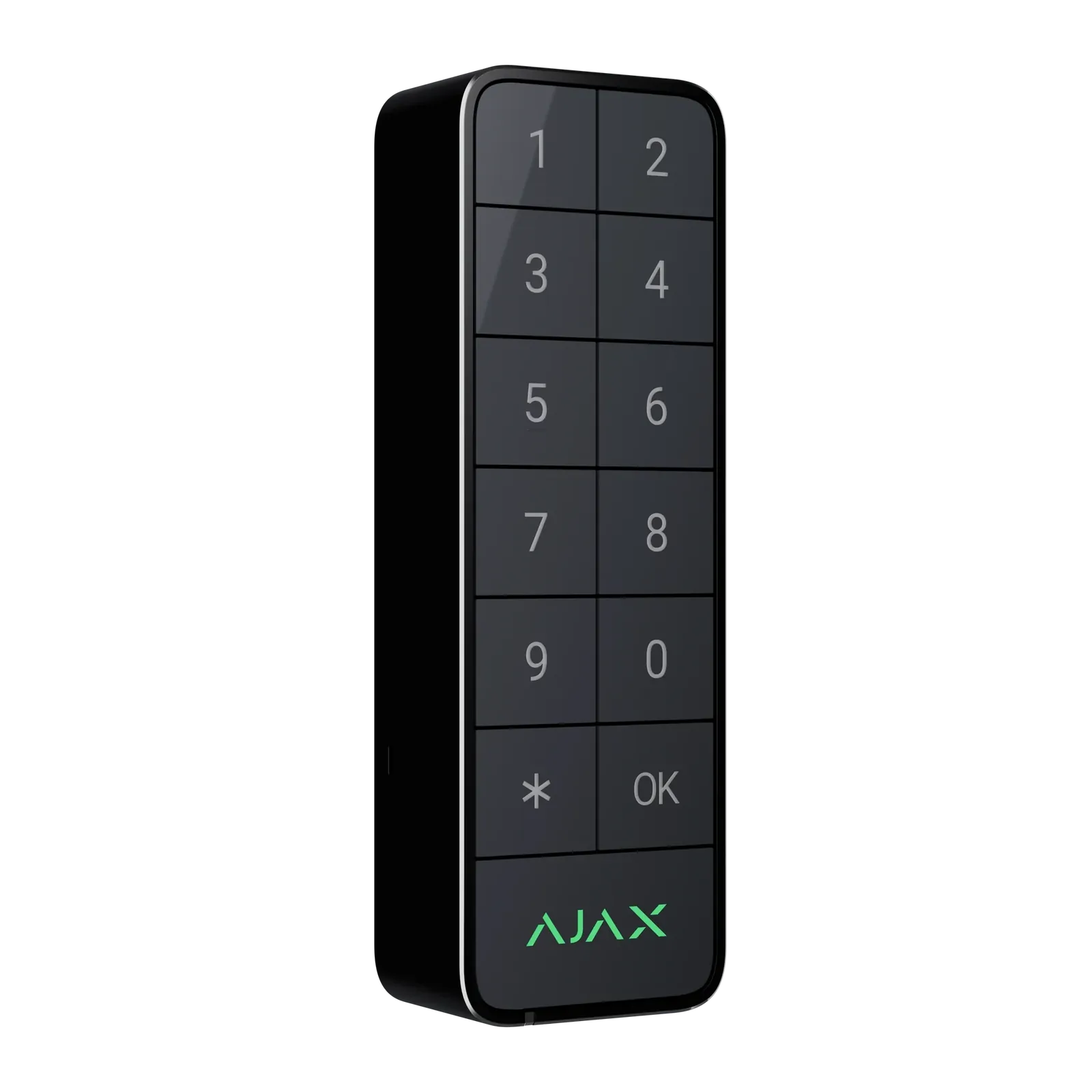

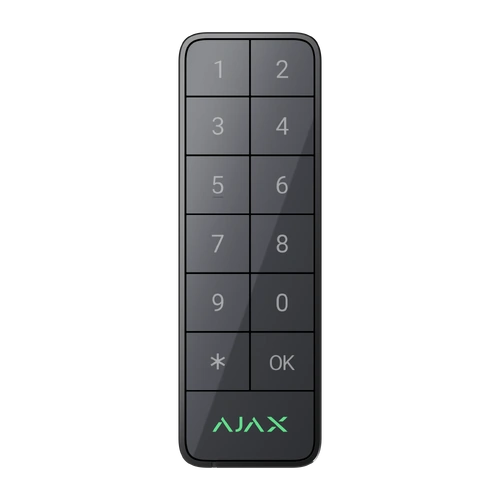

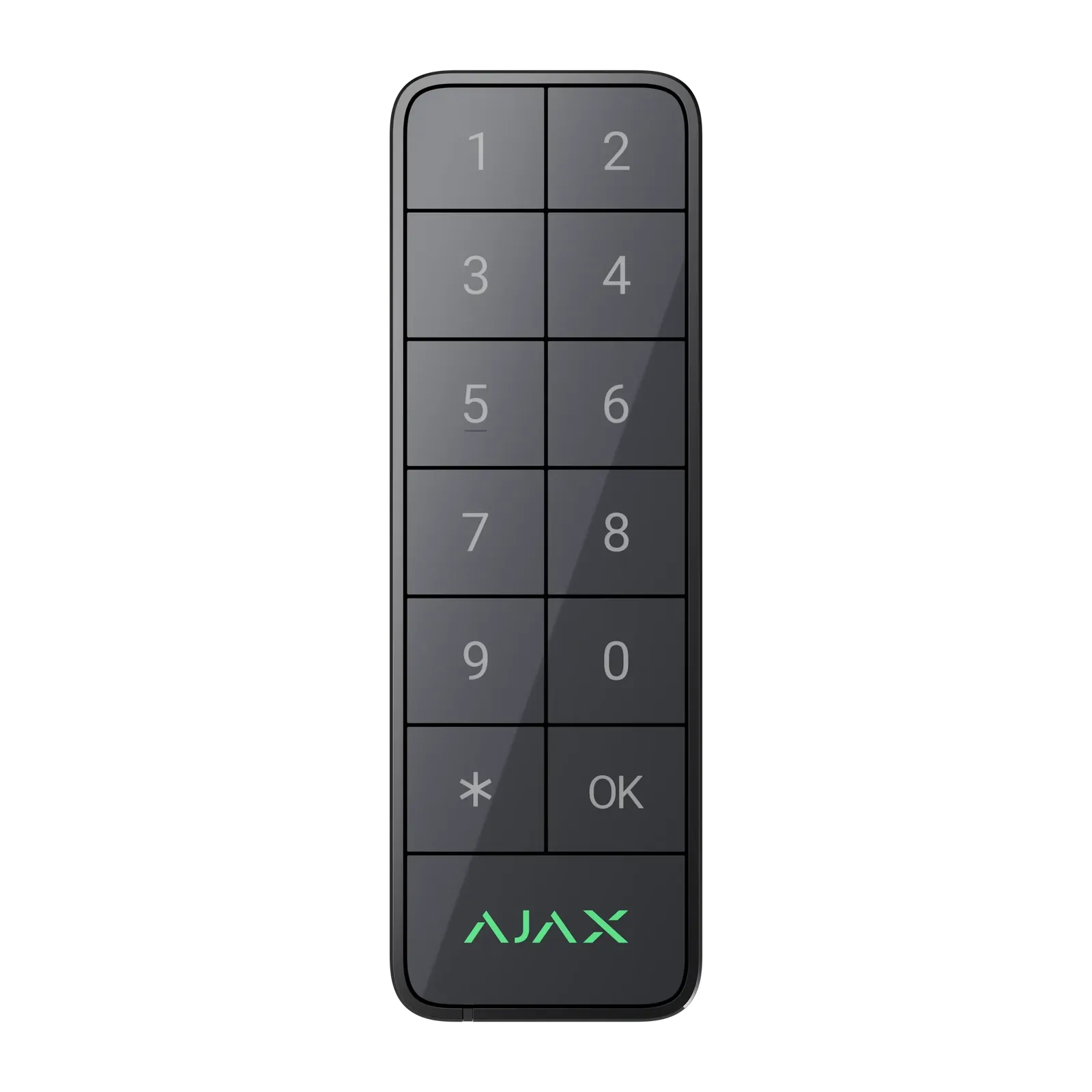

The Superior KeyPad Outdoor Fibra is a professional-grade wired control keypad built for sites that need reliable arming, disarming, and automation control in tough environments. Finished in graphite, it connects to an Ajax hub over the secure wired Fibra protocol and lets users identify themselves with a card, key fob, smartphone, or PIN code. As part of Ajax's Superior product line, it is intended for supply and installation through accredited Ajax partners on commercial, industrial, and premium residential sites.

Key Features

• Multiple authentication methods: unlocks and arms the system using Pass cards, Tag key fobs with DESFire encryption, a paired smartphone over Bluetooth Low Energy, or a personal PIN code.
• Built for outdoors and indoors: the enclosure is rated for use in both environments and is designed to keep working through rain, snow, and temperature swings.
• Tough, weatherproof housing: the keypad carries IP66 water and dust resistance and IK08 impact protection, so it stands up to accidental knocks and harsh weather.
• Glove-friendly mechanical buttons: large mechanical buttons with a resilient press mechanism allow easy and fast access, even in gloves and mittens.
• Dual configurable modes: the keypad features two operating modes, primary and secondary, each independently configurable, switching between them with a long press of the OK button.
• Flexible functions per mode: each mode can be set to arm/disarm the site or groups, trigger automation scenarios, or start an entry/exit delay for bypass-style use.
• Dedicated Function button: lets you manage the security of an entire site, separate groups, or Night Mode from one device, and can additionally be configured as a panic button or to mute fire alarms.
• Anti-tamper protection: the enclosure has two tamper buttons that alert when the keypad is detached from the surface or removed from the mounting panel.
• Constant remote supervision: the hub maintains two-way communication with Ajax Cloud, checking device status every minute and sending a notification if the keypad develops an issue.

Reliable Access Control for Demanding Sites

Because it is wired via Fibra rather than relying on radio alone, this keypad suits entrances, gates, warehouses, loading docks, and other exposed access points where a robust, tamper-resistant control point is required. Security teams can issue different authentication methods to staff, visitors, or delivery personnel, while managers retain the ability to switch entire zones between armed, disarmed, or night modes from a single wall-mounted unit. The optional two-factor mode, requiring both a card/fob/phone and a code, adds an extra layer of protection for higher-security applications.

What's in the Box

• Superior KeyPad Outdoor Fibra unit (Graphite)
• SmartBracket mounting panel
• Mounting screws and fixings
• Quick start guide

Frequently Asked Questions

Does this keypad work with any Ajax hub?
It is designed to operate within the Ajax ecosystem and communicates with a compatible Ajax hub over the wired Fibra protocol.

Can it be mounted outside?
Yes, the enclosure is rated for both indoor and outdoor installation and is built to withstand rain, snow, and temperature extremes.

Who can purchase and install Superior line devices?
Ajax Superior products are distributed exclusively through accredited Ajax Systems partners for sales, installation, and maintenance.
