Ajax Superior KeyPad Outdoor Fibra White Wired Access Keypad

Ajax Superior KeyPad Outdoor Fibra (White)

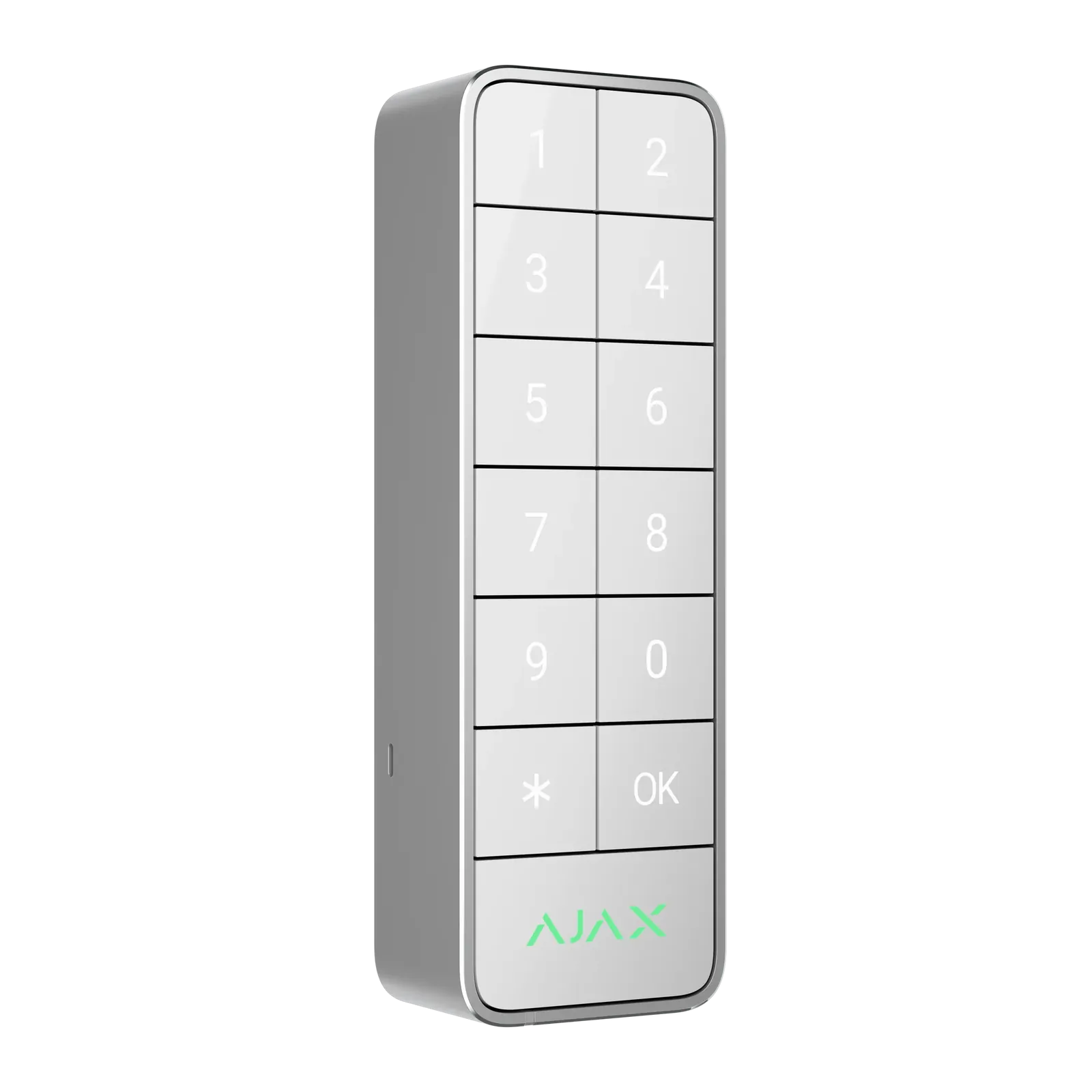

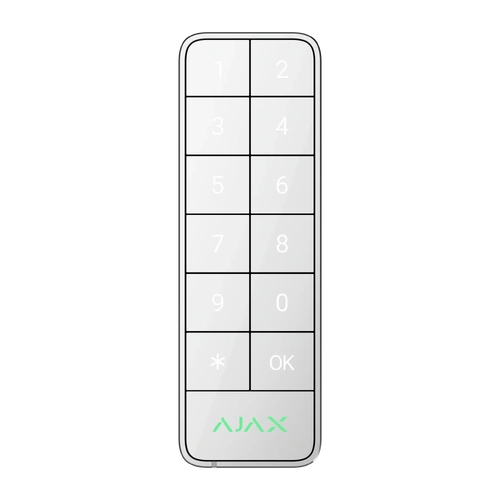

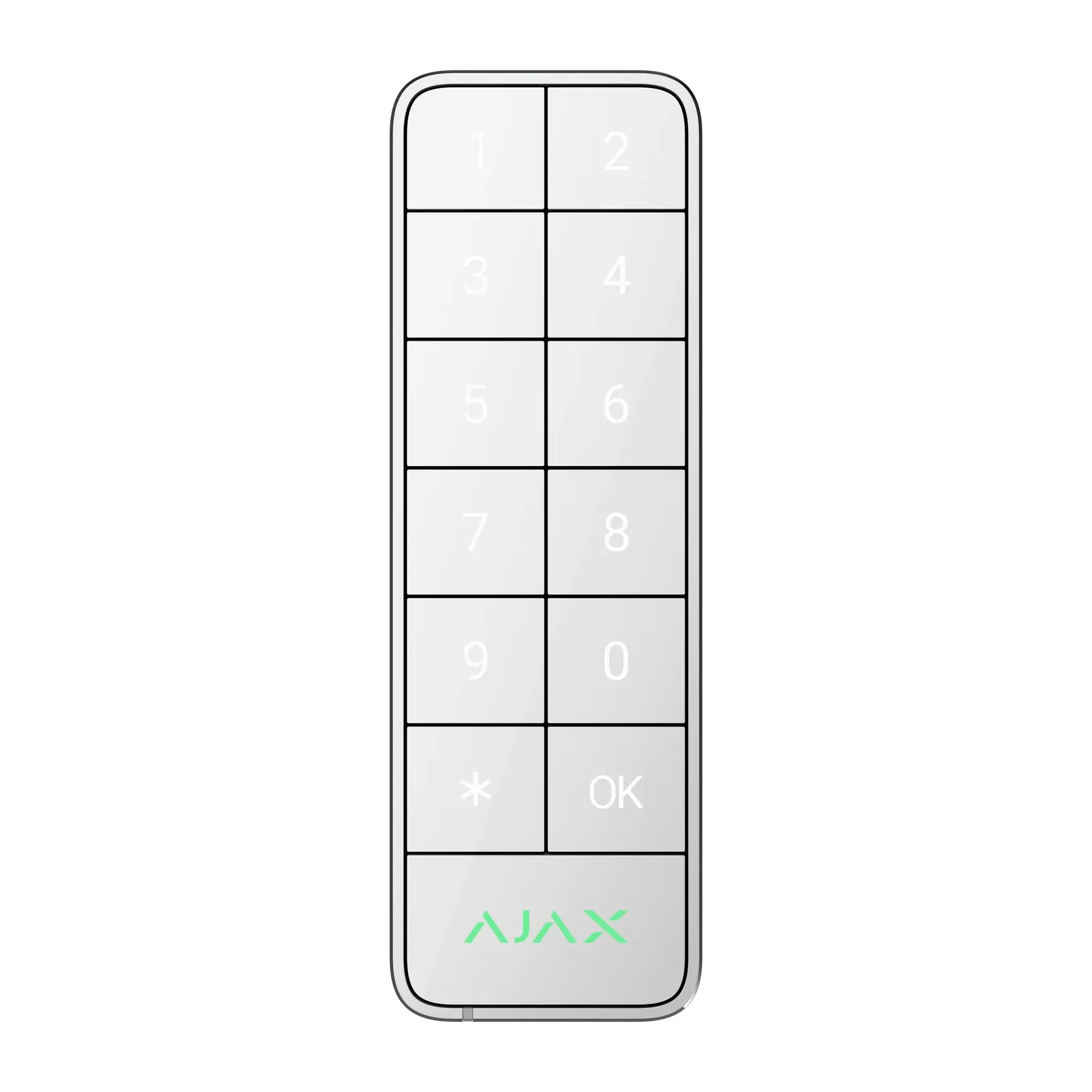

The Ajax Superior KeyPad Outdoor Fibra is a rugged, wired access keypad built for controlling an Ajax security system from entry points that are exposed to the weather. It authenticates users via encrypted Pass cards, Tag key fobs, Bluetooth-enabled smartphones, or PIN codes, and communicates with the hub over the secure Fibra wired protocol for a fast, interference-resistant connection. Designed and certified for both outdoor and indoor installation, it suits residential, commercial, and light industrial sites where a durable, weatherproof control point is required at a gate, entrance, or perimeter door.

Key Features

• Multiple authentication methods: arm, disarm, or manage the system using Pass cards, Tag fobs, a paired smartphone via Bluetooth Low Energy, or a numeric code.
• Secure card technology: supports DESFire encrypted cards and fobs, which combine 128-bit encryption with copy protection based on the ISO 14443 standard.
• Weatherproof, outdoor-rated design: built to operate reliably outdoors as well as indoors, with a sealed enclosure to keep out moisture.
• Large mechanical buttons: oversized, tactile buttons with a firm press action allow fast, accurate use even while wearing gloves.
• Configurable Function button: can be set up as a panic button or to silence fire alarms, adding an extra layer of flexibility to the keypad's role.
• Dual tamper protection: two hardwired tamper switches trigger an alert if the keypad is pried from the wall or removed from its SmartBracket mounting plate.
• Built-in buzzer and LED indication: a 60 dB buzzer and illuminated logo/buttons provide clear audible and visual feedback for arming, disarming, and alarm events.
• Primary and secondary operating modes: assign different functions (arm/disarm, automation control, or entry delay) to each mode and switch between them with a long press of the OK button.
• Fibra wired connectivity: exchanges data with the Ajax hub over a dedicated wired bus, with the system continuously supervising device status.

Where It's Used

This keypad is ideal for controlling access at outdoor gates, garages, warehouse entrances, and building perimeters where a weatherproof, tamper-resistant control panel is needed. Because it supports several authentication types, it works well for sites with multiple users of varying technical comfort, from staff who prefer tapping a card to those who use a smartphone app. The optional entry-delay bypass function also makes it useful as a secondary keypad near an outer door, giving occupants time to reach the main panel before the alarm triggers.

What's in the Box

• Superior KeyPad Outdoor Fibra unit (White)
• SmartBracket mounting panel
• Mounting screws and fixings
• Installation and quick start guide

Frequently Asked Questions

Can this keypad be installed outdoors permanently?
Yes. It is specifically designed and rated for continuous outdoor and indoor use, with a sealed enclosure to protect internal electronics from moisture.

Does it need a separate power supply?
No. The keypad is powered directly by the Ajax hub over the Fibra wired line, drawing a small current at a nominal 24V DC supply.

What hub is required to use this keypad?
It requires a compatible Ajax hub running a recent firmware version and is intended for use within the Superior product line, sold and installed exclusively through accredited Ajax partners.
