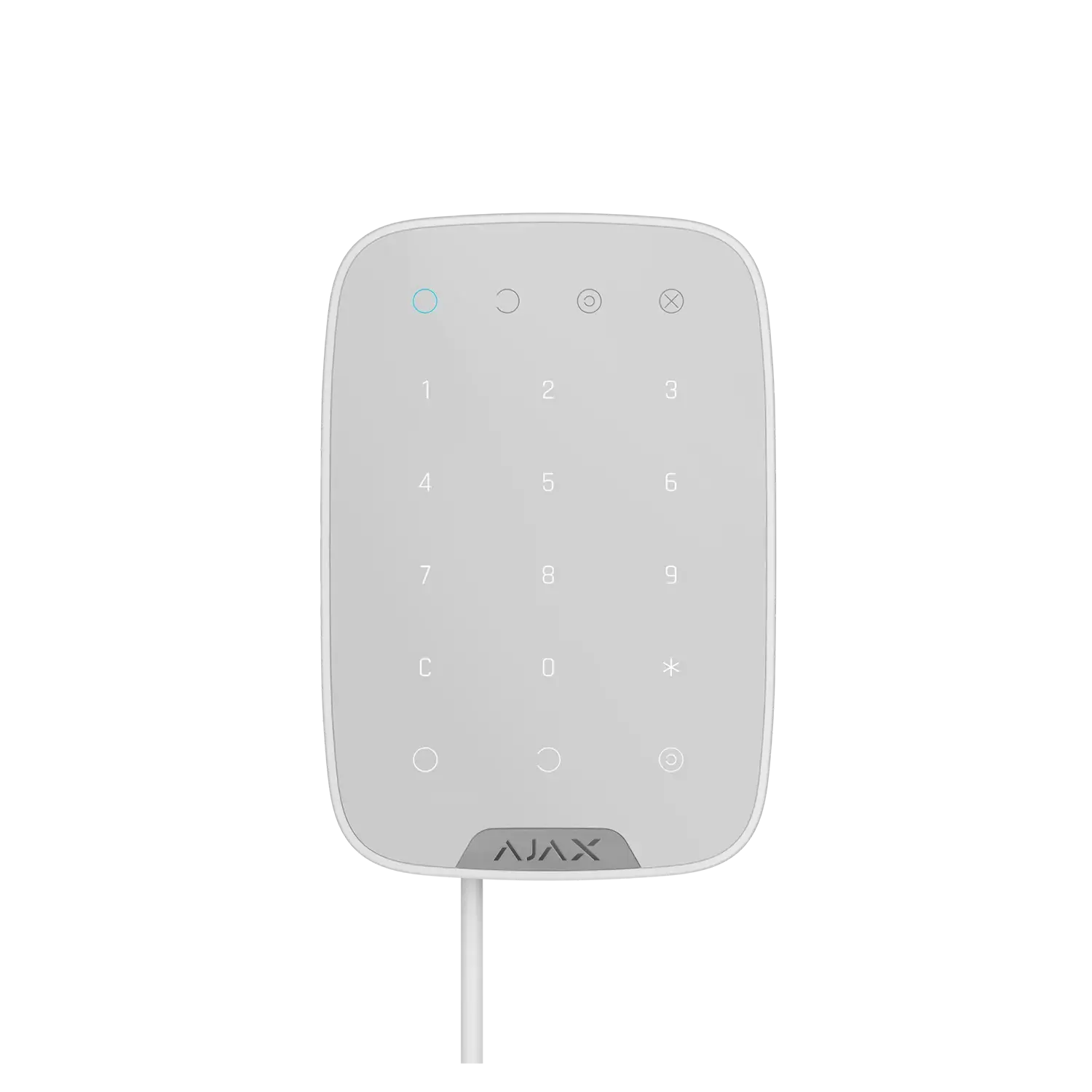

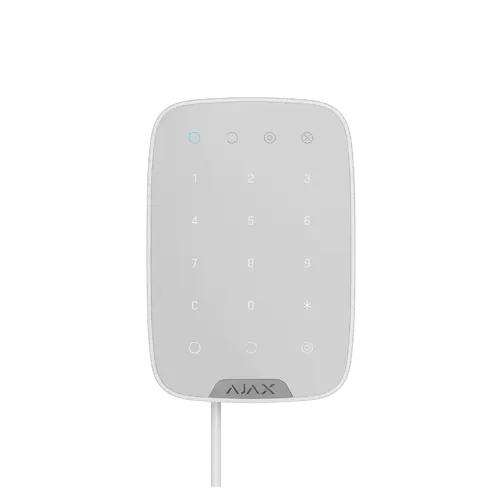

Ajax KeyPad Fibra White Wired Touch Keypad for Security Control

Ajax KeyPad Fibra White Wired Touch Keypad

The Ajax KeyPad Fibra is a wired touch-sensitive keypad built to arm, disarm, and manage an Ajax security system with speed and reliability. Finished in a clean white housing, it connects to the hub over Ajax's proprietary Fibra wired protocol, combining the stability of a cabled connection with the smart features usually found on wireless devices. It's designed for installers and end users who want a discreet, professional-grade control point at entry doors, offices, or reception areas.

Key Features

• Fibra wired protocol: Two-way encrypted communication with the hub over a dedicated cable run, offering strong resistance to interference and sabotage.
• Long cable range: Supports connection distances of up to roughly 2,000 metres from the hub when using standard U/UTP cat.5 cable.
• Flexible wiring topologies: Can be installed using Beam (radial), Ring, or Tree wiring layouts for easier integration into existing cabling.
• Multiple access methods: Accepts 4 to 6-digit personal, general, duress, and unregistered-user codes for flexible, logged access control.
• Duress code protection: Entering a duress code silently signals an emergency to the monitoring company while appearing to disarm normally.
• Anti-tamper protection: Built-in tamper detection alerts if the keypad is removed from its mounting panel or pried off the wall.
• Brute-force lockout: Automatically locks for a configurable 3 to 180 minutes after repeated incorrect code entries, with instant notification of the attempt.
• LED status indication: Clear backlit number buttons and status LEDs show arming state and system feedback at a glance.
• Low power draw: Runs directly off the hub's power supply, simplifying installation and reducing cabling requirements.

Ideal Applications

This keypad suits homes, offices, retail premises, and warehouses that already use an Ajax wired Fibra security system and need a dependable, tamper-resistant control point near an entrance. Its wired design makes it particularly well suited to environments where a permanent, interference-resistant connection is preferred over wireless keypads, such as commercial fitouts, multi-door sites, or installations with existing structured cabling.

What's in the Box

• Ajax KeyPad Fibra unit (white)
• SmartBracket mounting panel
• Mounting screws and hardware
• Quick start guide

Frequently Asked Questions

Does the KeyPad Fibra need a wireless hub?
No. It communicates with the Ajax hub over a wired Fibra connection, so it requires a hub that supports Fibra wired devices.

Can I use both codes and cards with this keypad?
The standard KeyPad Fibra is primarily code-based; card and Tag/Pass authentication is available on related Fibra keypad models with built-in readers.

What happens if someone enters the wrong code repeatedly?
The keypad automatically locks for a set period and sends a tamper or lockout notification to the Ajax app, alerting users and the monitoring station.
