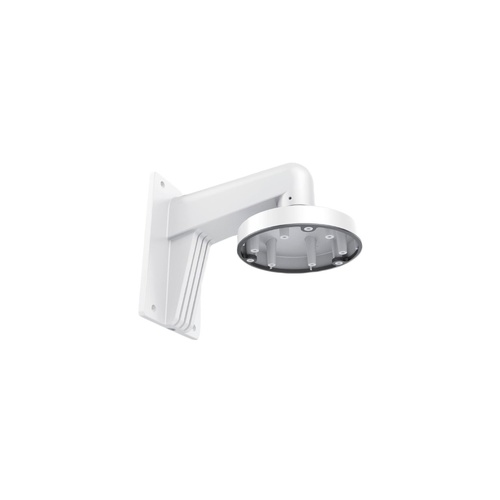

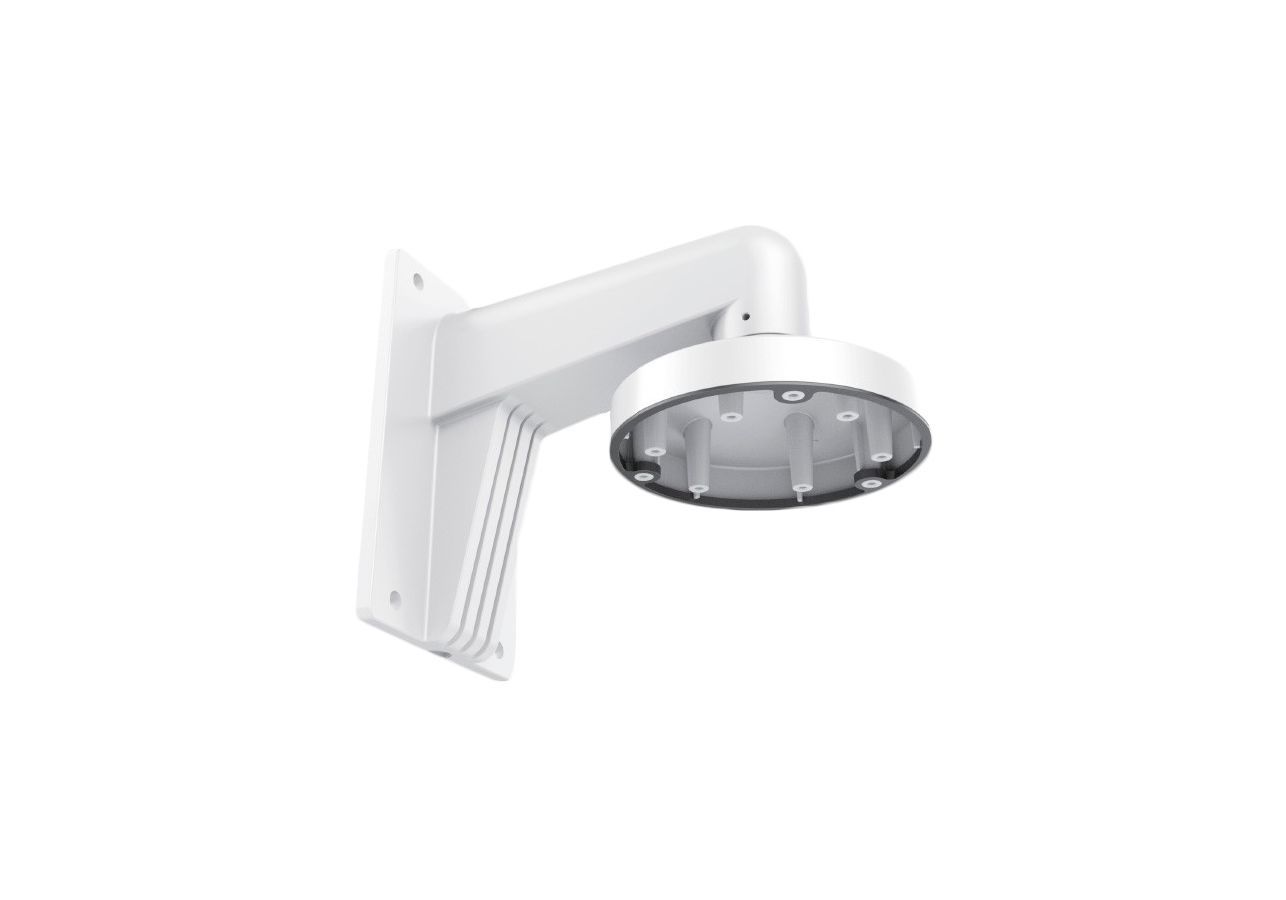

LTS LTB342-155 Aluminium Wall Mount Bracket for 155mm Camera Base

LTS LTB342-155 Aluminium Wall Mount Bracket (155mm Camera Base)

The LTS LTB342-155 is a purpose-built wall mount arm engineered for LTS Platinum series IP cameras that use a 155mm mounting base. Constructed from durable aluminium alloy, this bracket offers a clean, low-profile way to install compatible dome and turret cameras on interior or exterior walls while keeping cabling neatly hidden from view.

Key Features

• Aluminium alloy build for long-term corrosion resistance in both indoor and outdoor environments
• Designed to suit LTS Platinum CMIP72xx and CMIP78xx series IP cameras fitted with a 155mm base
• Discrete internal cable routing conceals wiring inside the bracket arm for a tidy, tamper-resistant finish
• Compact base footprint of 155mm (diameter) x 70mm (height) keeps the fitting unobtrusive on the wall
• Overall assembled dimensions of 240mm (L) x 155mm (W) x 184mm (H) for a stable, rigid mount
• Compatible with the optional LTB-342-BB back box for surface cable management on solid walls
• Finish matches LTS Platinum camera housings for a coordinated installed appearance
• Straightforward wall-fixing hardware supports quick, low-tool installation
• Suitable for commercial, retail, and residential CCTV projects

Where It's Used

This bracket is intended for installers and integrators deploying LTS Platinum dome or turret cameras that specify a 155mm base fitting. It is commonly used on external building walls, eaves, and covered walkways where a discreet cable path and a solid, weather-resistant mount are required. Because it is purpose-matched to specific LTS camera bases, it helps ensure a secure fit without the gaps or wobble that can occur with generic universal brackets.

What's in the Box

• 1 x LTB342-155 wall mount bracket arm
• Wall-fixing screws and anchors
• Cable entry cover/cap

Note: the optional LTB-342-BB back box for concealed cable termination is sold separately.

Frequently Asked Questions

Which cameras does the LTB342-155 fit?
It is designed for LTS Platinum IP cameras in the CMIP72xx and CMIP78xx series that use a 155mm mounting base, such as models in the CMIP72 and CMIP78 ranges.

Does the bracket include a back box for cable concealment?
No. For fully concealed cable entry into a wall cavity or junction point, pair it with the optional LTB-342-BB back box.

Can this bracket be used outdoors?
Yes, its aluminium alloy construction is suited to outdoor installation as well as indoor mounting.

Additional Resources

• LTS Camera Brackets Summary Chart
