LTS Platinum 6MP IR Motorised Varifocal Dome IP Camera - CMIP7263NW-SZ

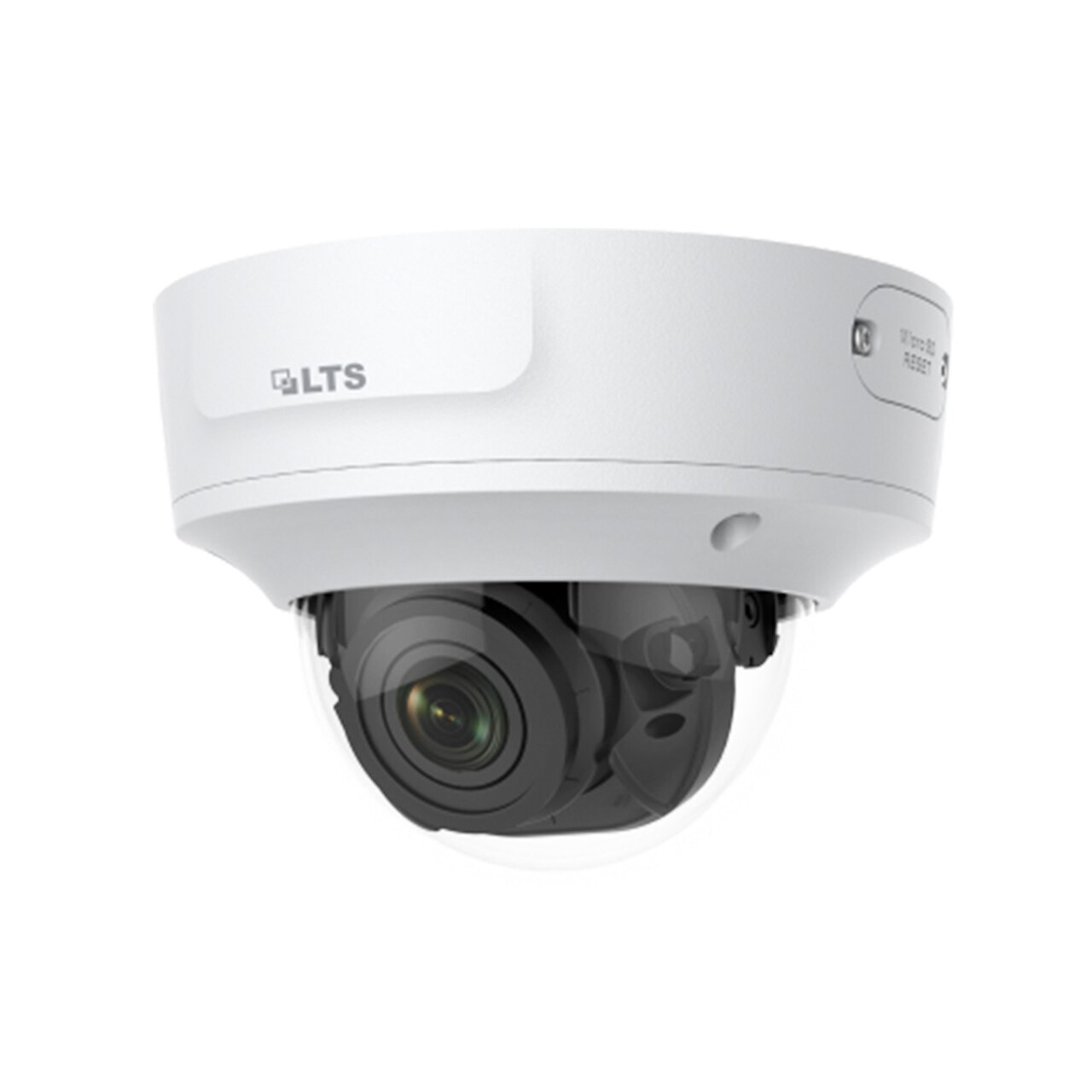

LTS Platinum CMIP7263NW-SZ 6MP Motorised Varifocal Dome IP Camera

The CMIP7263NW-SZ is a 6-megapixel outdoor dome network camera from the LTS Platinum series, built for professional-grade perimeter and facility surveillance. It combines a motorised 2.8-12mm vari-focal lens with strong low-light performance, AI-based human and vehicle detection, and a rugged IP67/IK10 housing suited to demanding outdoor installations. Please note this model has reached end-of-life and has been superseded by the LTS CMIP7263W-SDZ, which offers an extended 4.3x optical zoom range in the same form factor.

Key Features

• 6.0MP sensor delivering up to 3200 x 1800 resolution at 20fps for crisp, detailed footage
• Motorised 2.8-12mm vari-focal lens with remote zoom and focus adjustment, covering a wide field of view from roughly 106° down to 32° horizontally
• Ultra-low-light rated to 0.005 lux at F1.6 with AGC enabled, for usable colour imaging in near-dark conditions
• Matrix IR array delivering effective night vision to approximately 40m at 850nm
• H.265 and H.265+ compression (Profile S/G) to reduce bandwidth and storage requirements
• 120dB true wide dynamic range, backlight compensation, and 3D digital noise reduction for challenging light conditions
• Onboard AI analytics with smart human and vehicle classification to cut down false alarms
• MicroSD card slot supporting up to 256GB of local storage for edge recording
• IP67 weatherproof and IK10 vandal-resistant rated housing, powered via 12VDC or 802.3af PoE (12.5W)

Built for Reliable Outdoor Monitoring

This dome camera is well suited to entry points, car parks, loading docks, and building perimeters where both wide coverage and fine detail are needed. The motorised lens allows installers to fine-tune the field of view remotely without physically adjusting the camera, while the vandal-resistant housing and weatherproof rating make it a dependable choice for schools, retail sites, warehouses, and commercial premises exposed to the elements or public access.

What's in the Box

• CMIP7263NW-SZ dome camera unit
• Mounting bracket and base plate
• Mounting screws and wall anchors
• Quick installation guide
• Drill template

Frequently Asked Questions

Is the CMIP7263NW-SZ still available to purchase?
This SKU is end-of-life. Stock may be limited, and it has been officially replaced by the LTS CMIP7263W-SDZ, which shares the same 6MP resolution but adds a longer 4.3x optical zoom range.

Does this camera support Power over Ethernet?
Yes, it can be powered via 802.3af PoE (approximately 12.5W) or a standalone 12VDC power supply.

What is the maximum storage capacity supported?
The camera accepts a microSD card of up to 256GB for onboard video storage.
