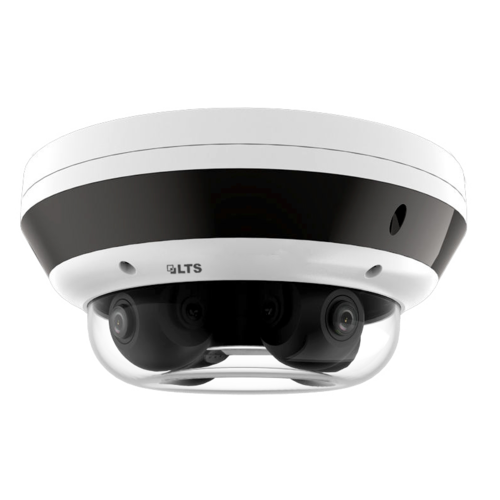

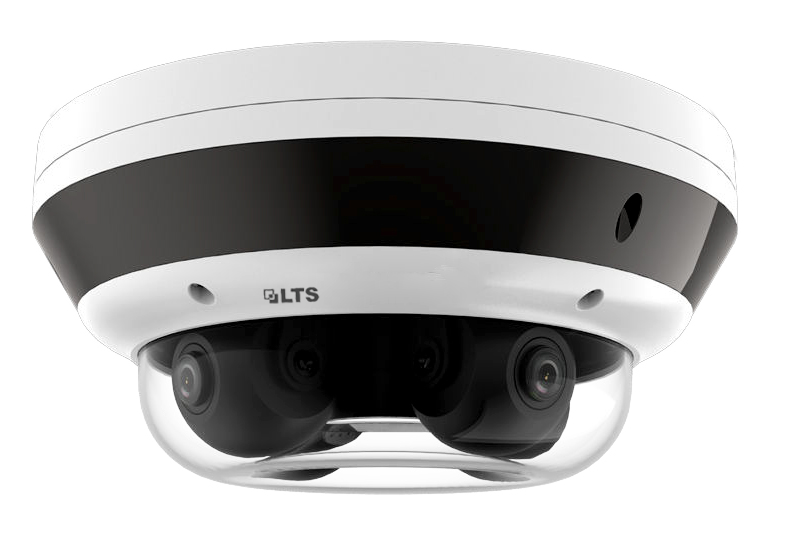

Multi-Lens IP Camera - Compact

CMIP7553W4-SZ8

Please login or register to view pricing.


Calculate Shipping



Free pick-up from store - $0.00
Free Pickup from 422 Stoney Creek Road, Kingsgrove NSW 2208 between (9am-5pm)

1/2.7" Progressive Scan CMOS, 2560 x 1920 @ 25fps, H.265, H.264, H.265+, H.264+, Up to 30m IR range, 4 Flexible lens, 120dB WDR, IP67, IK10



Camera Series Platinum Series
Camera Resolution Others
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications







Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.0125 Lux @ (F1.9, AGC ON); B/W: 0.0025 Lux @ (F1.9, AGC ON)

Shutter Speed

1 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR cut filter

WDR

120 dB

Angle Adjustment

Pan: -60° to 60°, tilt: 10° to 90°

Lens

Lens Type

Varifocal lens, 2.8 to 8 mm

Aperture

F1.9

Focus

Manual, semi-auto

FOV

Horizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°

Lens Mount

Φ14

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

2560 × 1920

Video Stream

3 defined streams

Main Stream

50Hz: 25fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

60Hz: 24fps (2560 × 1920, 2048 × 1536,1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (704 × 576, 640 × 480)

60Hz: 24fps (704 × 480, 640 × 480)

Third Stream

50Hz: 6fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60Hz: 8fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)



Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream support

H.265 Type

Main Profile

H.265+

Main stream support

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.264 encoding



Audio (-S)

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set



Smart Event

Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable

Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable

Scene change detection, audio exception detection, defocus detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Linkage Method

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Region of Interest

4 fixed regions and dynamic face tracking for each stream


Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping

Yes

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

SNR

≥52dB

Network

Network Storage

microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK



Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/ HTTPS, WSSE and digest authentication for ONVIF

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Client

NVMS V3, LTS Connect

Web Browser

IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11





Interface

Audio (-S)

1 input (line in), 1 output (line out), mono sound

Communication Interface

1 RJ45 10M/100M/1000M Ethernet port; built-in RS232

1 RS-485 interface (half duplex, Pelco-P, Pelco-D, self-adaptive)

Alarm (-S)

2 inputs, 2 outputs (max. 24 VDC, 1A)

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

General

Firmware Version

V5.5.32



Web Client Language

32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, 3 streams, heartbeat, mirror, privacy masks

Reset

Reset via reset button on camera body, web browser and client software

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)



Power Supply

12 VDC± 20%, reverse polarity protection; three-core terminal block 24 VAC ± 20%;

PoE (802.3at, class 4)



Power Consumption and Current

12 VDC, 1.8 A, 22 W

24 VAC, 1.4 A, 22 W

PoE (802.3at, 42.5 to 57 VDC), 0.44 to 0.33 A, 19 W, class 4

Material

Bubble & IR cover: plastic, camera: metal

Dimensions

Camera: Φ250 × 113 mm (9.8″ × 4.4″)

Package: 336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″)

Weight

Camera: 2.125 kg (4.7 lb); with package: 3.899 kg (8.6 lb)

Approval



EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,

EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:

2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.

(CMIP7553W4-SZ8)

SKU CMIP7553W4-SZ8
Brand LTS
