LTS Platinum ANPR Dual Camera Hybrid Bullet IP Camera

LTS Platinum ANPR Dual Camera Hybrid Bullet IP Camera

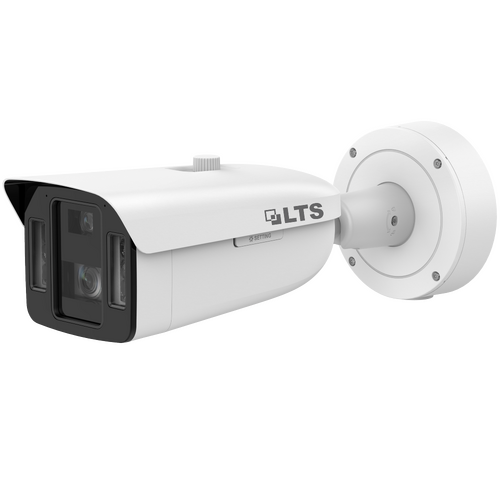

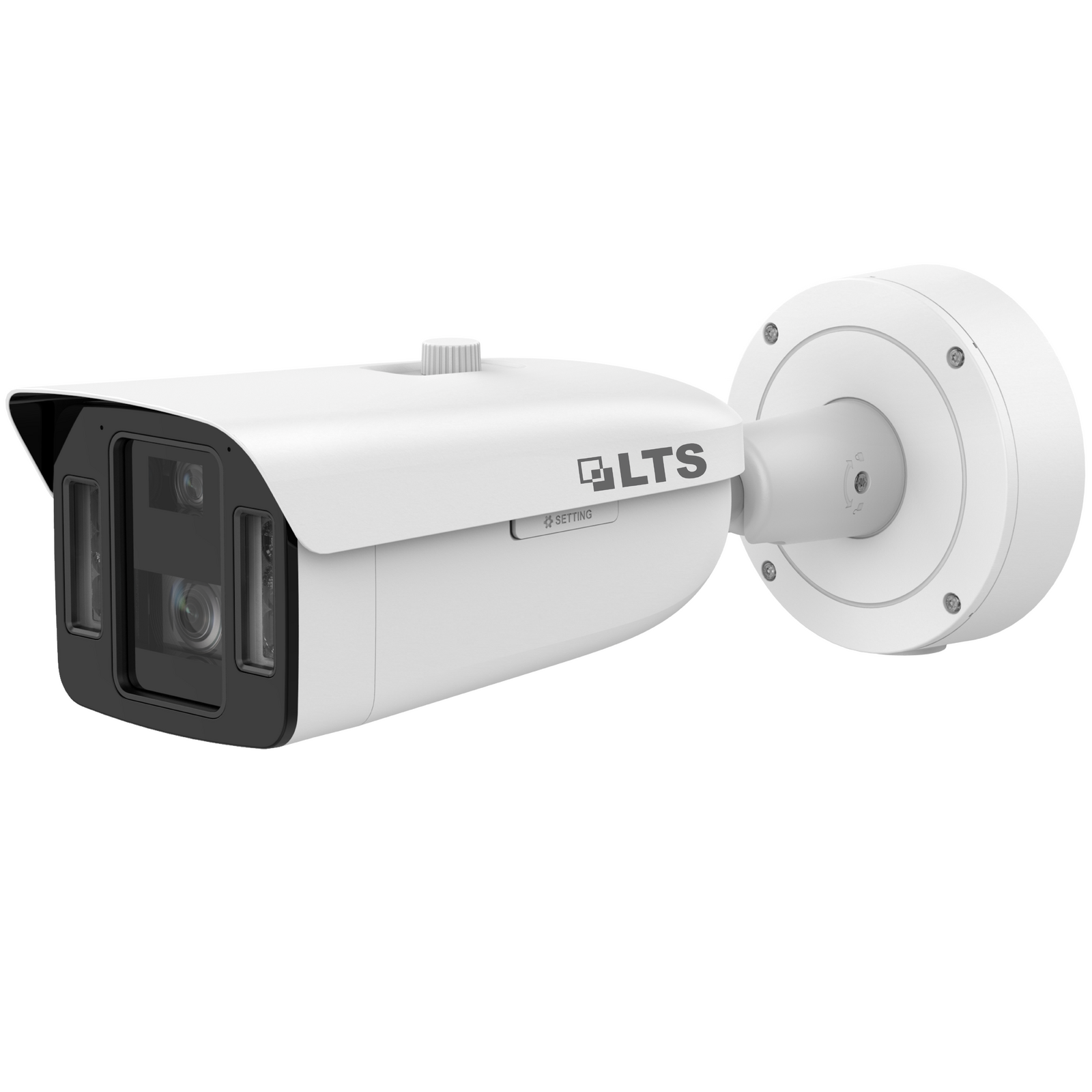

The LTS Platinum ANPR Dual Camera Hybrid (CMIP7C44WLPR-32R) combines two independent 4MP sensors in a single bullet housing to solve the classic trade-off between plate capture and scene context. One channel uses a motorised zoom lens tuned for reading number plates day or night, while the second channel runs a fixed 4mm Colour247 lens to keep the whole lane, driver, and vehicle in view. Both streams record to your NVR at the same time as separate camera channels, giving installers a single-drop solution for vehicle access points, boom gates, and perimeter driveways.

Key Features

• Dual 4MP sensors in one housing - a motorised zoom lens for plate capture and a fixed 4mm Colour247 lens for full scene overview.
• On-camera deep learning for number plate recognition, meaning no separate ANPR server is required.
• 140dB true WDR to manage harsh lighting typical of entry lanes, including headlight glare and strong backlight.
• Local plate database supporting up to 10,000 stored records for whitelist/blacklist style access matching.
• Relay output that can trigger a boom gate or barrier automatically when an authorised plate is detected.
• Independent dual-channel recording - each lens streams and records separately, using two channels on your LTS NVR.
• Flexible power options including PoE+ (802.3at) or 12VDC/24VAC via terminal block.
• Colour247-capable overview sensor that maintains colour imaging in very low light for continuous scene identification, not just plates.
• Compatible with Akuvox intercoms and the SmartPlus cloud platform for combined vehicle and visitor access control.

Built for Vehicle Access Points

This camera is designed for driveways, boom gates, car parks, and gated communities where installers need both a legible plate read and a usable scene image. By separating the zoom-in plate view from the wide overview, the CMIP7C44WLPR-32R removes the compromise inherent in single-sensor ANPR cameras, making it well suited to strata, industrial estates, and any site running automated vehicle entry alongside general perimeter surveillance.

What's in the Box

• CMIP7C44WLPR-32R dual-sensor bullet camera
• Mounting bracket and hardware
• Waterproof cable gland/connectors
• Quick installation guide

Frequently Asked Questions

Does this camera use two channels on my NVR? Yes. Each lens (the ANPR zoom channel and the Colour247 overview channel) records independently, so one physical camera occupies two channels on a compatible LTS NVR.

What power supply does it need? It requires PoE+ (802.3at, up to 24.7W); a standard PoE (802.3af) port is not sufficient. A 12VDC or 24VAC terminal block connection is also available.

Can it control a gate or barrier directly? Yes, an authorised plate match can trigger the onboard relay output to open a barrier automatically, without needing an intercom in the loop.
