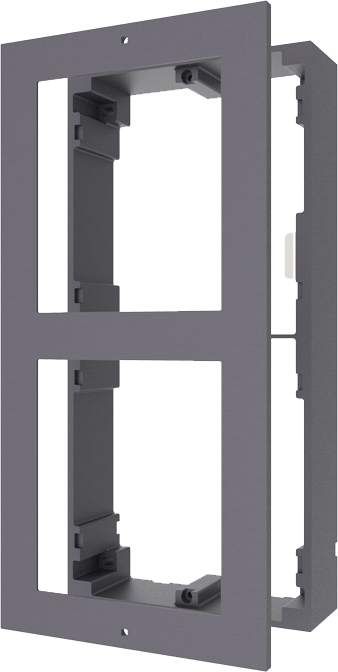

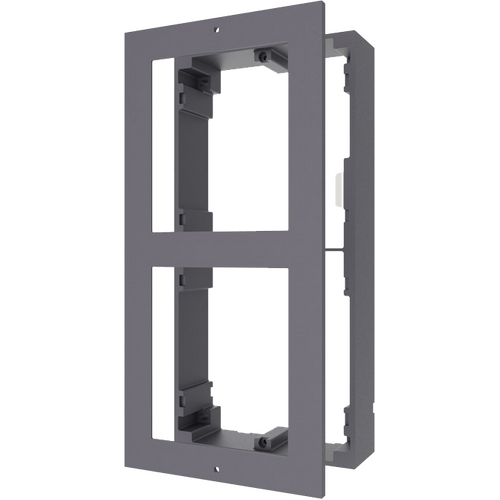

LTS LTH-M201-2S 2-Module Surface Mount Frame

The LTS LTH-M201-2S is a two-module mounting frame designed for LTS modular video intercom systems, including both IP-based and 2-Wire intercom ranges. Built to house two M201-series modules side by side, such as camera, keypad, display, or nametag modules, this frame lets installers configure a door station to match the exact access-control and communication needs of an apartment building, office entrance, or gated property. As a surface mount design, it is intended for direct wall-mounting rather than recessed installation, simplifying retrofits where flush mounting is not practical.

Key Features

• Two-module capacity for combining camera, keypad, display, or call modules in one door station
• Surface mount design for straightforward wall installation without cutting into the wall cavity
• Aviation-grade aluminium construction for the frame and cover, giving it durability against knocks and weathering
• Compatible with LTS M201-series IP intercom modules for smart, network-based entry systems
• Also suited to LTS 2-Wire intercom module configurations for simpler cabling installs
• Supplied with mounting screws and connecting lines for a complete, tidy installation
• Sturdy metal cover helps protect internal modules from dust and physical tampering
• Modular design allows easy expansion or reconfiguration of the door station later
• Wide working temperature tolerance suited to outdoor entrance installations

Typical Applications

This frame is intended for installers building or upgrading multi-tenant or commercial video intercom systems where a two-module door station is required. Common uses include apartment building entrances, small office lobbies, and gated community access points, where a camera module might be paired with a keypad or nametag module in the same wall-mounted housing. Because it supports both IP and 2-Wire module families, it gives system designers flexibility when standardising hardware across a site with mixed intercom infrastructure.

What's in the Box

• 2-module surface mount installation frame
• Protective cover
• Mounting screws
• Connecting lines/cables

Frequently Asked Questions

Is this frame suitable for outdoor entrance installations?
Yes, the aviation-grade aluminium construction is designed to withstand outdoor conditions typical of building entrances.

Can I mix an IP camera module and a 2-Wire keypad module in this frame?
The frame itself is mechanically compatible with M201-series modules from both the IP and 2-Wire LTS intercom lines, but modules should be matched to a single system type for correct electrical and network operation.

Does this include the intercom modules themselves?
No, the LTH-M201-2S is the mounting frame and cover only; camera, keypad, or display modules are purchased separately.
