LTS Mifare Proximity Card Reader Module for IP & 2-Wire Video Intercoms

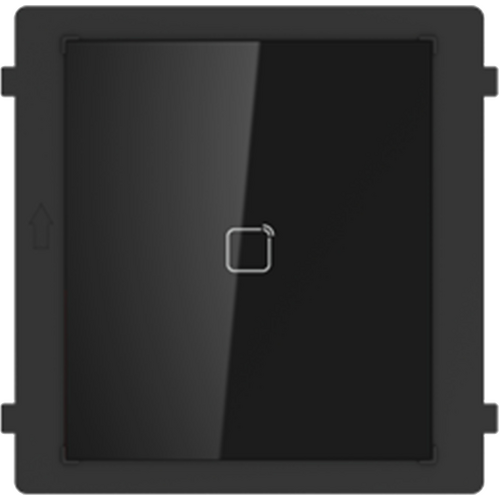

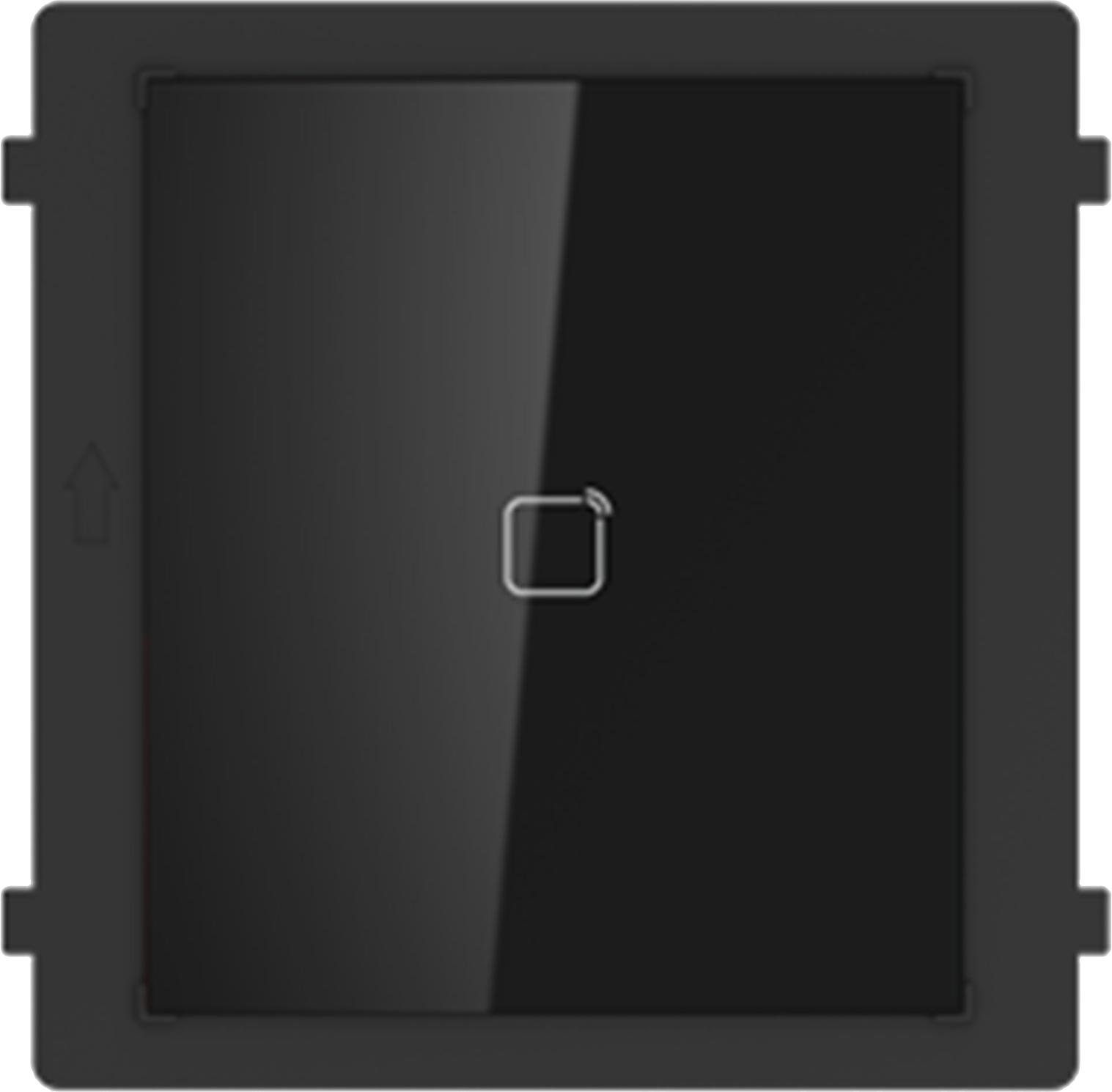

LTS LTH-M201-MCR Mifare Proximity Card Reader Module

The LTS LTH-M201-MCR is a modular proximity card reader designed to slot into the LTS modular video intercom range, adding card and key fob access directly to an IP or 2-Wire door station. Rather than a standalone reader, this module clips into the same frame as the LTS camera and keypad modules, letting installers build a single door station with camera, audio, keypad and card access in one weatherproof housing. It is purpose-built for LTS Platinum-series intercom installations where residents or staff need a quick tap-and-enter option alongside traditional call buttons.

Key Features

• 13.56MHz Mifare compatibility for standard proximity cards and key fobs used across most access control ecosystems.
• Supports door release via card swipe, giving residents a fast alternative to entering a PIN or waiting for an intercom answer.
• Built-in card issuing/enrolment function so new cards or fobs can be added on site without extra hardware.
• Backlit keypad and reader face for reliable operation and easy card placement in low-light entryways.
• IP65-rated housing to resist rain, dust and washdown at exposed building entrances.
• IK7 vandal-resistant rating, suited to unsupervised entrances, apartment blocks and commercial doorways.
• Embedded MCU processor with a built-in card reader circuit for stable, low-latency read performance.
• Powered directly through the connected LTH-M201-C (IP) or LTH-M201-C-2 (2-Wire) camera module at 12V DC, simplifying cabling.
• Modular design snaps into standard LTS 1, 2 or 3-module door station frames alongside camera, keypad and indicator modules.

Where This Module Fits

This reader module is intended for installers upgrading or configuring an LTS modular door station where card access is required in addition to, or instead of, buzzer/keypad entry. Typical use cases include apartment buildings, gated communities, offices and warehouses already running LTS IP or 2-Wire intercom systems, where property managers want to issue Mifare cards or fobs to residents, tenants or staff rather than relying solely on PIN codes. Because it shares power and control with the adjoining camera module, it is a straightforward add-on for new installs or for extending an existing LTS intercom door station.

What's in the Box

• LTH-M201-MCR Mifare proximity reader module
• Mounting hardware for the LTS modular frame

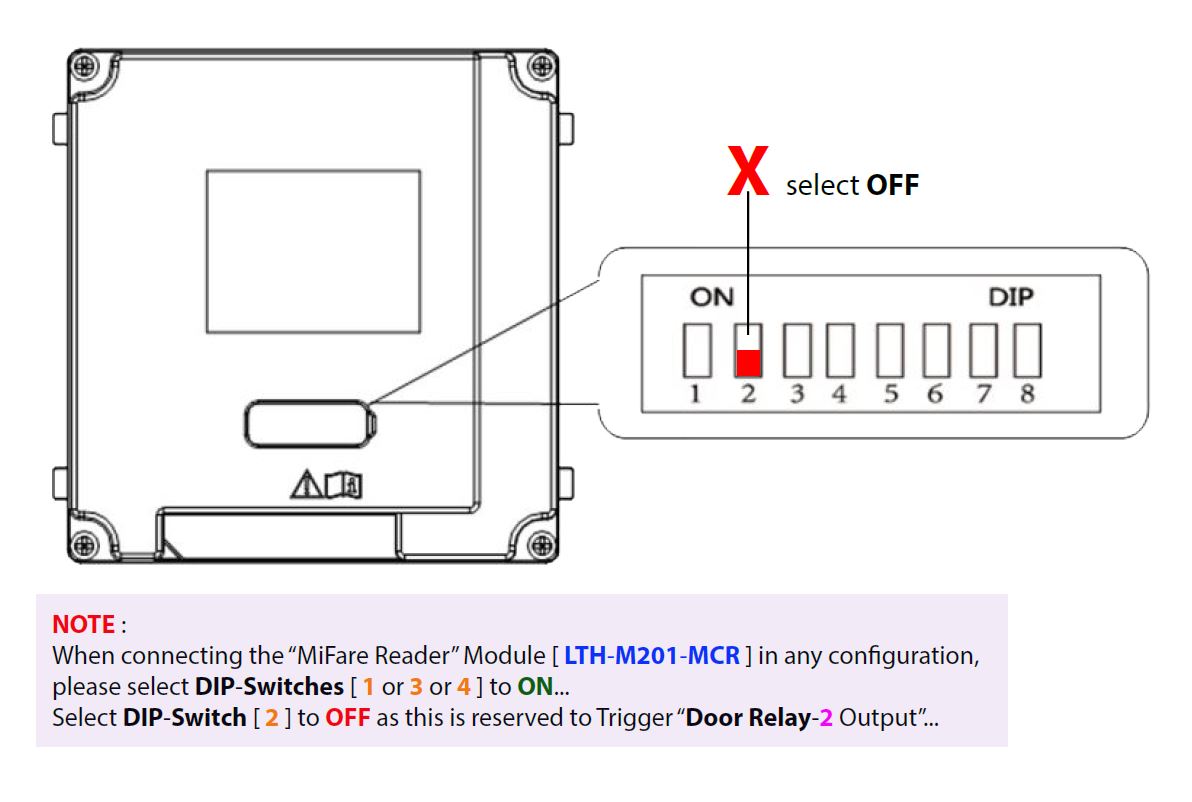

• DIP switch reference/installation notes

Frequently Asked Questions

Does this module work on its own?
No. It is a slot-in accessory that must be paired with an LTH-M201-C (IP) or LTH-M201-C-2 (2-Wire) camera module, which supplies its 12V DC power and communication link.

How many cards or fobs can it support?
When paired with a compatible LTS camera module, the system can enrol a large number of 13.56MHz Mifare cards or key fobs per door station, making it suitable for multi-tenant buildings.

Is it suitable for outdoor entrances?
Yes. Its IP65 ingress protection and IK7 impact rating make it appropriate for exposed, unsupervised outdoor doorways.
