LTS LTH-M201-IM 3-Colour LED Status Indicator Sub-Module for IP/2-Wire Intercoms

LTS LTH-M201-IM Status Indicator Sub-Module

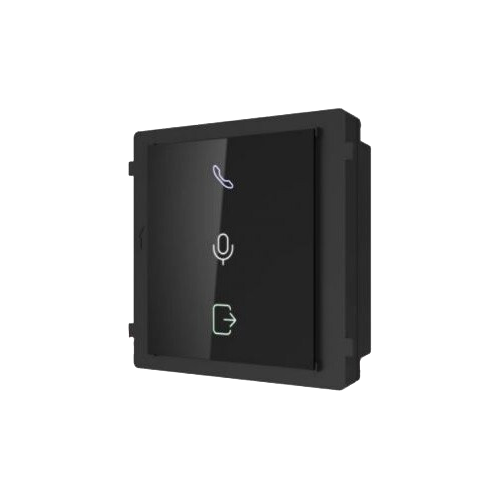

The LTS LTH-M201-IM is a compact status indicator sub-module designed to extend LTS modular video door stations with clear, at-a-glance visual feedback. Rather than functioning as a button or camera, this add-on panel uses a tri-colour LED display to confirm what the intercom is doing in real time, helping visitors and installers alike quickly understand whether a call is ringing through, the door has been unlocked, or a two-way audio session is active. It attaches directly to the modular door station frame alongside the main camera module and is fully powered through the host unit, so no separate power run is required.

Key Features

• Tri-colour LED status display that visually represents calling, door-unlock, and live two-way audio states
• Backlit panel that activates automatically when the connected main module switches into night mode, improving visibility after dark
• Embedded MCU processor for reliable, low-latency status signalling
• Weatherproof IP65-rated housing suitable for exposed outdoor door station installations
• Wide operating temperature range from -40°C to +60°C for harsh Australian climates
• Low power draw of 2W or less, drawing 12VDC directly from the host module
• Compact, modular design measuring approximately 98.5 x 100 x 33.7mm to slot neatly into standard LTS multi-module frames
• Cross-platform compatibility with both LTS IP-based and 2-Wire video intercom camera modules

Designed for Modular LTS Door Stations

The LTH-M201-IM is built as a sub-module for the LTS modular outdoor station ecosystem, working alongside the LTH-M201-C IP camera module or the LTH-M201-C-2 2-Wire camera module. Installers commonly pair it with multi-module frames on apartment blocks, offices, and residential entries where visual confirmation of call status is useful for both visitors and staff monitoring the entrance. Because it draws power from the main door station rather than requiring its own supply, it is straightforward to add during initial installation or as a later upgrade to an existing LTS intercom deployment.

What's in the Box

• 1 x LTH-M201-IM Status Indicator Sub-Module
• Mounting screws and connection hardware
• Quick start guide

Frequently Asked Questions

Does the LTH-M201-IM need its own power supply?
No. It is powered at 12VDC through the connected LTH-M201-C or LTH-M201-C-2 main camera module, so no additional wiring is needed.

Is this module a button or a touch control?
No, the LTH-M201-IM is a display-only sub-module. It shows status via a 3-colour LED and does not accept input.

Will it work with both IP and 2-Wire LTS intercom systems?
Yes. It is compatible with LTS IP video intercom setups using the LTH-M201-C module and 2-Wire setups using the LTH-M201-C-2 module.
