Ajax Fibra Case C (260) Black Mounting Enclosure for Fibra Modules

Ajax Fibra Case C (260) Black Mounting Enclosure

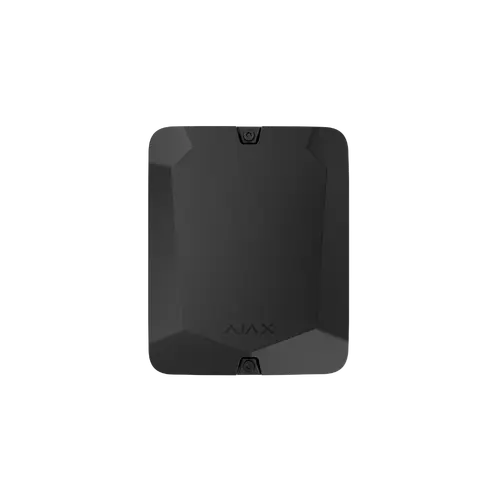

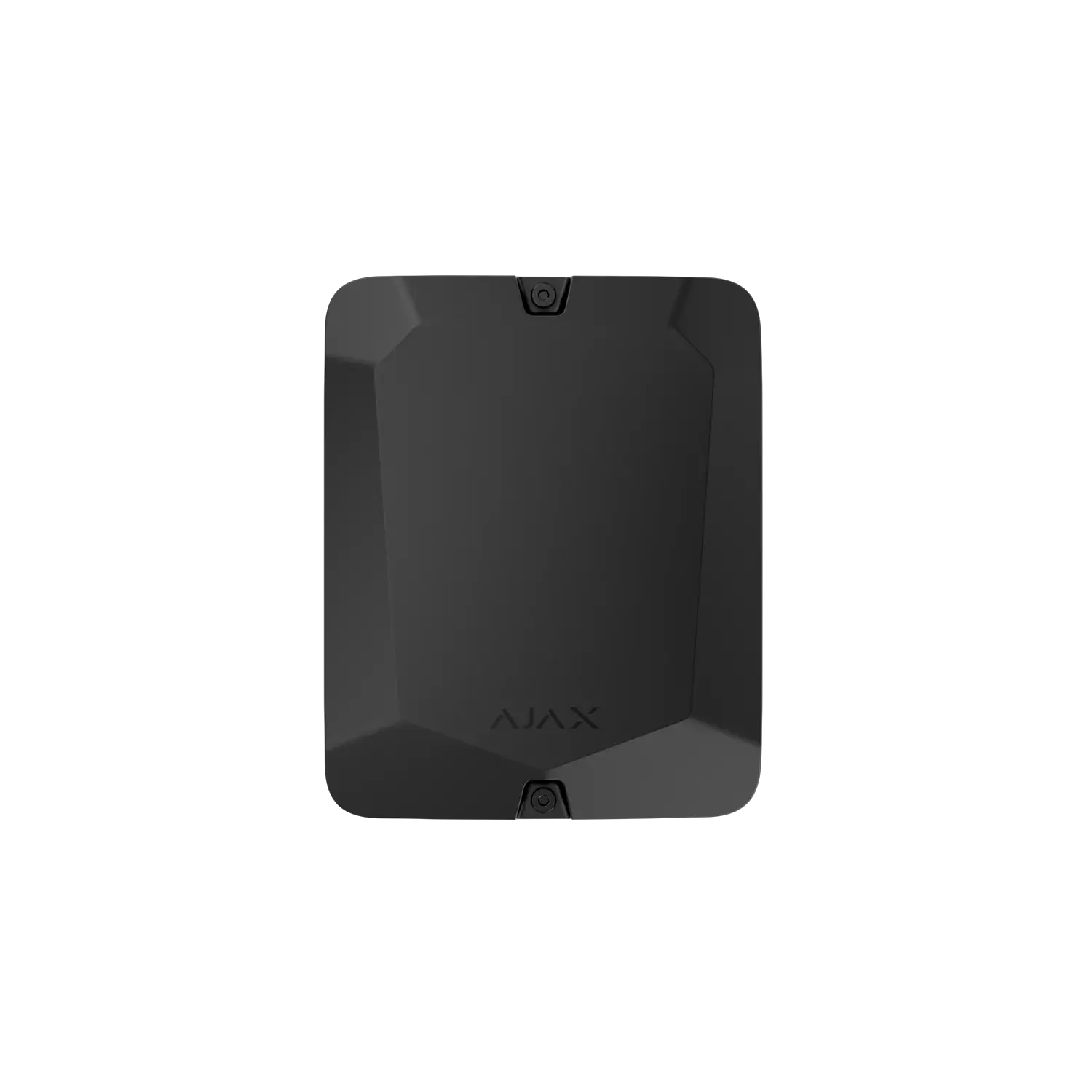

The Ajax Fibra Case C (260) is a dedicated wall-mount enclosure designed to house a single wired Fibra module together with a backup battery. Built for installers who need a tidy, tamper-protected way to conceal Ajax Fibra accessories such as LineSupply, LineSplit, LineProtect or MultiRelay boards, this black casing keeps cabling organised while protecting the electronics from dust, accidental knocks and sabotage attempts.

Key Features

• Compact footprint: Measures 260×210×93 mm, sized to fit one Fibra module and a 7 Ah backup battery side by side.
• Tamper protection: Includes a bundled tamper board that triggers an alert if the lid is opened or the case is pried from the wall.
• Tool-free device mounting: Internal latches hold the module securely in place and allow quick removal by sliding the device out.
• Organised cabling: Built-in cable fasteners and perforated cable ducts on the sides, top and bottom keep wiring neat and protected during and after installation.
• Installer-friendly drilling points: Pre-marked recesses and stoppers guide the drill bit and keep the tool steady when mounting the case to a wall.
• Rotatable device position: The internal rail system lets the installed module be fixed in two orientations, including a 180° rotation for flexible cable routing.
• Indoor-rated housing: Rated for indoor use across an operating temperature range of roughly -10°C to +40°C and up to 75% humidity.
• Certified build: Complies with EN 50131-1 security alarm standards, with conformity verified by an independent testing body.

Typical Use Cases

This case is intended for professional Ajax Fibra installations where a wired power or integration module needs to be hidden behind a panel, in a plant room, comms cupboard or utility area while remaining serviceable and protected against tampering. It is especially suited to setups that require a local backup battery alongside devices like Superior LineSupply Fibra, LineSplit Fibra, LineProtect Fibra or MultiTransmitter Fibra, giving the installation a clean finish and an added layer of physical security for compliance-driven sites.

What's in the Box

• Case C (260) black enclosure with lid
• Tamper board
• Installation kit (screws and fixings)
• Quick start guide

Frequently Asked Questions

Can this case hold more than one Fibra device?
No. Case C (260) is sized for a single Fibra module plus one backup battery; for multiple modules, the larger Case D (430) is the appropriate option.

Is a battery included with the case?
No, the case only provides the mounting slot for a 7 Ah battery; the battery itself is sold separately.

Can it be installed outdoors?
No, this enclosure is rated for indoor use only and should be installed in a dry, sheltered location.
