Ajax Case D (430) Black Fibra Wiring Enclosure for 8 Devices

Ajax Case D (430) Black - Fibra Wiring Enclosure

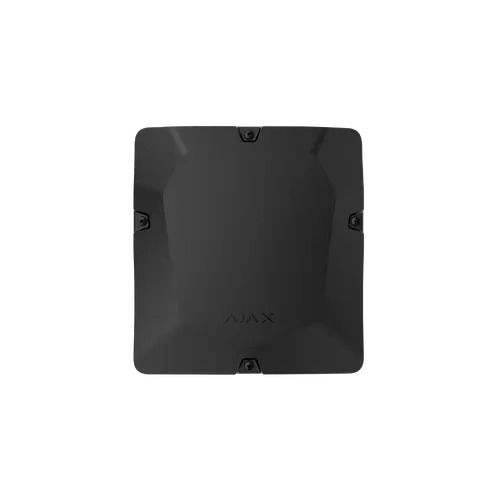

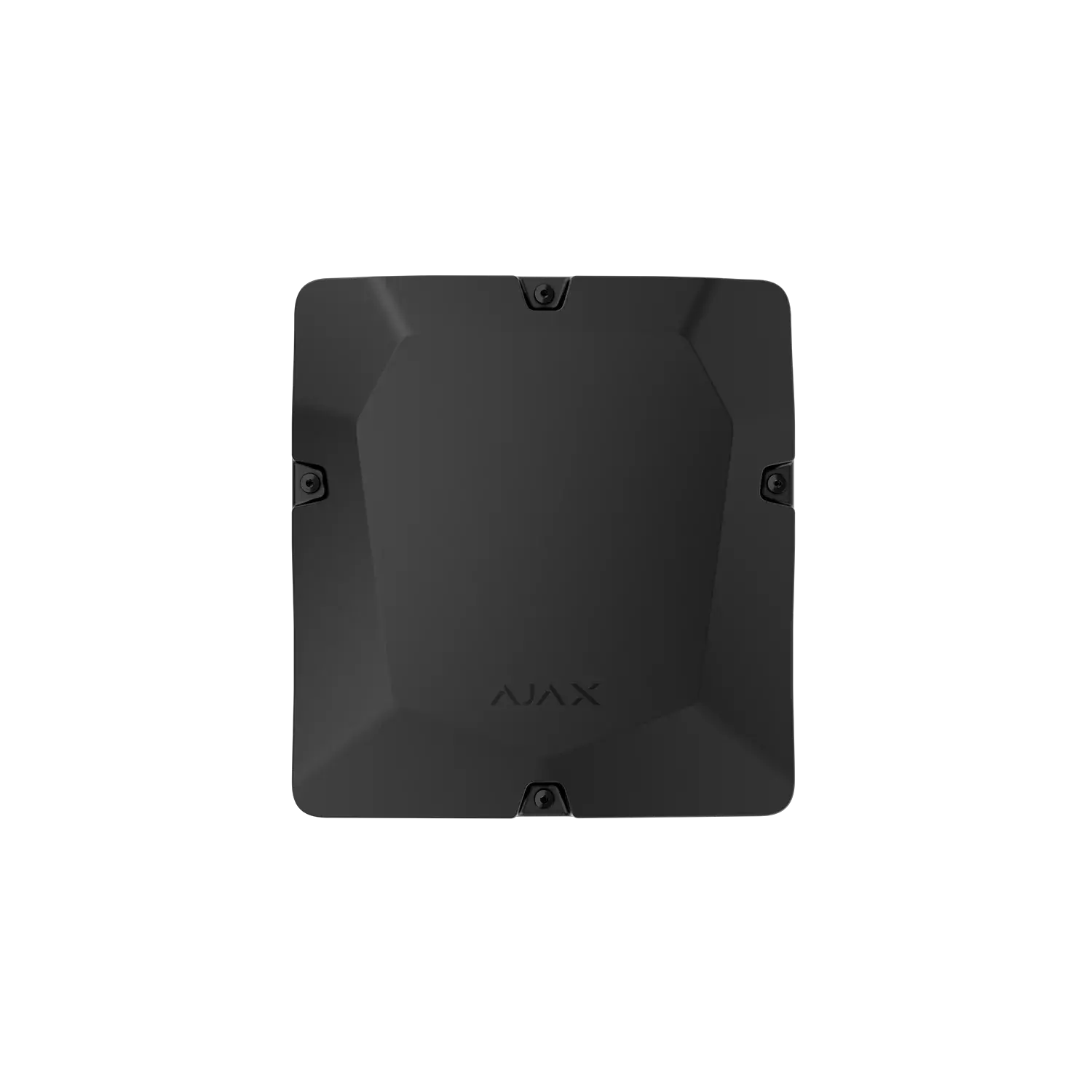

The Ajax Case D (430) is a heavy-duty black mounting enclosure built for larger Fibra installations. Measuring 430 x 400 x 133 mm, this is the largest case in the Ajax Fibra range, giving installers room to house up to eight compatible Fibra modules alongside two 18 Ah backup batteries in a single, tidy housing. It is designed for commercial and larger residential security setups where multiple line modules, relays, or a hybrid control panel need to be grouped together behind one tamper-protected cover.

Key Features

• Large capacity: Fits up to eight Ajax Fibra devices at once, including LineSplit Fibra, LineProtect Fibra, MultiRelay Fibra, and LineSupply Fibra modules.
• Battery ready: Accommodates two 18 Ah backup batteries, supporting long backup runtimes for demanding installations.
• Flexible module placement: Internal Module Holder (type A) brackets let installers arrange devices in almost any configuration rather than fixed slots, with four holders included in the box.
• Hub Hybrid support: Compatible with Module Holder (type B) brackets (sold separately) for mounting a Hub Hybrid (4G) control board directly inside the case.
• Simplified cabling: Perforated sections and pre-marked recesses (Ø16 mm or Ø20 mm) make it easy to drill clean cable entry points, while internal fasteners keep wiring organised.
• Built-in bubble level: Helps installers mount the case perfectly level without extra tools.
• Tamper protection: Integrated tamper detection triggers an alert if the case is opened or pulled away from the wall.
• Durable, weather-resistant build: Reinforced plastic housing resists deformation during drilling and is designed to cope with prolonged sunlight exposure.
• Rated for tough environments: Operates reliably across a temperature range of -10°C to +40°C and up to 75% humidity.

Typical Use

The Case D (430) suits large homes, offices, warehouses, and multi-zone commercial sites where several Fibra wired modules and batteries need to be consolidated in one place rather than scattered across separate small enclosures. It's a practical choice for installers wiring up complex Ajax Fibra systems, expanding an existing intrusion setup, or centralising power backup for multiple line devices behind a single tamper-monitored cover.

What's in the Box

• Case D (430) black enclosure
• Four Module Holder (type A) brackets
• Bubble level (built-in)
• Mounting screws and fixing points
• Tamper mechanism

Frequently Asked Questions

Can this case hold a Hub Hybrid control panel?
Yes, with the optional Module Holder (type B) brackets, the Case D (430) can house a Hub Hybrid (4G) board without its own casing.

How many batteries can it fit?
It can hold up to two 18 Ah batteries, giving a combined weight capacity of around 10 kg for extended backup power.

Does it come with all the module holders I need?
Four type A holders are included; additional type A or type B holders can be purchased separately depending on your device combination.
