Ajax Case B (175×225×57) Black Enclosure for Fibra Wired Devices

Ajax Case B (175×225×57) Black - Fibra Wired Device Enclosure

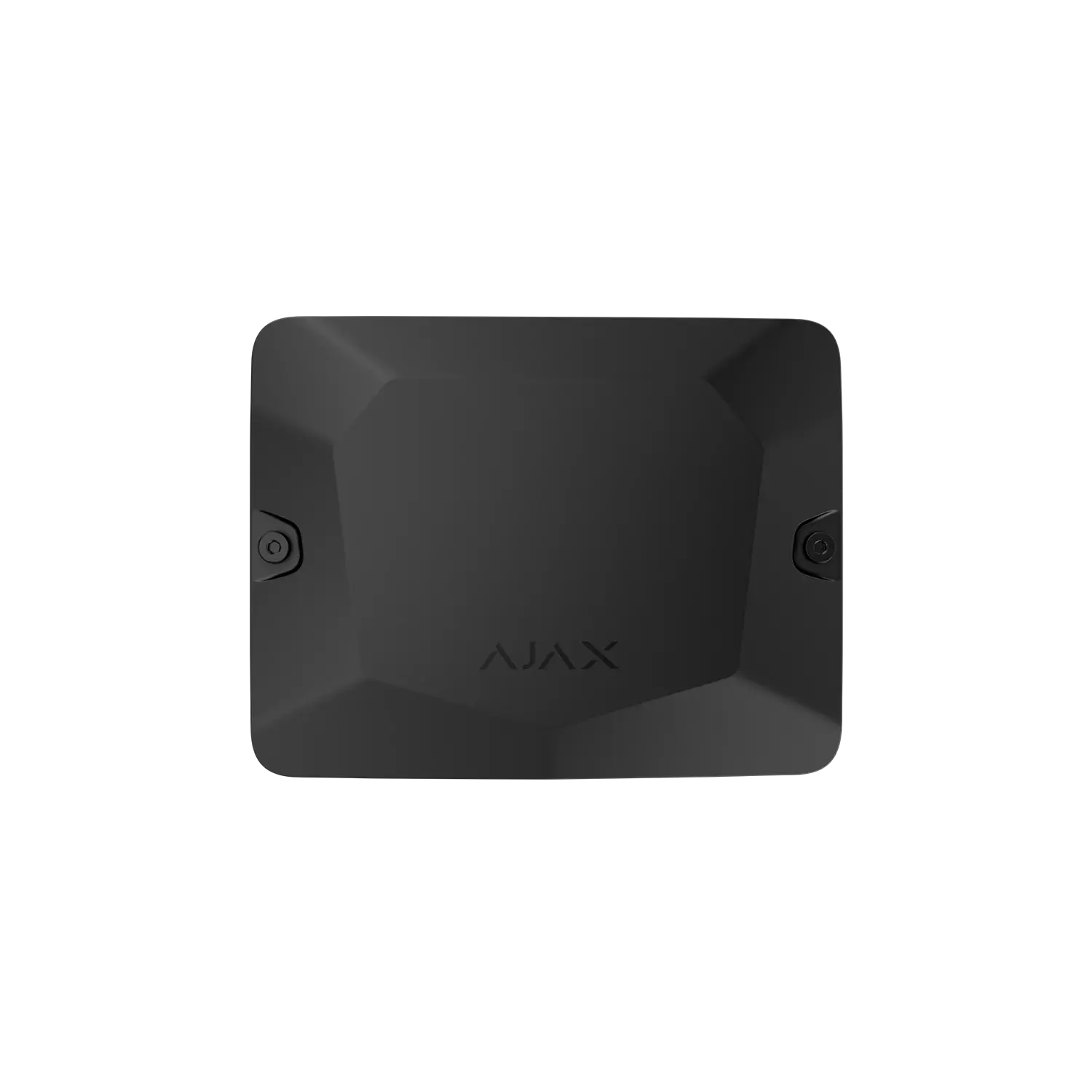

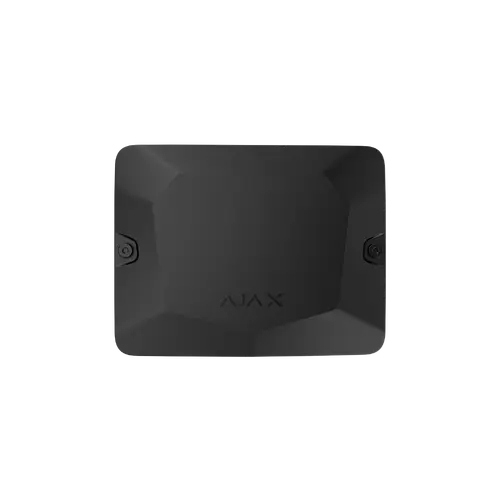

The Ajax Case B is a purpose-built black enclosure designed to house Ajax's Fibra wired security modules. Compact yet spacious enough for two devices, this casing is ideal for installers who need a tidy, professional, and tamper-resistant housing for wired security infrastructure such as line splitters, line protection modules, and relay boards. Built from durable plastic with a clean, low-profile design, the Case B keeps sensitive electronics protected while simplifying cable routing during installation.

Key Features

• Dual-device capacity: Accommodates up to two compatible Ajax Fibra modules in a single enclosure.
• Wide compatibility: Designed to house LineSplit Fibra, LineProtect Fibra, and MultiRelay Fibra devices.
• Tool-free mounting latches: Plastic latches allow devices to be secured or removed by simply sliding them into place.
• Integrated cable management: Built-in fasteners and channels keep wiring neat and organised inside the case.
• Tamper protection: A dedicated tamper board detects attempts to open the lid or remove the case from its mounting surface.
• Rotatable lid: The lid can be rotated 180° during installation for flexible orientation on site.
• Drill-friendly design: Perforated sections and recesses make it easy to create cable entry holes without damaging the casing.
• Indoor-rated build: Rated IP20 and intended for indoor installation, with an operating range of -10°C to +40°C and humidity up to 75%.
• Compact footprint: Measures 175 x 225 x 57 mm and weighs approximately 414 g, keeping it discreet once installed.

Typical Use Cases

The Case B is best suited to installations where two Fibra wired modules need to be mounted together behind a single, secure cover - for example, combining a LineSplit Fibra module with a MultiRelay Fibra unit in a small commercial fitout, or protecting a LineProtect Fibra module alongside another accessory in a residential alarm setup. Its tamper detection and organised internal layout make it a practical choice for professional installers aiming for a clean, code-compliant wired installation.

What's in the Box

• Case B (175x225x57) enclosure, black
• Tamper board with connecting wire
• Mounting screws
• Cable fasteners and ties

Frequently Asked Questions

Q: Which Ajax devices fit inside the Case B?
A: The Case B is designed to hold up to two compatible Fibra devices, including LineSplit Fibra, LineProtect Fibra, and MultiRelay Fibra modules.

Q: Can this case be installed outdoors?
A: No, the Case B is rated IP20 and is intended for indoor use only.

Q: Does the case include tamper protection?
A: Yes, it has a built-in tamper board that alerts the system if the lid is opened or the case is forcibly removed from the wall.
