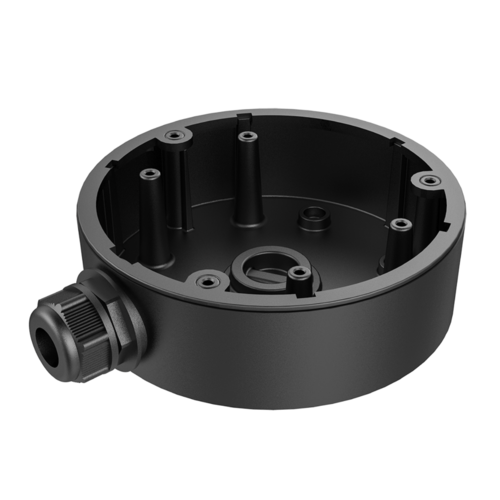

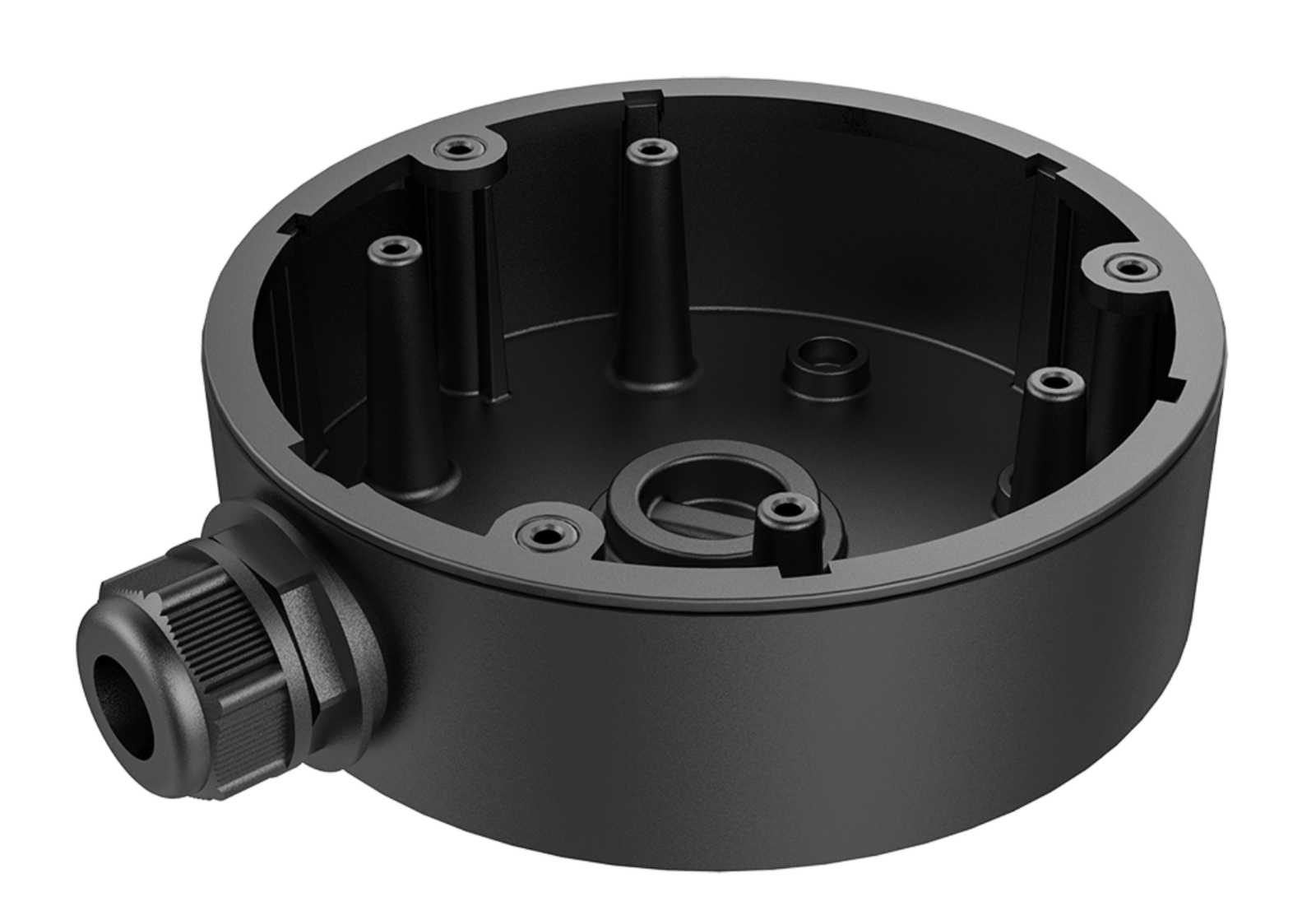

LTS LTB701B Black Aluminium Junction Box Base Extender for Dome Cameras

LTS LTB701B Black Junction Box Camera Base Extender

The LTS LTB701B is a purpose-built junction box base extender designed to sit beneath compatible LTS Platinum dome cameras, giving installers a clean, weatherproof way to route and conceal cabling. Manufactured from spray-treated aluminium alloy and finished in black, it is engineered to match the aesthetics of LTS dome camera housings while providing a robust, tamper-resistant enclosure for cable connections behind the camera base.

Key Features

• Aluminium alloy construction with a durable surface spray treatment for long-term corrosion resistance
• Weatherproof design suitable for indoor and outdoor camera installations
• Dual cable entry points, including a side inlet and a bottom inlet, for flexible conduit routing
• Interchangeable bottom waterproof cover and side gland nut, allowing the installer to choose the most practical cable entry for the site
• Compact low-profile shape, approximately 137mm in diameter and 42mm in height, keeping the mounting footprint discreet
• Designed as a base extender, effectively raising and concealing the mounting point so cables do not run externally under the camera
• Purpose-matched to the LTS Platinum IP dome camera range, including CMIP3C, CMIP3D and CMIP3T series cameras
• Black finish designed to blend seamlessly with black-bodied LTS dome camera housings

Typical Use Case

The LTB701B is most commonly installed on ceilings, soffits, or walls where an existing conduit or cable run needs to be hidden behind an LTS Platinum dome camera. Installers fit the junction box to the mounting surface first, feed and terminate the camera's power and network cabling inside the enclosure, then attach the compatible dome camera on top. This is especially useful in retrofit installations where conduit is already in place and a neat, professional finish is required without exposed cabling, or in outdoor locations where a sealed housing is needed to protect connections from moisture and dust.

What's in the Box

• 1 x LTB701B black aluminium junction box base extender
• Mounting screws and fixings
• Waterproof bottom cover and side gland nut (interchangeable)

Frequently Asked Questions

Which cameras is the LTB701B compatible with?
It is designed for LTS Platinum IP dome cameras in the CMIP3C, CMIP3D and CMIP3T series.

Can this junction box be used outdoors?
Yes, it features a weatherproof design with a sealed cable entry system suitable for outdoor mounting.

Does it come in other colours?
The LTB701B is the black version of this junction box; a matching white variant is also available under a different part number for lighter-coloured camera housings.
