LTS Platinum CMIP3T22W1-2M 2.1MP Thermal & Optical Turret IP Camera

LTS Platinum CMIP3T22W1-2M Thermal & Optical Turret IP Camera

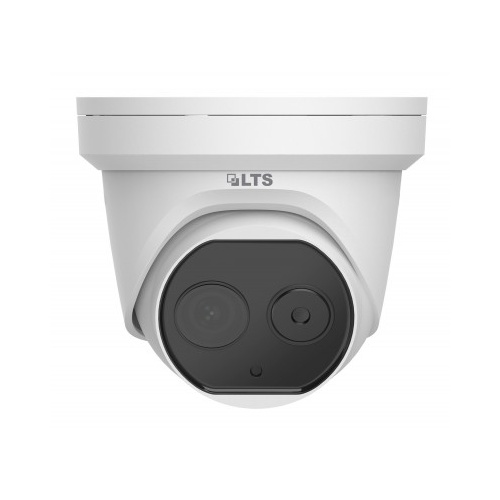

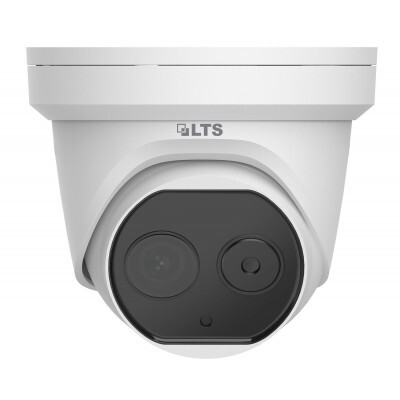

The CMIP3T22W1-2M pairs a thermal imaging sensor with a 2.1MP optical lens in a single turret housing, giving installers two complementary views of the same scene. Built around an onboard GPU, the camera runs deep-learning video analytics locally, allowing it to flag unusual activity and temperature anomalies without relying on a separate analytics server. It is purpose-built for early fire and smoke detection in enclosed environments such as plant rooms, ATMs, boardrooms, warehouses, museums, transport hubs and power stations, where a standard optical camera alone may miss a developing heat event until it is visible.

Key Features

• Dual-sensor design: 160x120 thermal imaging sensor (320x240 output) paired with a 2.1MP 1920x1080 optical sensor for side-by-side or fused viewing
• 1.8mm fixed lens on the thermal channel and a 2.1mm fixed lens on the optical channel, giving a wide field of view of roughly 101.2° horizontal by 77° vertical
• Built-in GPU running deep-learning based behaviour analytics, including line crossing, intrusion detection, and region entrance/exit alarms
• Dedicated fire detection algorithm with temperature exception alarms for early warning of overheating or ignition
• Bi-spectrum image fusion with picture-in-picture preview, so thermal and optical feeds can be viewed together or separately
• Advanced image processing including Adaptive AGC, DDE and 3D DNR, with thermal sensitivity (NETD) under 40 mK and 15 selectable colour palettes
• 120dB true WDR, BLC and 3D DNR on the optical channel for balanced exposure in high-contrast scenes
• Matrix IR illumination to around 15m and low-light optical sensitivity down to 0.002 lux with AGC enabled
• H.265+ compression, two-way audio, IP67 weatherproofing, and support for up to 256GB microSD local storage

Where It Fits

This turret camera suits sites where early detection of overheating equipment or a developing fire could prevent significant loss, such as server and switch rooms, warehouses storing valuable stock, museums and archives, transport stations, and utility or power infrastructure. Because it combines a visible-light view with thermal data in one unit, security teams get context alongside the heat alarm, making it easier to verify an alert before dispatching a response.

What's in the Box

• CMIP3T22W1-2M Thermal & Optical Turret IP Camera
• Mounting bracket and screw kit
• Waterproof cable gland/connector accessories
• Quick start guide

Frequently Asked Questions

Does this camera need a separate PoE injector?
No. It is powered via 802.3af PoE (around 8.5W) or 12VDC/700mA, so a standard PoE switch or NVR port is usually sufficient.

Can it record locally without an NVR?
Yes, it supports onboard storage on a microSD card up to 256GB, in addition to streaming to an NVR or VMS.

Is the thermal channel a full resolution image?
The thermal sensor captures at 160x120 and outputs at an upscaled 320x240, which is standard for this class of bi-spectrum turret and intended for heat-pattern and alarm detection rather than detailed identification.
