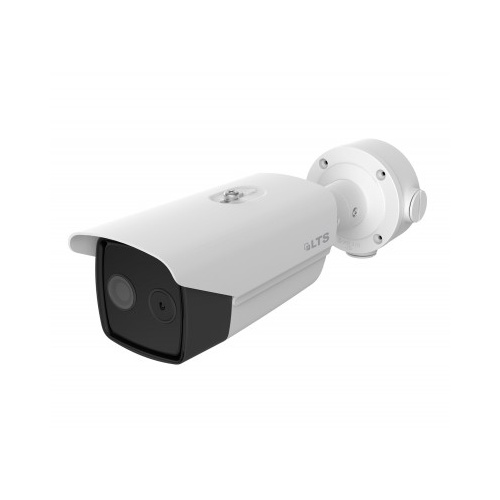

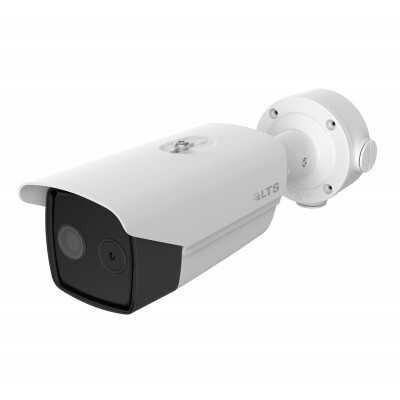

LTS Platinum CMIP9T221-3M 2.1MP Thermal & Optical Bullet IP Camera (4mm Lens)

LTS Platinum CMIP9T221-3M Thermal & Optical Bi-Spectrum Bullet IP Camera

The CMIP9T221-3M is a dual-sensor bullet camera from the LTS Platinum range that pairs a 160×120 thermal imaging module with a 2.1MP optical lens in a single weatherproof housing. Built around an onboard GPU, it runs deep-learning video analytics directly on the camera, allowing it to flag heat anomalies and unauthorised movement in real time. It is purpose-built for fire pre-warning and perimeter security in demanding environments such as plant rooms, warehouses, fuel and power infrastructure, and other sites where early detection of heat events or intrusions is critical.

Key Features

• Bi-spectrum imaging: Combines a thermal sensor with a 2.1MP (1920x1080) optical sensor and supports picture-in-picture fusion for side-by-side thermal and visual context.
• Onboard GPU analytics: Deep-learning based line crossing, intrusion, and region entrance/exit detection reduce false alarms compared to standard motion sensing.
• Fire pre-alarm algorithm: Detects abnormal temperature signatures and can trigger alerts before a fire fully develops, supporting rapid response.
• High thermal sensitivity: NETD rated below 40mK at 25°C (F#=1.1), with adaptive AGC, DDE, and 3D DNR for cleaner thermal footage in varied conditions.
• 4mm fixed optical lens: Delivers a wide field of view (approximately 87° horizontal) suited to general area monitoring alongside thermal coverage.
• Night vision: Matrix IR illumination to roughly 40m at 850nm supports the optical channel after dark.
• Rugged, PoE-ready build: IP66-rated housing with 802.3af PoE (12W) or 12VDC power, plus H.265+/H.264 compression to manage bandwidth and storage.
• Local storage & audio: Supports up to 128GB microSD storage and two-way audio input/output for on-site alerting.

Where It's Used

Because it merges thermal detection with a standard optical view, the CMIP9T221-3M suits sites where early heat-based fire warning is as important as visual verification. Typical deployments include server and engine rooms, ATMs, warehouses, museums, gas and power stations, transport hubs, and perimeter fence lines around critical infrastructure, where the camera's pre-alarm capability helps operators intervene before a small issue becomes a costly loss.

What's in the Box

• CMIP9T221-3M Thermal & Optical Bullet IP Camera
• Mounting bracket and screws
• Junction/waterproof cable gland accessories
• Quick start guide

Frequently Asked Questions

Can this camera detect fire before flames are visible?
Yes, its thermal sensor and fire detection algorithm are designed to flag abnormal temperature patterns, giving an early pre-alarm ahead of visible flame or smoke.

Does it work with standard NVR systems?
Yes, it uses IP/ONVIF-style connectivity common to LTS Platinum IP cameras and integrates with compatible NVR and VMS platforms for recording and alarm management.

Is it suitable for outdoor perimeter use?
Yes, the IP66-rated housing and integrated IR illumination support outdoor perimeter and infrastructure monitoring in addition to indoor fire-risk areas.
