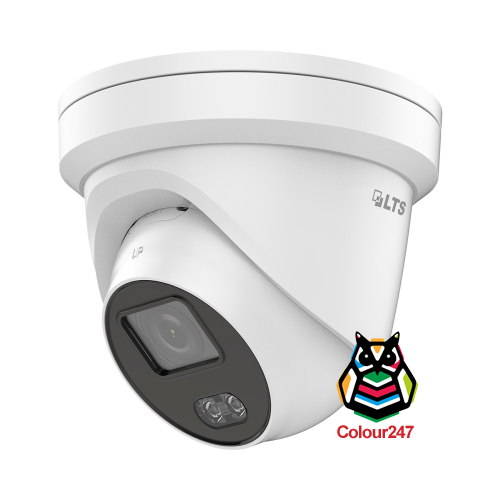

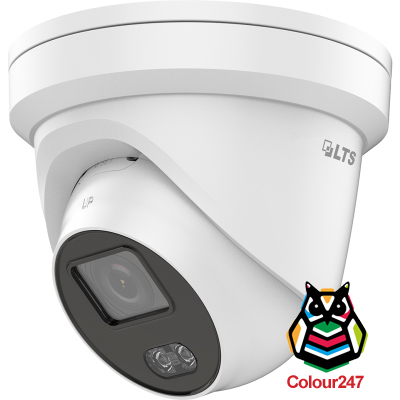

LTS Platinum 4MP Color247 AI Turret Camera - 4mm Fixed Lens (CMIP3C42W-AIM)

LTS Platinum CMIP3C42W-AIM 4MP Color247 AI Turret Camera

The CMIP3C42W-AIM is a 4MP outdoor turret camera from the LTS Platinum range, built for installers and end-users who need reliable round-the-clock colour footage combined with smart AI filtering. Fitted with a 4.0mm fixed lens and an ultra-wide F1.0 aperture, this camera captures full-colour vision in near darkness rather than switching to grainy black-and-white infrared, while onboard human and vehicle classification helps cut down on nuisance motion alerts from pets, leaves, or passing shadows.

Key Features

• 4MP Resolution - Delivers detailed 2688x1520 imaging at up to 30fps for clear identification of people and vehicles.
• Color247 Night Vision - An F1.0 super-aperture lens and sensitive sensor allow full-colour recording in extremely low light, rated to 0.0005 lux.
• Built-in White Light Illuminator - Supplements low-light colour performance with a warm white LED with a range of up to 30 metres.
• AI Human & Vehicle Detection - On-board deep-learning analytics distinguish between people, cars, and irrelevant motion, reducing false alerts.
• 130dB True WDR - Balances bright and shadowed areas of a scene, alongside BLC and 3D DNR for cleaner night footage.
• H.265 / H.265+ Compression - Efficient encoding minimises bandwidth and storage requirements without compromising image quality.
• Built-in Microphone - Captures ambient audio alongside video for more complete evidence.
• IP66 Weatherproof Housing - Rated for continuous outdoor use in Australian rain, dust, and sun exposure.
• Flexible Power & Storage - Runs on 12VDC or 802.3af PoE, with onboard microSD slot supporting cards up to 256GB.

Ideal Applications

This turret camera suits homeowners, retailers, and small-to-medium businesses wanting dependable perimeter coverage over driveways, entrances, loading docks, or car parks. Because it can tell the difference between a genuine intruder or vehicle and background movement, it works well as part of an active deterrence or alert-based monitoring setup where installers want to minimise false push notifications from an LTS Platinum NVR or ONVIF-compatible recorder.

What's in the Box

• CMIP3C42W-AIM turret camera
• Mounting bracket and screw kit
• Waterproof cable gland/connector
• Drilling template
• Quick start guide

Frequently Asked Questions

Does this camera need a separate power supply?
No - it can be powered either by a standard 12VDC adapter or via 802.3af PoE from a compatible switch or NVR, so a single Cat5e/Cat6 cable can carry both power and data.

Will the AI detection work with my existing NVR?
The camera is ONVIF-compliant and designed to integrate with LTS Platinum NVRs, and it will also work with most third-party ONVIF-compatible recorders, though full AI metadata support is best on LTS recorders.

How is this different from the 2.8mm AIM28 version?
The core AI, WDR, and Color247 features are shared across the AIM series; this AIM model uses a 4.0mm fixed lens for a slightly narrower field of view and more reach than the 2.8mm AIM28 variant, making it better suited to longer, narrower approaches such as driveways.
