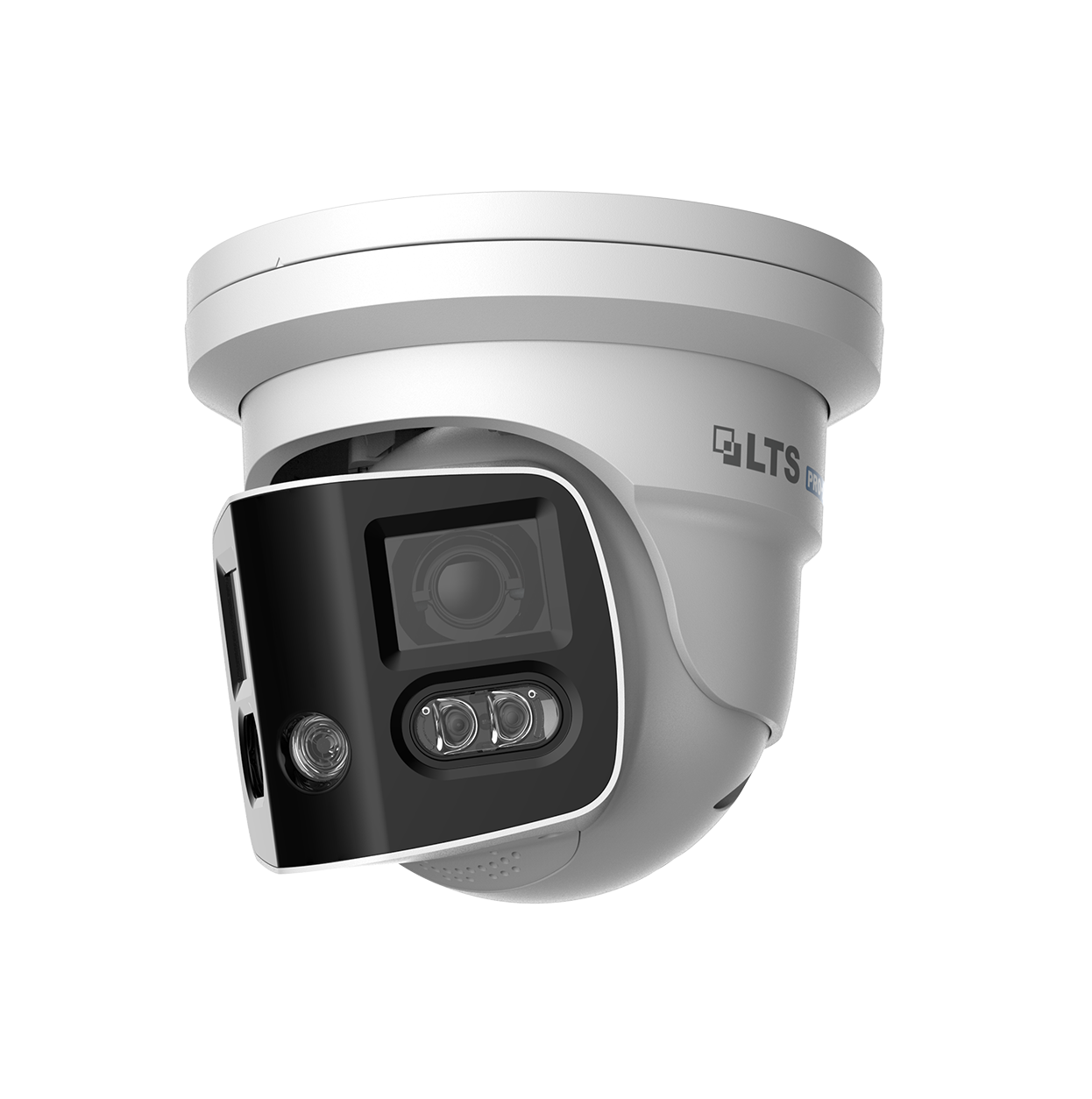

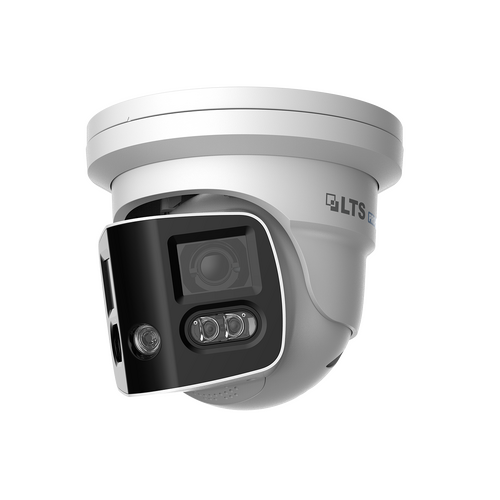

LTS PRO-X LXIP3C8PWI-SDL 8MP Dual-Lens Panorama Turret Camera

LTS PRO-X LXIP3C8PWI-SDL 8MP Dual-Lens Panorama Turret Camera

The LTS PRO-X LXIP3C8PWI-SDL is an 8MP dual-lens turret camera built for wide-area outdoor surveillance where blind spots simply aren't an option. Using two 4MP sensors and dual 2.8mm fixed lenses, it stitches a seamless 180° splicing image at up to 4096 x 1860 resolution, giving installers panoramic coverage from a single mounting point. Paired with active red and blue light deterrence, a built-in siren, and AI-based human and vehicle classification, this NDAA-compliant PRO-X model is designed for sites that need both broad visibility and a strong visual deterrent against intruders.

Key Features

• Dual 4MP Sensors, 180° Splicing: Combines two 1/2.8" Progressive Scan CMOS sensors into one continuous panoramic image at up to 20 fps.
• E-PTZ / E-Tracking: Digitally enlarges and follows people or vehicles flagged by intelligent motion detection, keeping targets in frame without moving parts.
• MD 2.0 Human and Vehicle Detection: Smart analytics reduce false alarms by distinguishing genuine threats from irrelevant motion.
• X-Deterrence: Built-in siren plus flashing red and blue lights actively warn off intruders in real time.
• Hybrid Illumination: Combines infrared and warm white LEDs for supplemental lighting up to roughly 98 feet (30 m), supporting both mono and full-colour night imaging.
• True WDR 120dB: Delivers balanced exposure in high-contrast scenes such as entrances or car parks with strong backlighting.
• Two-Way Audio: Integrated microphone and speaker allow live voice-down communication with anyone on site.
• Smart Compression: H.264/H.265 encoding keeps storage and bandwidth requirements efficient despite the high-resolution panoramic feed.
• IP67 Weatherproof Housing: Rated for continuous outdoor exposure in Australian conditions.

Ideal Applications

This camera suits properties that need to monitor long perimeters, wide yards, loading docks, or car parks with fewer camera positions than a standard single-lens setup would require. Its combination of panoramic coverage, target tracking, and active audio-visual deterrence makes it a strong fit for warehouses, retail forecourts, schools, and commercial or industrial sites where proactive intrusion deterrence is a priority alongside high-resolution recording.

What's in the Box

• LXIP3C8PWI-SDL dual-lens turret camera
• Mounting bracket and template
• Screws and wall anchors
• Waterproof cable gland kit
• Quick start guide

Frequently Asked Questions

Does this camera need a separate power supply?
No. It can be powered via PoE from a compatible NVR or switch, or via a 12V DC adapter if PoE is unavailable.

Can it record without an NVR?
Yes, it supports local recording to a microSD card of up to 256GB in addition to network recording.

Is the audio and alarm two-way?
Yes, it includes one audio input/output channel for two-way talk and one alarm input/output channel for integration with external devices such as sensors or sirens.
