LTS PRO-X 4x5MP Panoramic Multisensor NDAA Dome IP Camera

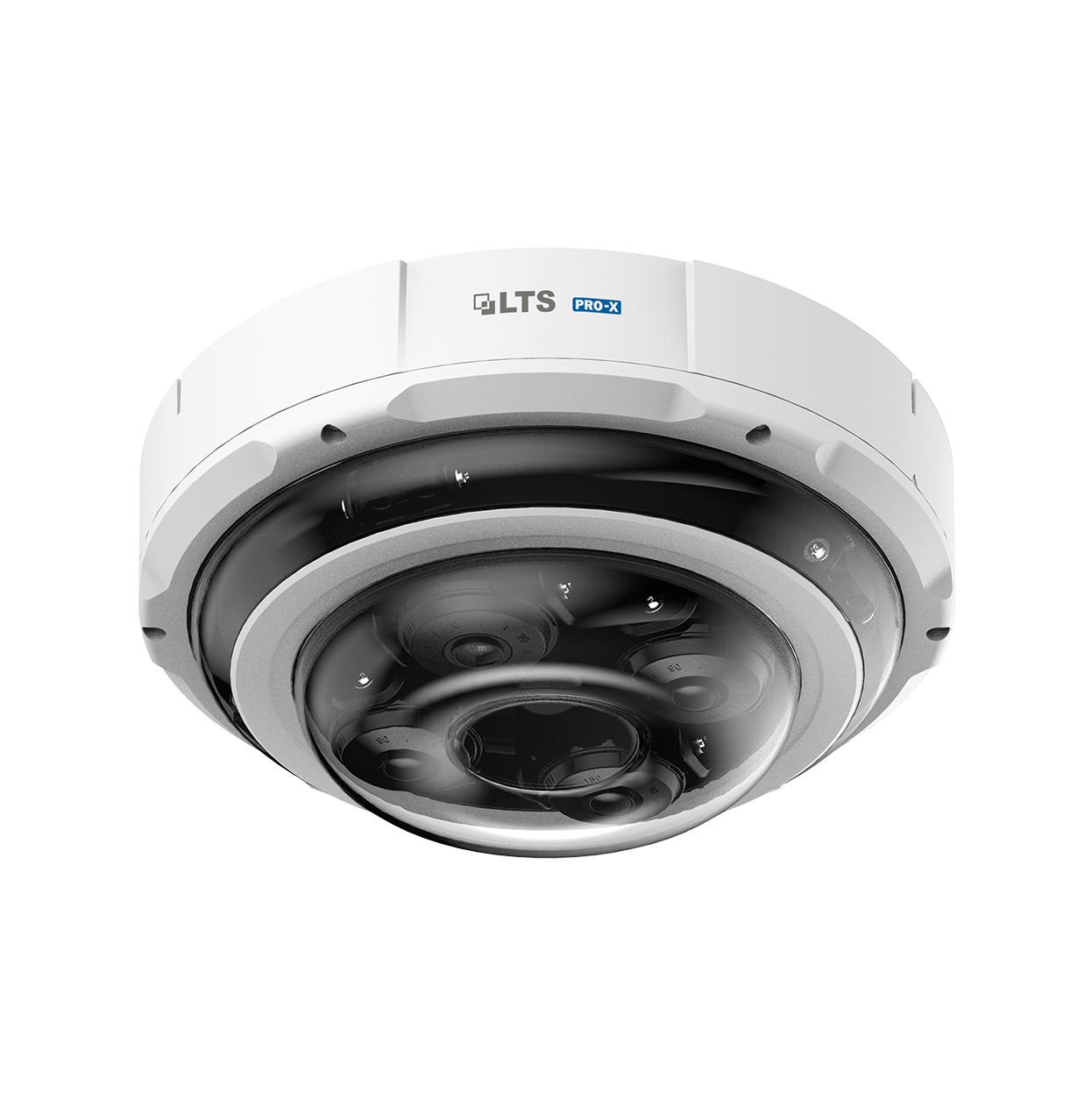

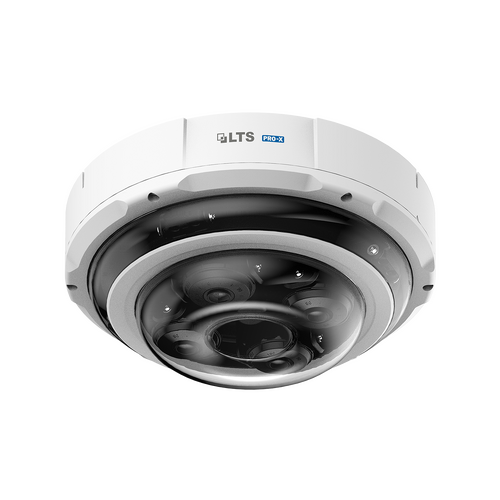

LTS PRO-X LXIP7553W4-SZ12 4x5MP Panoramic Multisensor Dome Camera

The LTS PRO-X LXIP7553W4-SZ12 is a four-lens panoramic dome camera built to cover wide, complex areas with a single mounting point. Four independent 5MP, 1/2.7" CMOS imagers with motorized vari-focal 2.8-12mm lenses can be aimed in different directions, letting installers stitch together up to 180 degrees of coverage or focus each sensor on a distinct zone such as a parking lot, entrance, and walkway simultaneously. As part of the NDAA-compliant PRO-X line, it is designed for government, education, and enterprise projects that require verified supply-chain compliance, and it pairs with a PRO-X NVR for full feature support.

Key Features

• Four 5MP Sensors in One Housing: Each of the four 1/2.7" CMOS channels streams up to 2592x1944 at 30fps, with a combined output of roughly 8MP for a wide, high-detail scene view.
• Motorized Vari-Focal Optics: 2.8-12mm lenses on each module allow remote zoom and focus adjustment per lens for precise field-of-view tuning.
• Built-In AI Analytics: Onboard MD 2.0 human and vehicle classification helps cut false alerts from weather, animals, or debris, and the camera also supports people counting.
• Strong Low-Light Performance: Rated to 0.005 lux at f/1.7 in color mode, with a supplemental white-light illuminator that extends usable visibility to roughly 98 feet in near-total darkness.
• Rugged, Weatherproof Build: IP67 ingress protection and IK10 impact resistance make it suitable for outdoor installation in harsh or high-vandalism environments.
• Efficient Compression: Smart H.264/H.265 encoding reduces bandwidth and storage demands without sacrificing image clarity.
• Flexible Power and Storage: Runs on 12V DC or PoE+, with onboard microSD support up to 256GB for local edge recording alongside NVR storage.
• Digital WDR: Helps balance exposure in scenes with strong backlighting or mixed light and shadow.

Where This Camera Fits

This multisensor dome suits large open sites where a single traditional camera would leave gaps, such as retail forecourts, school campuses, warehouse yards, apartment complexes, and government facilities. Because installers can angle each of the four lenses independently, one LXIP7553W4-SZ12 can often replace two or three fixed cameras, simplifying cabling, mounting, and network configuration while still delivering multiple discrete 5MP views for review and analytics.

What's in the Box

• LXIP7553W4-SZ12 4x5MP Panoramic Dome Camera
• Mounting screws and installation template
• Waterproof cable connectors
• Quick start guide

Frequently Asked Questions

Does this camera need a special NVR? It works with standard ONVIF-compatible NVRs, but LTS recommends pairing it with a PRO-X series NVR for full plug-and-play support of all four channels and analytics; it is not fully plug-and-play with LTS Platinum NVRs.

Can each lens be pointed in a different direction? Yes, the four vari-focal lenses adjust independently, allowing installers to customize coverage across multiple zones from one dome.

Is this camera NDAA compliant? Yes, it belongs to the LTS PRO-X line, which is built to meet NDAA compliance requirements for government and public-sector deployments.
