LTS PRO-X 12MP Fisheye IP Dome Camera with AI Human & Vehicle Detection

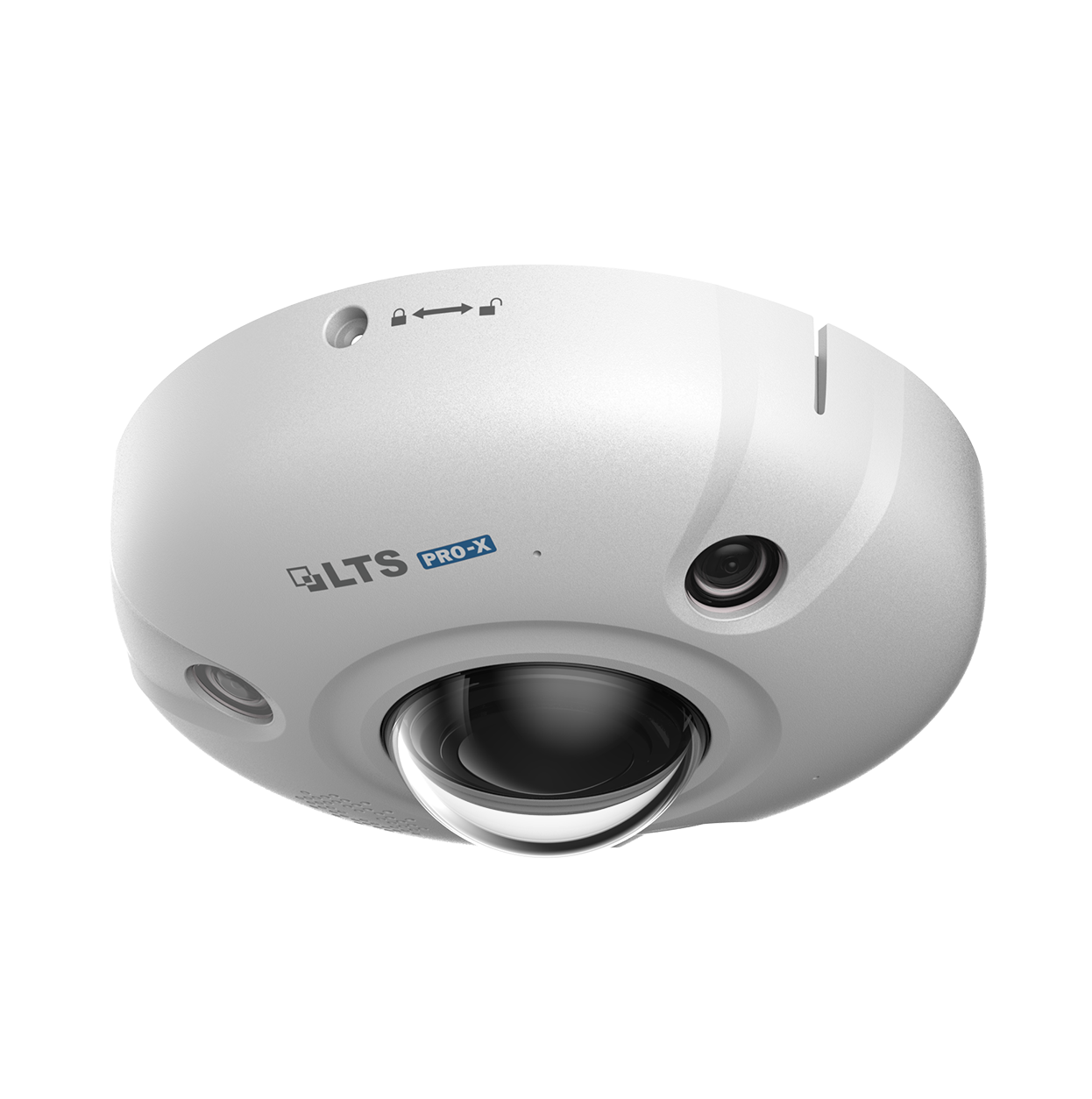

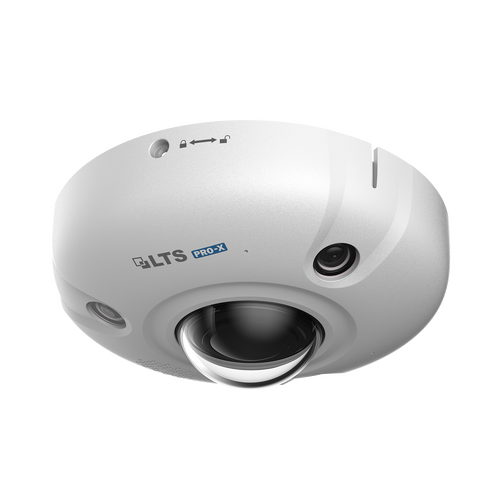

LTS PRO-X LXIP75122F-SE 12MP Fisheye IP Dome Camera

The LTS PRO-X LXIP75122F-SE is a high-resolution 12MP fisheye network camera built for wide-area, 360-degree surveillance coverage from a single vantage point. Part of the NDAA-compliant PRO-X line, this dome-style fisheye unit combines a large 1/1.7" progressive scan CMOS sensor with smart AI video analytics, making it well suited for lobbies, warehouses, retail floors, car parks and open-plan offices where a panoramic view reduces the number of cameras needed. Built-in two-way audio, low-light performance and a rugged IP67/IK10 housing round out a camera designed for demanding commercial installations.

Key Features

• 12MP ultra-high resolution: Captures up to 4000 x 3000 at 25 fps, with an 8MP (3280 x 2480) mode available at 30 fps for smoother motion capture.
• 1.85mm fisheye lens: Delivers a full 360-degree panoramic field of view from a single fixed-lens dome, ideal for ceiling-mounted overview monitoring.
• AI-powered MD 2.0 analytics: Onboard human and vehicle detection helps cut down false alerts from wind, shadows, animals and other non-relevant motion.
• People counting and heat mapping: Built-in VCA tools support tripwire and area-based people counting plus heat map reporting for retail and business intelligence use.
• Strong low-light performance: Rated to 0.01 Lux at f/2.0 in colour mode, dropping to 0 Lux once the onboard matrix IR illuminator (up to roughly 33 feet) activates.
• Digital WDR: Balances bright and dark areas within the same scene for clearer footage in high-contrast lighting conditions.
• Built-in dual-array microphone and speaker: Enables live two-way audio communication directly through the camera without extra hardware.
• Rugged, weatherproof build: IP67 ingress protection and IK10 impact resistance make it suitable for outdoor use and areas exposed to knocks or vandalism.
• Flexible power and storage: Runs on 12V DC or PoE+, with onboard microSD storage supported up to 256GB for local backup recording.

Where This Camera Fits

Because a single fisheye camera can cover an entire room or open area, the LXIP75122F-SE is commonly used in retail stores, transport hubs, schools, warehouses and government facilities where wide-area situational awareness matters more than long-distance zoom. Its AI-based human and vehicle detection combined with people-counting analytics also make it a practical choice for businesses wanting occupancy and foot-traffic insights alongside standard security recording. As an NDAA-compliant PRO-X model, it's a fit for government and public-sector projects with restrictions on certain overseas-manufactured surveillance equipment.

What's in the Box

• LXIP75122F-SE 12MP fisheye IP camera
• Mounting screws and hardware
• Installation template
• Quick start guide

Frequently Asked Questions

Is this camera compatible with LTS Platinum NVRs?
The PRO-X series is designed to pair with PRO-X NVRs for full feature compatibility, and is not guaranteed to be plug-and-play with LTS Platinum series recorders.

Does it need a separate microphone or speaker for two-way audio?
No, the camera has a built-in dual-array microphone and speaker, so two-way communication works without additional accessories.

Can it be powered without a PoE switch?
Yes, it supports both PoE+ and a standard 12V DC power connection, giving flexibility for different installation setups.
