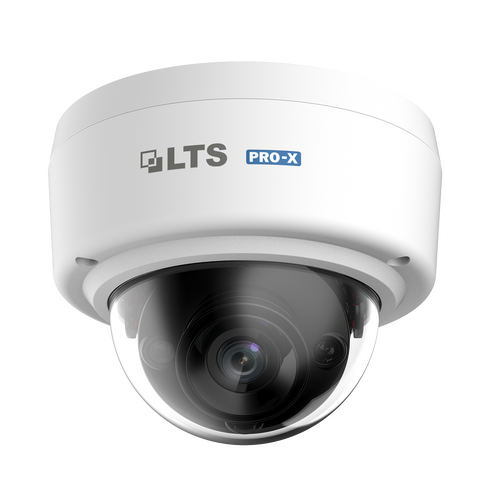

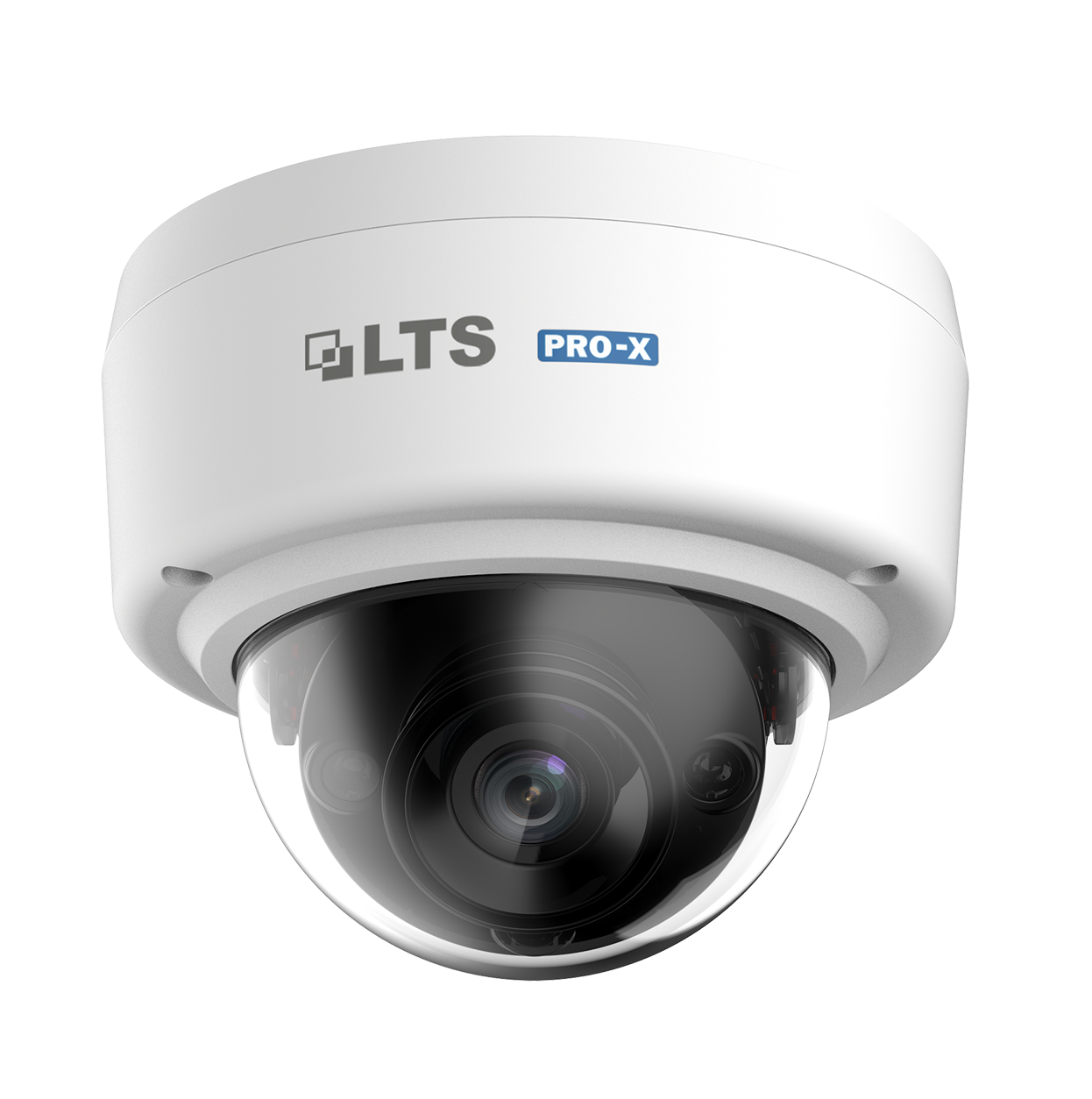

LTS PRO-X 4MP Dome IP Camera with 2.8mm Lens & AI Detection

LTS PRO-X 4MP Dome IP Camera - LXIP7542W-28SD

The LTS PRO-X LXIP7542W-28SD is a rugged 4MP fixed-lens dome camera built for demanding indoor and outdoor surveillance applications. Designed as part of LTS's NDAA-compliant PRO-X range, it pairs sharp 4-megapixel imaging with a wide 2.8mm lens, strong low-light performance, and onboard AI-based analytics to help security teams tell people and vehicles apart from irrelevant motion. Vandal-resistant and weatherproof housing means it can be mounted almost anywhere it's needed, from retail entrances to warehouse yards.

Key Features

• 4MP High-Resolution Imaging: Captures detailed 2688 x 1520 video at up to 30fps for clear identification of people, vehicles, and objects.
• Wide 2.8mm Fixed Lens: Delivers a broad field of view, ideal for covering entryways, car parks, and open areas in a single shot.
• Outstanding Low-Light Sensitivity: Rated to 0.005 Lux in colour mode, with Matrix IR illumination extending visibility up to roughly 98 feet (30m) in total darkness.
• 120dB True WDR & 3D DNR: Balances bright and shadowed areas within the same scene while reducing image noise for cleaner night-time footage.
• MD 2.0 Human & Vehicle Detection: Onboard AI-driven video analytics distinguish between people and vehicles, cutting down false alerts from wind, animals, or lighting changes.
• Efficient H.264 / H.265+ Compression: Reduces bandwidth and storage requirements without sacrificing image quality.
• IP67 & IK10 Rated: Fully weatherproof and impact-resistant housing suited to harsh outdoor environments and high-vandalism locations.
• Flexible Power & Storage: Runs on 12V DC or PoE for simplified cabling, with a built-in microSD slot supporting up to 256GB of local storage.
• Integrated Audio & Alarm I/O: One-channel audio and alarm input/output support two-way communication and integration with third-party alarm systems.

Built for Reliable Perimeter and Entry Monitoring

The LXIP7542W-28SD is well suited to businesses, schools, warehouses, and residential complexes that need dependable coverage of entrances, corridors, loading areas, and car parks. Its combination of a wide 2.8mm lens, true WDR, and long-range IR makes it effective for continuous 24/7 monitoring, while the human and vehicle detection analytics help security staff prioritise genuine events over nuisance alarms. The vandal- and weather-resistant housing also makes it a practical option for exposed outdoor mounting positions where durability matters as much as image quality.

What's in the Box

• LXIP7542W-28SD PRO-X 4MP Dome IP Camera
• Mounting screws and installation template
• Waterproof cable gland/connector accessories
• Quick start guide

Frequently Asked Questions

Does this camera support Power over Ethernet (PoE)?
Yes, it can be powered via PoE or a standard 12V DC supply, giving installers flexibility depending on existing cabling.

Can it detect vehicles as well as people?
Yes, the built-in MD 2.0 analytics engine is designed to classify and flag both human and vehicle movement, reducing false alerts from other sources.

Is this camera suitable for outdoor use?
Yes, it carries an IP67 weatherproof rating and IK10 impact resistance, making it suitable for exposed outdoor installations as well as indoor areas.
