LTS PRO-X 4MP Starlight IP Dome Camera (LXIP7142W-28M)

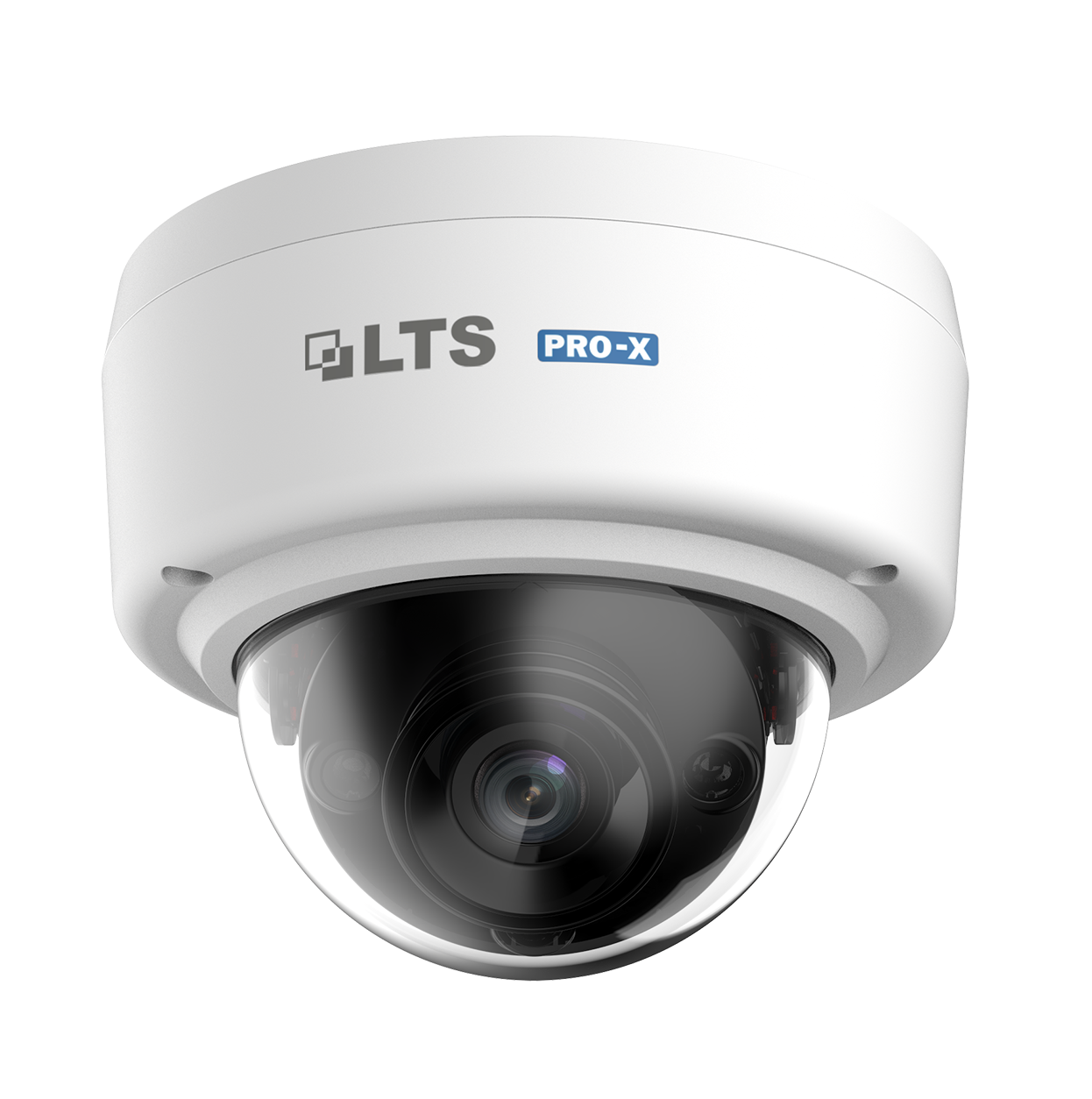

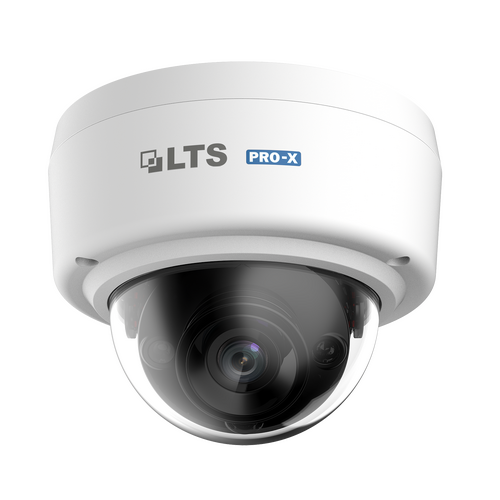

The LTS PRO-X LXIP7142W-28M is a 4MP fixed-lens dome network camera built for reliable day-and-night surveillance in demanding commercial and residential environments. Featuring Starlight low-light technology, a wide 2.8mm fixed lens and rugged IP67/IK10 housing, this dome delivers crisp 2688 x 1520 resolution imaging while standing up to dust, moisture, and physical impact. As part of LTS's NDAA-compliant PRO-X range, it is designed to integrate seamlessly with PRO-X NVR systems for a fully compliant, end-to-end video security solution.

Key Features

• 4MP Starlight Sensor: Captures detailed 2688 x 1520 video at up to 20 fps using a 1/3" progressive scan CMOS sensor.
• Fixed 2.8mm Lens: Offers a wide field of view suited to entryways, retail floors, and general area monitoring.
• Exceptional Low-Light Performance: Rated at 0.008 Lux (Color, F1.6, 30 IRE) and down to 0 Lux with IR illumination engaged.
• Matrix IR Illumination: Built-in IR LEDs extend night vision range up to approximately 98 feet (30m).
• 120dB True WDR & 3D DNR: Balances high-contrast scenes and reduces image noise for clearer footage in challenging light.
• Smart Compression: Supports H.264 and H.265 encoding to reduce bandwidth and storage demands without sacrificing image quality.
• Onboard Intelligent Video Analytics (IVS): Enables smarter event-based monitoring at the edge.
• Local Storage: Accepts a MicroSD card up to 256GB for standalone recording.
• Rugged, Flexible Power Options: IP67 weatherproof and IK10 vandal-resistant rated housing, powered via PoE or 12VDC.

Built for Real-World Deployment

This dome camera is well suited to outdoor and indoor installations where durability and image clarity are priorities, such as building perimeters, car parks, warehouses, retail entries, and office corridors. The vandal-resistant IK10 dome housing makes it a strong choice for publicly accessible areas prone to tampering, while PoE support simplifies cabling for new or retrofit CCTV installations. As an NDAA-compliant PRO-X model, it's also a fitting choice for government, education, and other projects with compliance requirements.

What's in the Box

• LXIP7142W-28M 4MP Dome Camera
• Mounting screws and template
• Installation/quick start guide
• Waterproof cable gland (where applicable)

Frequently Asked Questions

Is this camera compatible with existing LTS NVRs?
It is designed to pair with PRO-X series NVRs for full feature compatibility; compatibility with LTS Platinum NVRs may be limited.

Can this camera be powered without a PoE switch?
Yes, it supports both PoE and a standard 12VDC power supply.

How far can the built-in infrared see at night?
The matrix IR LEDs provide effective night vision illumination out to roughly 98 feet (30 metres).
