LTS PRO-X 4MP Varifocal IP Dome Camera with Human & Vehicle Detection

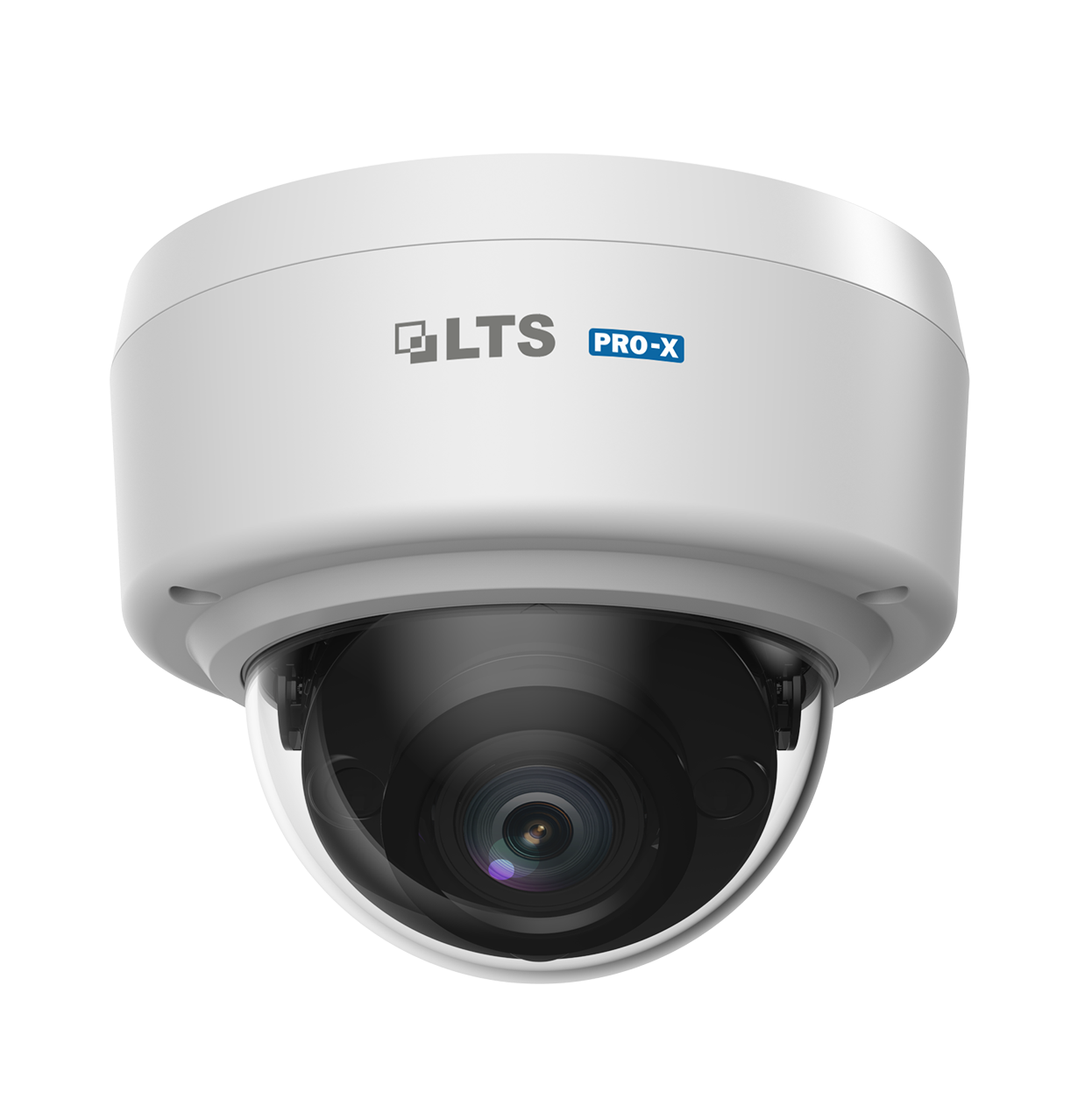

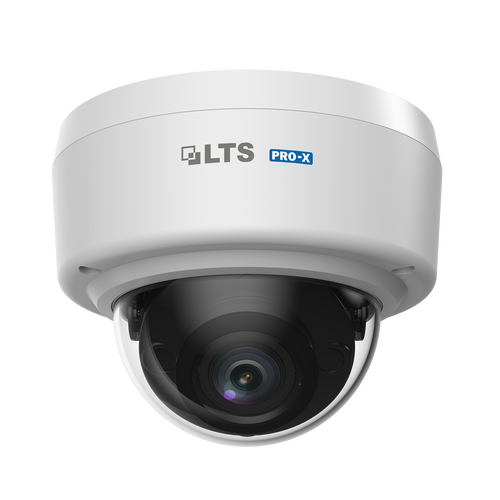

LTS PRO-X LXIP7743W-SDZ 4MP Varifocal IP Dome Camera

The LTS PRO-X LXIP7743W-SDZ is a professional-grade 4MP network dome camera built for installers who need flexible framing and dependable performance in demanding outdoor environments. Featuring a 2.7-13.5mm motorised varifocal lens, a rugged IP67/IK10-rated housing, and onboard MD 2.0 analytics for human and vehicle classification, this dome is designed to deliver clear, actionable footage around commercial premises, warehouses, retail sites, and perimeter applications. As part of the NDAA-compliant PRO-X line, it suits government, education, and enterprise deployments where supply-chain compliance is a requirement.

Key Features

• 4MP Resolution: Captures detailed 2688 x 1520 video at up to 30fps for sharp identification of people and vehicles.
• 2.7-13.5mm Varifocal Lens: Motorised zoom allows installers to fine-tune the field of view on-site without swapping lenses.
• 120dB True WDR & 3D DNR: Balances harsh contrast between bright and shadowed areas while reducing noise in low-light footage.
• Starlight Low-Light Performance: Rated to 0.005 Lux in colour mode, with Matrix IR illumination extending visibility to roughly 40m (131ft) in complete darkness.
• MD 2.0 Human & Vehicle Detection: Onboard analytics reduce false alerts by filtering out irrelevant motion such as blowing leaves or shadows.
• Smart H.264/H.265 Compression: Cuts bandwidth and storage requirements while preserving image quality.
• IP67 & IK10 Rated: Fully weatherproof and impact/vandal resistant, suited to exposed outdoor mounting locations.
• Flexible Power & Storage: Supports PoE or 12VDC power, plus a microSD slot for up to 256GB of local recording.
• Audio & Alarm I/O: Built-in audio in/out and alarm in/out terminals support two-way communication and integration with external sensors or sirens.

Built for Real-World Surveillance

The varifocal lens and vandal-resistant dome housing make the LXIP7743W-SDZ a strong fit for entrances, loading docks, car parks, and building perimeters where installers need to adjust the angle of view after mounting. Combined with MD 2.0 detection, it helps security teams quickly filter recorded events for genuine human or vehicle activity, saving time when reviewing footage after an incident. Its NDAA-compliant status also makes it a practical choice for government contracts, schools, and organisations with strict procurement policies.

What's in the Box

• LXIP7743W-SDZ 4MP PRO-X varifocal dome camera
• Mounting bracket and screw kit
• Installation template
• Waterproof connector for network cable
• Quick start guide

Frequently Asked Questions

Does this camera require a separate PoE injector?
No, as long as your NVR or network switch supports PoE, the camera can be powered directly over the same Ethernet cable used for data. A 12VDC power supply can also be used where PoE isn't available.

Can the lens angle be adjusted after installation?
Yes, the 2.7-13.5mm motorised varifocal lens can be adjusted remotely through the camera's web interface or connected NVR, so installers don't need to physically access the lens to refine the field of view.

Is this camera compatible with LTS NVRs?
Yes, the LXIP7743W-SDZ is designed to integrate with LTS PRO-X and Platinum series NVRs, as well as most standard ONVIF-compliant recording platforms.
