LTS LTH-MD06-2 2-Wire 6-Channel Video/Audio Intercom Distributor

LTS LTH-MD06-2 2-Wire 6-Channel Video/Audio Distributor

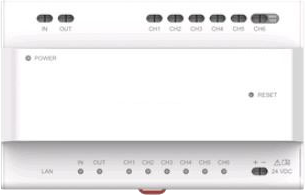

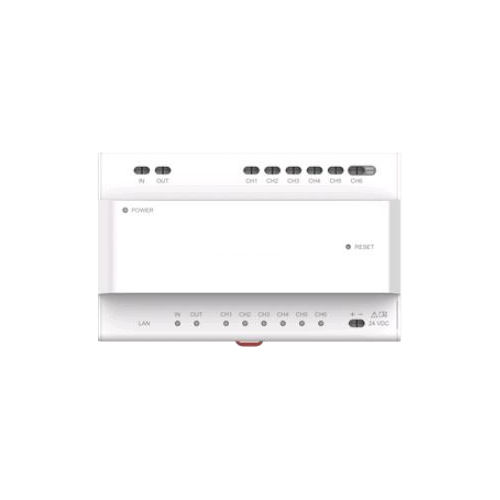

The LTS LTH-MD06-2 is a 2-wire power and data distributor built for LTS server-based video intercom systems. Positioned between the outdoor door station and up to six indoor monitors, it simplifies cabling by carrying both power and audio/video signal over a simple two-core cable run, while also feeding the system's network connection through a built-in Ethernet port. It is a core building block for apartment blocks, townhouse complexes, offices and multi-unit residential sites running LTS 2-wire intercom hardware.

Key Features

• 2-Wire Design: Distributes audio, video, and power over standard 2-wire (18/6) cabling, reducing the need for complex Cat5/Cat6 runs at every station.
• 6-Channel Capacity: Supports connection to up to six indoor or outdoor intercom stations from a single unit, ideal for small-to-mid sized multi-tenant buildings.
• Integrated Networking: Includes a 10/100 Ethernet port so the whole intercom system can be linked into the same LAN as the outdoor station and NVR.
• Cascadable Interfaces: Six two-wire cascade ports allow the distributor to be daisy-chained or expanded for larger installations.
• Status Indicators: Built-in interface LEDs give an at-a-glance view of network and channel status for easier troubleshooting.
• Power Supply Included: Ships with a 24V DC power adaptor, so no separate power accessory needs to be sourced.
• Compact Wall-Mount Footprint: Slim 200 x 140 x 15.1mm housing with a surface mount bracket for tidy installation in comms cupboards or riser cabinets.
• Wide Operating Range: Rated for -10°C to 50°C operation, suitable for indoor plant rooms and semi-exposed installation points.

Typical Use Case

The LTH-MD06-2 is typically installed in the comms room or riser of an apartment building, connecting an LTS 2-wire outdoor door station (such as the LTH-M201-C) back to multiple in-suite indoor monitors like the LTH-D301GY-WIFI. Installers wire the outdoor station and indoor stations through the distributor, then link the unit's Ethernet port to the site router so residents can receive visitor call notifications, view the door camera, and remotely unlock doors via the LTS Connect app.

What's in the Box

• 1 x LTH-MD06-2 6-Channel 2-Wire Distributor
• 1 x 24V DC Power Adaptor
• 1 x Surface Mount Bracket
• Mounting screws and hardware

Frequently Asked Questions

Q: How many intercom stations can one LTH-MD06-2 support?
A: Each unit supports up to six indoor or outdoor stations via its 2-wire cascade interfaces, making it suited to smaller buildings or as a building block for larger multi-distributor layouts.

Q: Does this unit need a separate power supply?
A: No, it comes with a 24V DC power adaptor included, and it in turn powers the connected 2-wire intercom stations.

Q: Can the LTH-MD06-2 be used with LTS's app-based intercom features?
A: Yes, because it includes a 10/100 Ethernet port, the distributor can be connected to the site network so the system can integrate with the LTS Connect app for remote call notifications and video viewing.
