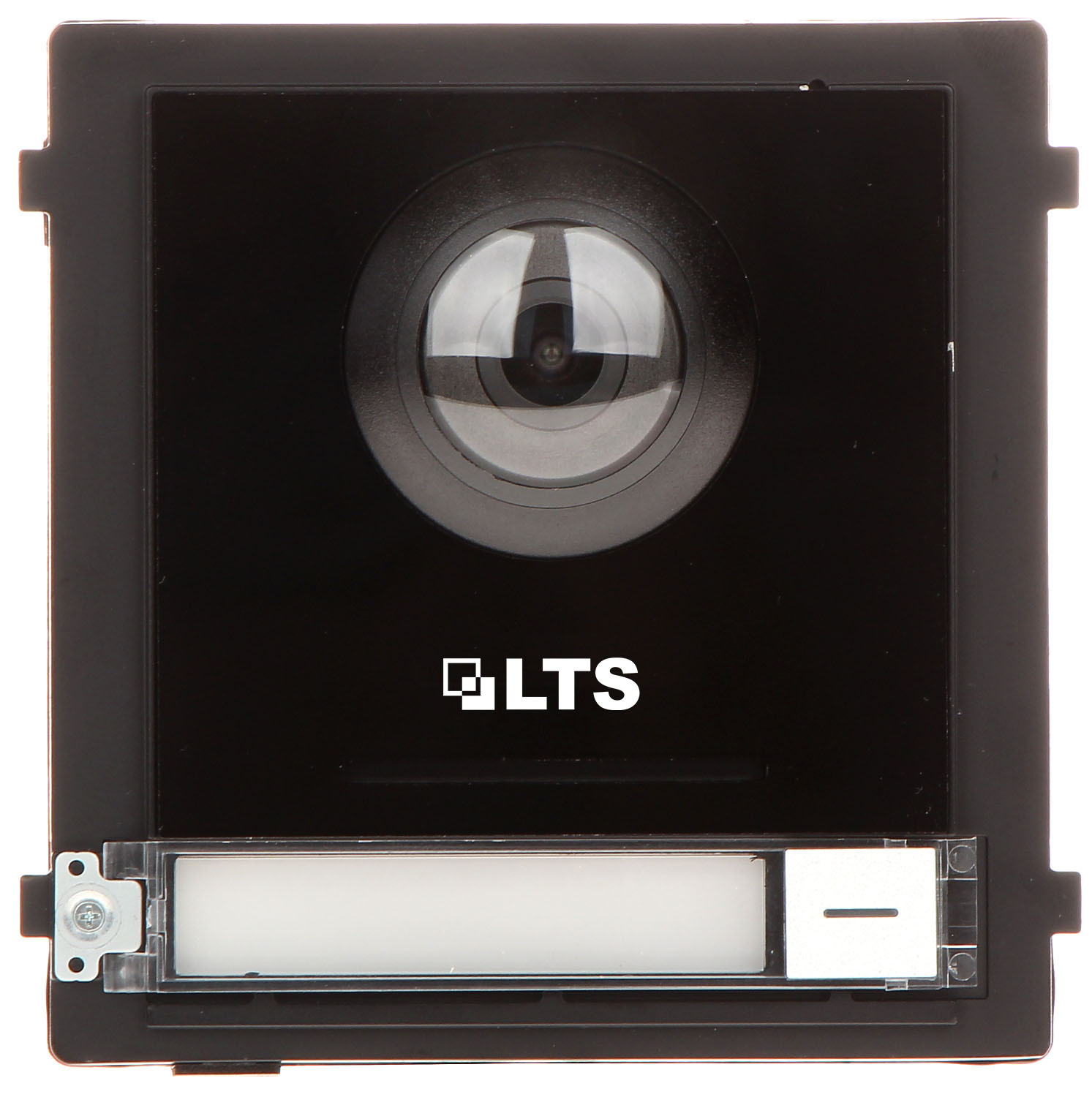

LTS LTH-M201-C-2 2-Wire Intercom Camera Module with IR

LTS LTH-M201-C-2 2-Wire Intercom Camera Module

The LTS LTH-M201-C-2 is a 2-wire outdoor door station camera module designed for simple, low-cost video intercom installation using only two conductors for power, video, and audio. It captures 2.0MP (1920x1080) footage through a 180-degree fisheye lens, giving installers a wide field of view at the entry point while simplifying cabling in retrofit and new-build applications alike. Built for LTS 2-wire intercom systems, this module pairs with compatible indoor stations and power modules to create a complete door entry and monitoring solution, and it also integrates with LTS NVRs for centralised recording and playback.

Key Features

• 2.0MP resolution (1920x1080) at up to 30fps for clear visitor identification
• 180-degree horizontal fisheye lens for a wide angle view at the door
• Built-in infrared illumination for visibility in low-light conditions, up to approximately 15ft
• Two-way audio via built-in omnidirectional microphone and loudspeaker with echo cancellation
• H.264 video compression for efficient storage and streaming
• BLC, DNR, and WDR image processing for improved clarity in challenging lighting
• Tamper alarm for added installation security
• IP65-rated weatherproof housing suited to outdoor mounting
• Operates on 24VDC and is compatible with LTS NVR systems

Ideal Applications

This camera module suits residential and light commercial entryways where a simple two-wire cabling run is preferred over IP or PoE infrastructure. It is well suited to gated communities, townhouses, offices, and multi-tenant buildings that want an integrated video door entry system that can also feed footage into an existing LTS NVR setup. Note that the module itself cannot power a door lock or strike, so a separate power supply with a dry contact relay is required if lock release functionality is needed.

What's in the Box

• LTH-M201-C-2 2-Wire Intercom Camera Module
• Mounting hardware and screws
• Quick start guide

Frequently Asked Questions

Can this module power an electric door lock directly?
No. The door station cannot supply power to a lock; a separate power source with a dry contact relay is required for lock release.

Does this module work with LTS NVRs?
Yes, the LTH-M201-C-2 is compatible with LTS NVR systems for centralised video recording alongside your intercom footage.

What is the difference between this and the LTH-M201-C?
The LTH-M201-C-2 is the 2-wire version designed to run on a simple two-conductor cable, whereas the original LTH-M201-C is a PoE/IP variant. The C-2 is listed as the direct replacement module for 2-wire installations.

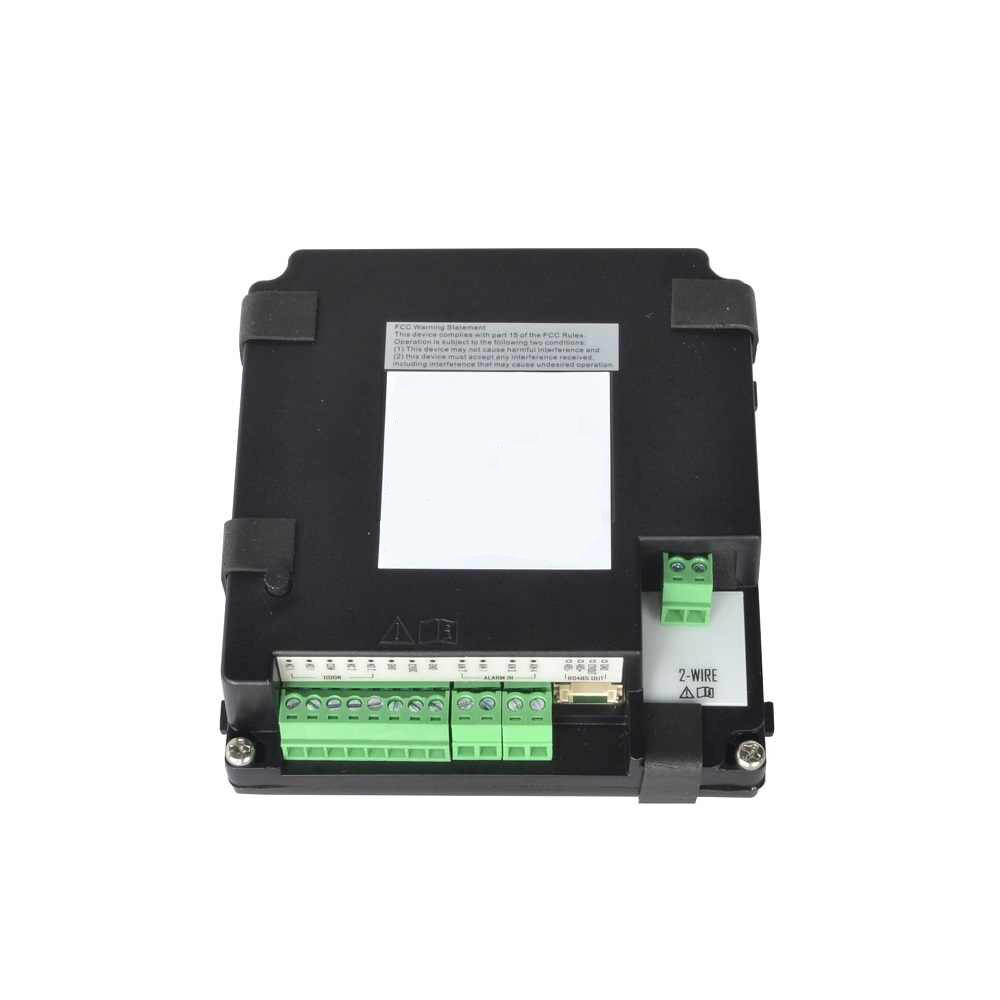

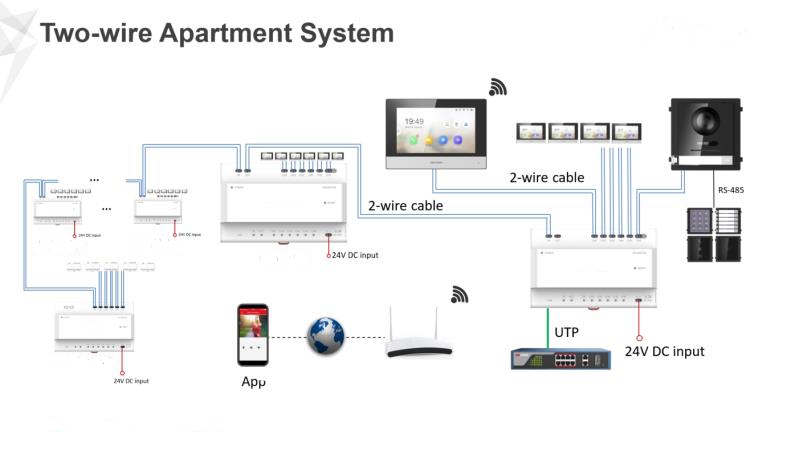

Product Images & Diagrams

Additional Resources

• Quick Guide Download
• Cabling Guide - Link
