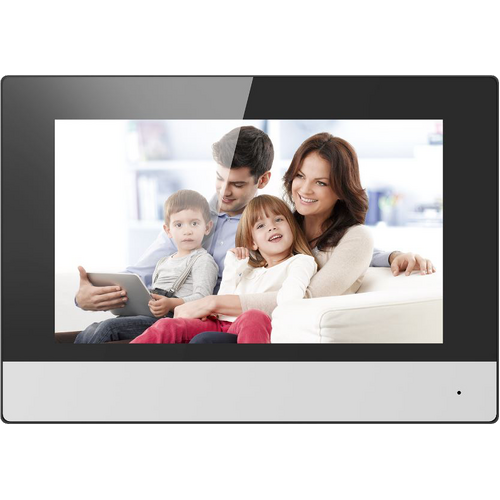

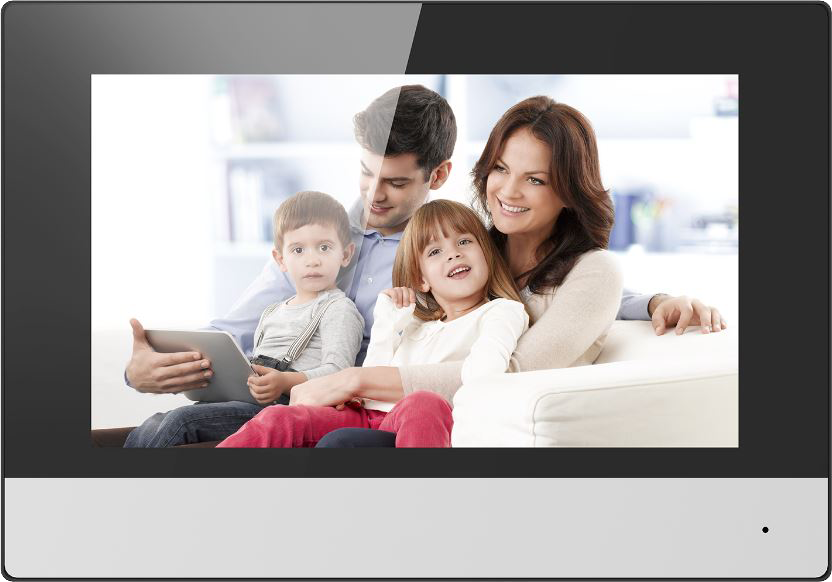

LTS 2-Wire Video Intercom Indoor Monitor 7" Touchscreen with Wi-Fi (Black)

LTS 2-Wire Video Intercom Indoor Monitor 7" Touchscreen with Wi-Fi (Black)

The LTS LTH-D301GY-WIFI-2 is a 2-wire video intercom indoor monitor designed for apartments, townhouses and small commercial entries where running new network cabling is impractical. It connects to a compatible LTS 2-wire door station and main distributor unit using just two conductors for both power and data, simplifying retrofit installations while still delivering full video and two-way audio calling from the front door. A crisp 7-inch capacitive touchscreen and built-in Wi-Fi give residents an easy way to see, hear and remotely unlock for visitors from within the unit or via a mobile app.

Key Features

• 7-inch capacitive touchscreen with a user-friendly on-screen interface for calling, viewing and configuration
• 2-wire connectivity for power and network signal over a single cable pair, ideal for existing or hard-to-wire buildings
• Built-in microphone and speaker for full handsfree two-way audio with visitors
• Integrated Wi-Fi 802.11b/g/n for wireless linking to the building network and mobile client app
• Micro SD/TF card slot (up to 32GB) for storing captured snapshots and message recordings
• Remote door unlocking and live viewing of linked door stations and cameras from the monitor or smartphone app
• Compatible with LTS NVMS V3 management software for multi-unit or building-wide configuration
• Wide operating temperature range of -10°C to 50°C suited to varied indoor Australian conditions

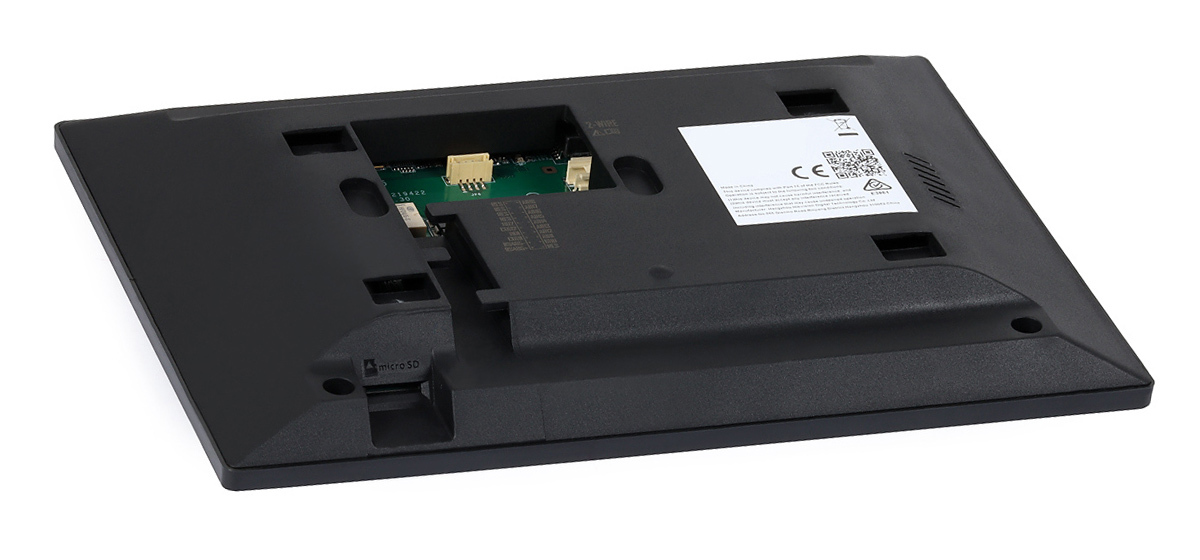

• Slim wall-mount profile finished in black with silver trim, sized 200(W) x 140(H) x 15.1mm(D)

Reliable Entry Monitoring for Apartments and Multi-Dwelling Units

This monitor is best suited to residential and light commercial buildings already fitted with 2-wire intercom infrastructure, or new installations where minimising cable runs is a priority. Paired with an LTS 2-wire door station and distributor unit, it lets occupants visually verify visitors before granting access, view connected CCTV cameras at the entrance, and communicate hands-free without leaving the room. Support for multiple indoor monitors per apartment allows the system to be extended to several rooms or units as required.

What's in the Box

• LTH-D301GY-WIFI-2 2-Wire Indoor Monitor
• Mounting bracket and wall-fixing hardware
• Quick installation guide

Frequently Asked Questions

Does this monitor need a separate network cable?
No. It uses a 2-wire connection for both power and data when paired with a compatible LTS 2-wire door station and distributor, though Wi-Fi is also available for app connectivity.

Can I access this intercom from my phone?
Yes. Once linked to Wi-Fi, the monitor supports remote viewing, calling and door unlocking through the LTS mobile client app.

How many of these monitors can I install per apartment?
Multiple indoor monitors can be linked to a single door station within the same apartment or unit for whole-home coverage; check system limits with your installer.

Product Images & Diagrams

Additional Resources

• Cabling Guide - Link
