LTS Platinum 5MP HD-TVI Fisheye Dome Camera – 1.1mm Fixed Lens

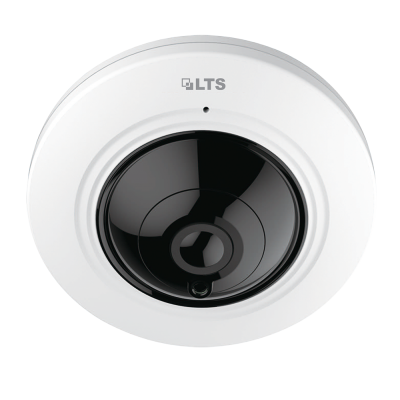

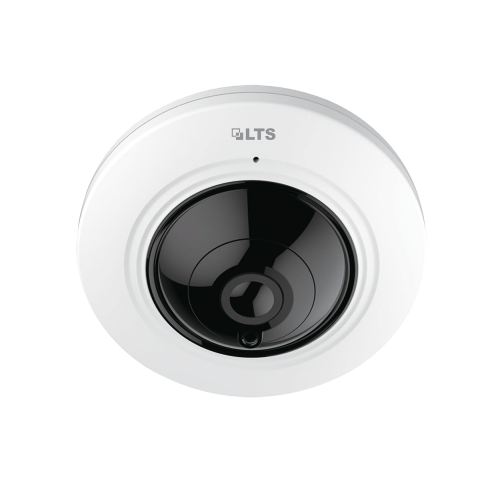

LTS Platinum 5MP HD-TVI Fisheye Dome Camera (CMHD7552F)

The LTS Platinum CMHD7552F is a 5MP HD-TVI fisheye dome camera built for indoor spaces that need complete situational awareness from a single mounting point. Fitted with a 1.1mm fixed lens, it delivers a true 360-degree horizontal field of view, letting installers replace several traditional cameras with one ceiling-mounted unit. As part of LTS's HD-TVI Platinum range, it integrates directly with existing coax-based TVI DVR infrastructure, making it a cost-effective upgrade path for retrofit projects.

Key Features

• 5MP High-Resolution Sensor: Captures detailed 2592x1944 footage at up to 12.5fps for clear identification of people and objects.
• 1.1mm Fisheye Lens: Provides a panoramic 360-degree horizontal view from a single camera, ideal for reducing camera count in open areas.
• Low-Light Performance: Rated at 0.01 Lux @ F1.2 with AGC enabled, dropping to 0 Lux when IR illumination is active.
• Matrix IR Illumination: Multiple 850nm Matrix IR LEDs extend usable night vision range for consistent monitoring after dark.
• DWDR, BLC & AGC: Digital wide dynamic range, backlight compensation, and automatic gain control work together to balance challenging lighting conditions.
• Built-In Audio: An integrated microphone plus RCA audio output supports one-channel audio pickup alongside video.
• HD-TVI Video Output: Plug-and-play compatibility with LTS Platinum HD-TVI DVRs and other TVI-compatible recorders, including OSD control via UTC.
• Low-Voltage Operation: Runs on a simple 12VDC supply at approximately 5.5W, simplifying power planning for multi-camera installs.

Ideal Applications

Because of its 360-degree fisheye coverage, the CMHD7552F is particularly well suited to indoor environments such as retail floors, reception areas, warehouses, offices, and hallway intersections where a wide, unobstructed view is more valuable than a narrow, zoomed-in perspective. Its built-in microphone also makes it useful in spaces where audio context - such as conversations at a counter or activity near a point-of-sale terminal - adds value to recorded footage. As an indoor-rated fixture, it is best deployed in ceilings, lobbies, and covered areas rather than exposed outdoor locations.

What's in the Box

• CMHD7552F Fisheye Dome Camera
• Mounting screws and installation hardware
• Quick-start installation guide

Frequently Asked Questions

Is the CMHD7552F suitable for outdoor use?
No. This model is designed for indoor installation only and is not weatherproof.

Can this camera be used with an existing analog DVR?
Yes, provided the DVR supports the HD-TVI signal format; it will output standard TVI video for compatible recorders.

Does the fisheye lens require dewarping to view properly?
Many compatible TVI DVRs and viewing software support dewarping to correct the panoramic image into standard rectilinear views, though basic panoramic viewing is also possible without it.
