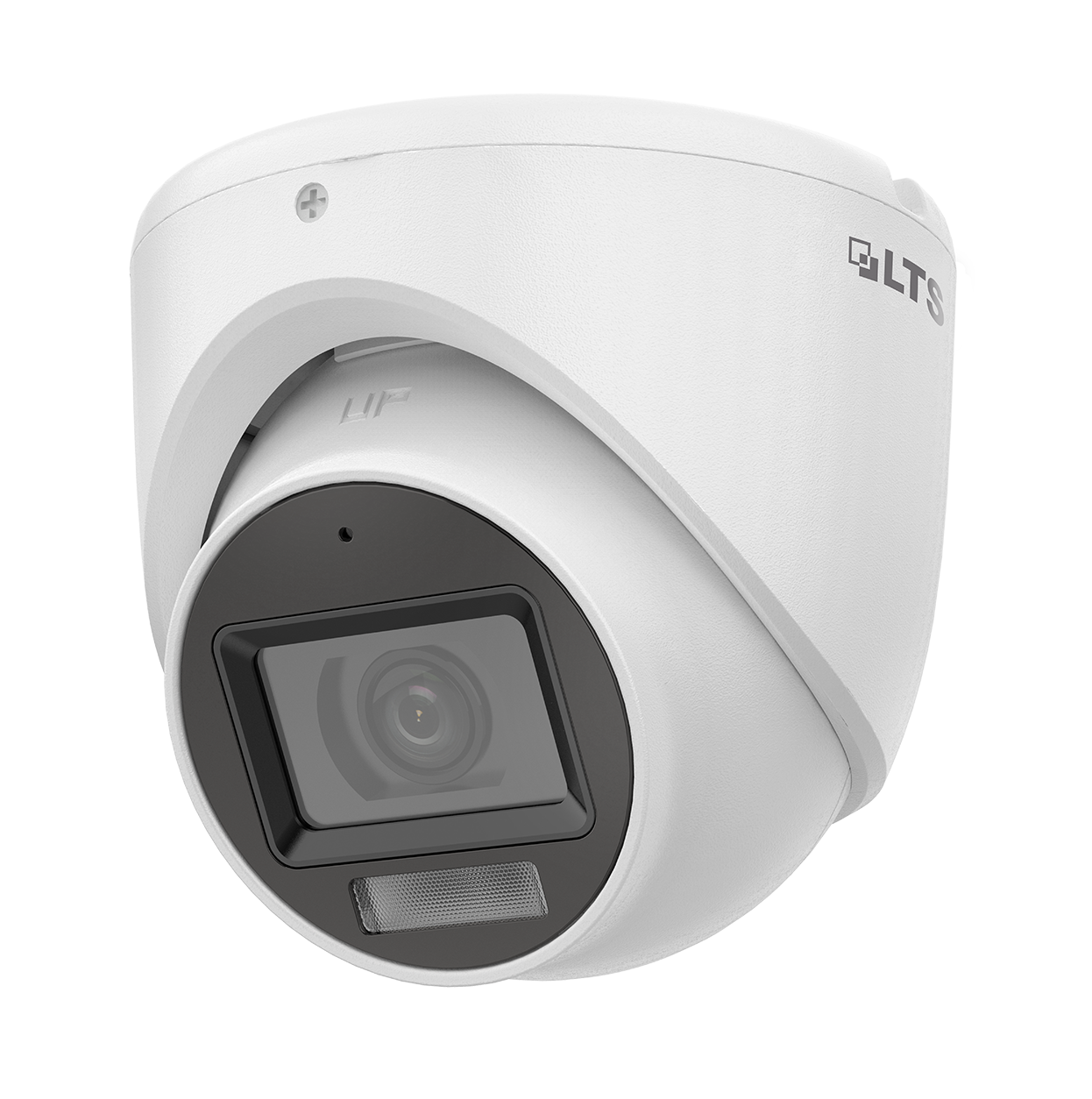

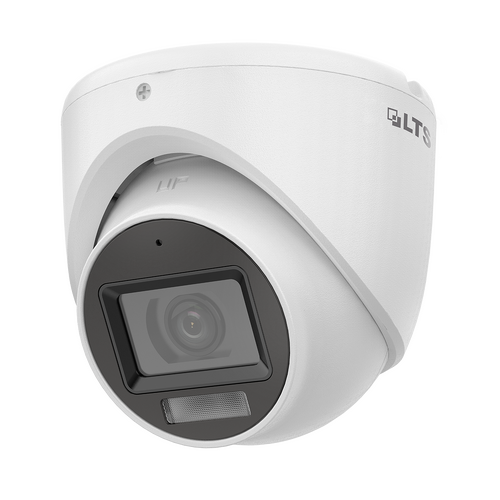

LTS Platinum 5MP Dual-Light TVI Turret Camera 2.8mm - CMHT2152-28LFA

LTS Platinum CMHT2152-28LFA 5MP Dual-Light TVI Turret Camera

The LTS Platinum CMHT2152-28LFA is a 5MP dual-light turret camera built for installers who need clear colour footage day and night without swapping out existing coax infrastructure. Combining a fixed 2.8mm lens with synchronised infrared and white-light illuminators, this turret is designed to deliver sharp, high-resolution imaging across driveways, entryways, retail floors, and perimeter zones. As a 4-signal-in-1 device, it works seamlessly with TVI, CVI, AHD, and CVBS recorders, making it a flexible drop-in upgrade for mixed-brand analog systems.

Key Features

• 5MP High-Resolution Sensor: Captures detailed 2960 x 1665 video for clearer identification of faces, plates, and activity.
• Dual-Light Night Vision: Combines infrared range of up to approximately 30m (98ft) with supplemental white light reaching around 20m (66ft) for enhanced colour visibility after dark.
• Event-Triggered White Light: Automatically activates the white-light LEDs on motion or alarm events to deter intruders and improve nighttime colour capture.
• 4-Signals-in-1 Compatibility: Switches between TVI, CVI, AHD, and CVBS outputs, simplifying integration with existing DVRs.
• Fixed 2.8mm Lens: Provides a wide field of view suited to general area monitoring and entryway coverage.
• IP67-Rated Housing: Weatherproof and dust-resistant construction supports reliable outdoor performance in harsh Australian climates.
• Audio Over Coax: Built-in microphone enables audio capture alongside video using the existing coaxial cable run.
• True WDR Processing: Helps balance bright and shadowed areas within the same scene for more usable footage in high-contrast lighting.
• Low-Profile Turret Design: Compact, vandal-resistant form factor suitable for ceilings, eaves, and walls.

Typical Applications

This camera suits residential and light commercial installations where a cost-effective, coax-based upgrade is needed alongside modern colour night vision. Common placements include front doors, driveways, loading docks, retail entrances, and warehouse perimeters, where the combination of infrared reach and white-light deterrence helps capture usable evidence around the clock. Because it supports four analog signal types, it is also a practical choice for technicians servicing legacy TVI, CVI, or AHD-based DVR systems without a full recorder replacement.

What's in the Box

• CMHT2152-28LFA Turret Camera
• Mounting screws and template
• Waterproof rubber connector kit
• Quick installation guide

Frequently Asked Questions

Does this camera require a specific type of DVR?
No. It is a 4-signal-in-1 camera and can operate on TVI, CVI, AHD, or CVBS-based recorders, though the DVR must support the corresponding format for full resolution.

Will the white light stay on constantly at night?
No, the white-light illuminator is designed to trigger on motion or alarm events rather than remain continuously active, helping preserve the LED lifespan and avoid unnecessary light pollution.

Is this camera suitable for outdoor installation?
Yes. The IP67-rated housing is built to withstand rain, dust, and temperature extremes typical of outdoor Australian environments.
