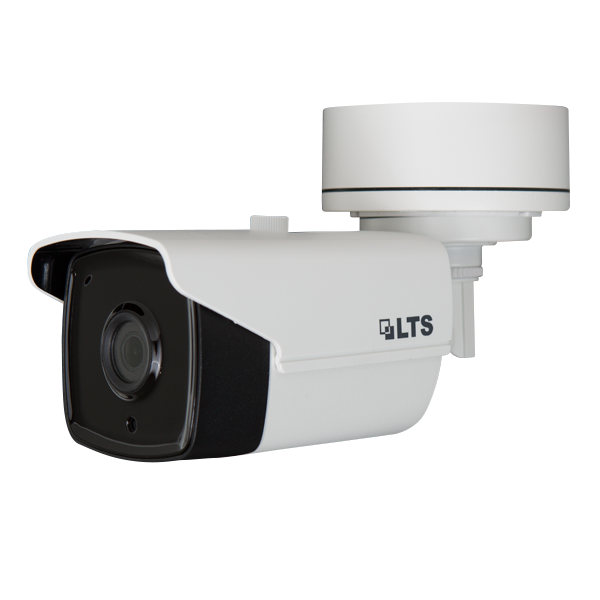

LTS Platinum CMHR92T2 3MP HD-TVI Bullet Camera with 3.6mm Fixed Lens

LTS Platinum CMHR92T2 3MP HD-TVI Bullet Camera

The LTS Platinum CMHR92T2 is a 3-megapixel HD-TVI bullet camera built for reliable outdoor and indoor surveillance in homes, retail stores, warehouses, and commercial properties. Featuring a 3.6mm fixed lens for a wide general-purpose field of view, this camera delivers sharp, high-resolution footage over standard coaxial cable, making it an ideal upgrade for existing analog CCTV systems without the cost of rewiring. Paired with a compatible HD-TVI 3.0 recorder, the CMHR92T2 offers a straightforward way to boost image clarity while keeping installation simple and budget-friendly.

Key Features

• 3MP Resolution: Captures detailed video at 2052x1536 effective pixels for clearer identification of faces, license plates, and activity.
• 3.6mm Fixed Lens: Provides a wide-angle view suited to general area monitoring such as entrances, car parks, and yards.
• Long-Range Infrared: Dual matrix IR LEDs extend night vision up to 40 metres (131ft) for reliable low-light and after-hours coverage.
• True Day/Night (ICR): Automatically switches between colour and black-and-white modes as lighting conditions change.
• Weatherproof IP66 Housing: Rated for outdoor use, standing up to rain, dust, and harsh weather conditions.
• HD-TVI Signal Output: Transmits high-definition video over standard coaxial cable, simplifying upgrades from analog systems.
• OSD Menu via UTC: Camera settings can be adjusted remotely through the DVR using coaxial control, without needing to physically access the camera.
• Junction Box Included: Simplifies cable management and mounting for a cleaner installation.

Reliable Coverage for Everyday Security Needs

The CMHR92T2 is well suited to general surveillance applications where a balance of image quality, night vision range, and affordability is required. Its wide 3.6mm lens and durable outdoor-rated housing make it a practical choice for covering driveways, loading docks, storefronts, and perimeter walkways. Because it uses HD-TVI technology, it's also a cost-effective way to upgrade an ageing analog CCTV system to higher-resolution video while reusing existing coaxial cabling infrastructure.

What's in the Box

• CMHR92T2 3MP HD-TVI Bullet Camera
• Mounting bracket and hardware
• Junction box
• Weatherproof cable connectors

Frequently Asked Questions

Does this camera work with any DVR?
No. The CMHR92T2 must be connected to an HD-TVI 3.0 compatible DVR to achieve full 3MP resolution and to access OSD menu controls via coaxial cable.

Is the CMHR92T2 suitable for outdoor installation?
Yes, it carries an IP66 weatherproof rating, making it appropriate for exposed outdoor locations such as building exteriors and car parks.

How far can the infrared night vision see?
The built-in matrix IR LEDs support night vision at distances of up to approximately 40 metres (131ft) in suitable conditions.
