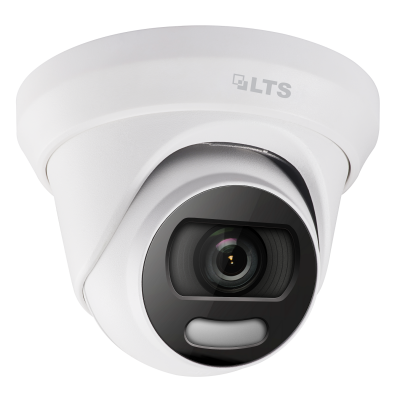

LTS Platinum CMHT1722W-CF 2MP TVI Colour247 Turret Camera (2.8mm)

LTS Platinum CMHT1722W-CF 2MP TVI Colour247 Turret Camera

The LTS Platinum CMHT1722W-CF is a 2-megapixel HD-TVI turret camera built for installers who need reliable full-colour footage around the clock, not just sharp black-and-white night vision. Using a bright F1.0 lens and a built-in white-light illuminator, this Colour247 model keeps capturing true colour detail on faces, vehicles and licence plates long after the sun goes down, while its fixed 2.8mm lens delivers a wide field of view that suits entryways, car parks and general perimeter coverage.

Key Features

• 2MP Full HD sensor capturing 1920x1080 resolution for crisp, detailed images.
• Colour247 technology with an integrated white LED illuminator for full-colour night imaging instead of standard monochrome IR.
• 2.8mm fixed lens providing a wide-angle view ideal for covering entrances, driveways and open areas.
• 4-in-1 flexible output switchable between TVI, AHD, CVI and CVBS so it can slot into almost any existing analogue-style DVR.
• 120dB Wide Dynamic Range (WDR) and 3D DNR to balance harsh backlighting and reduce grainy noise in low light.
• Back Light Compensation (BLC) for clearer subject detail when shooting toward bright light sources.
• IP67-rated weatherproof housing for confident indoor or outdoor installation in Australian conditions.
• On-screen menu control via UTC, letting installers adjust settings directly from a compatible Platinum HD-TVI DVR without a separate controller.
• Programmable motion detection across up to four user-defined zones to reduce false alerts.

Built for Everyday Colour Surveillance

This turret camera is a practical fit for retail storefronts, warehouses, home driveways and small business exteriors where identifying colour details, such as clothing or vehicle paint, matters more than long-range infrared reach. Because it runs on the widely supported HD-TVI format and offers backward compatibility with AHD, CVI and CVBS, it's a straightforward drop-in upgrade for sites already running an LTS Platinum DVR or most other analogue-style recorders.

What's in the Box

• CMHT1722W-CF Turret Camera
• Mounting bracket and screw set
• Drill hole template
• Waterproof cable connector
• Quick installation guide

Frequently Asked Questions

Does this camera record in colour at night?
Yes. The Colour247 white-light illuminator keeps the image in full colour after dark, rather than switching to standard black-and-white infrared.

What recorders is it compatible with?
It works with LTS Platinum HD-TVI DVRs and any recorder supporting TVI, AHD, CVI or CVBS signals, thanks to its 4-in-1 switchable output.

Is the camera suitable for outdoor mounting?
Yes, it carries an IP67 weatherproof rating, making it suitable for exposed outdoor locations as well as indoor installations.
