LTS Platinum CMHT1352-28 5MP HD-TVI Turret Camera 2.8mm (EOL – See CMHT1752N-28F)

LTS Platinum CMHT1352-28 5MP HD-TVI Turret Camera – 2.8mm Fixed Lens

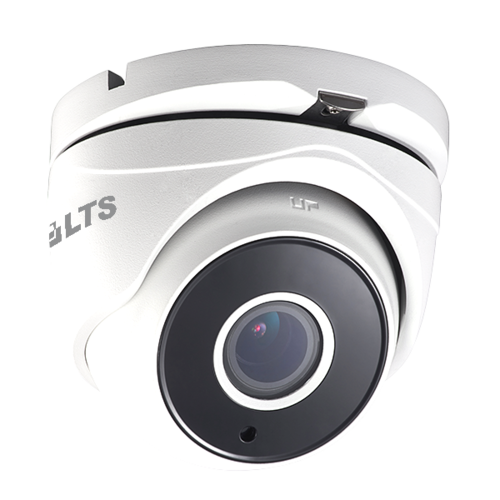

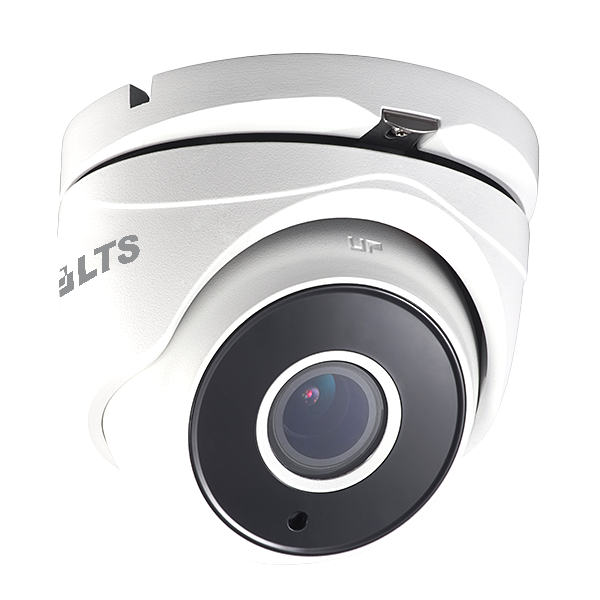

The LTS Platinum CMHT1352-28 is a 5-megapixel HD-TVI turret camera built for reliable day-and-night surveillance in both indoor and outdoor environments. Housed in a compact turret body with an IP67 weatherproof rating, it pairs a wide-angle 2.8mm fixed lens with Matrix IR 2.0 illumination to deliver sharp, detailed footage around entrances, car parks, retail floors and perimeter areas. Please note this model has reached end-of-life status and has been superseded by the LTS Platinum CMHT1752N-28F, which offers a similar 5MP 2.8mm turret design with extended IR range and multi-format 4-in-1 switchable output (TVI/AHD/CVI/CVBS) for broader DVR compatibility.

Key Features

• 5MP High-Definition Imaging: Captures crisp 2560x1944 resolution video at up to 20fps for detailed identification of faces and license plates.
• 2.8mm Fixed Lens: Delivers a wide field of view suited to covering entryways, hallways and general area monitoring.
• Matrix IR 2.0 Night Vision: Two-array infrared LEDs extend visibility up to approximately 65ft (20m) in complete darkness.
• Ultra-Low Light Sensitivity: Rated at 0.008 Lux @F1.2, allowing usable colour images in near-dark conditions before switching to IR mode.
• Smart IR Technology: Automatically balances LED output to prevent overexposure of nearby objects at night.
• IP67 Weatherproof Housing: Built to withstand rain, dust and harsh outdoor conditions for long-term outdoor deployment.
• UTC Coaxial Control: On-screen menu adjustments can be made remotely via the coax cable from a compatible HD-TVI DVR.
• Simple 12V DC Power: Straightforward low-voltage power supply simplifies installation alongside standard CCTV wiring.

Typical Applications

This turret camera is well suited to small business, retail, warehouse and residential perimeter monitoring where a compact, discreet outdoor camera with dependable night vision is required. Its wide 2.8mm lens works well for covering loading docks, driveways, storefronts and building entry points, while its HD-TVI signal allows it to integrate into existing analog-based CCTV systems without a full network overhaul.

What's in the Box

• CMHT1352-28 5MP HD-TVI Turret Camera
• Mounting bracket and screws
• Installation template
• Waterproof cable gland/connector
• Quick start guide

Frequently Asked Questions

Is the CMHT1352-28 still available for purchase?
This model has been discontinued (EOL). Customers are directed to the LTS Platinum CMHT1752N-28F as the recommended direct replacement, which offers comparable 5MP 2.8mm turret performance with extended IR range and multi-format output.

What DVR do I need to use this camera?
The camera requires an HD-TVI 4.0 compatible DVR that supports 5MP HD-TVI input to achieve full 2560x1944 resolution and coax-based OSD control.

Can this camera be used outdoors?
Yes, the IP67-rated housing is designed for both indoor and outdoor installation, including exposure to rain and dust.
