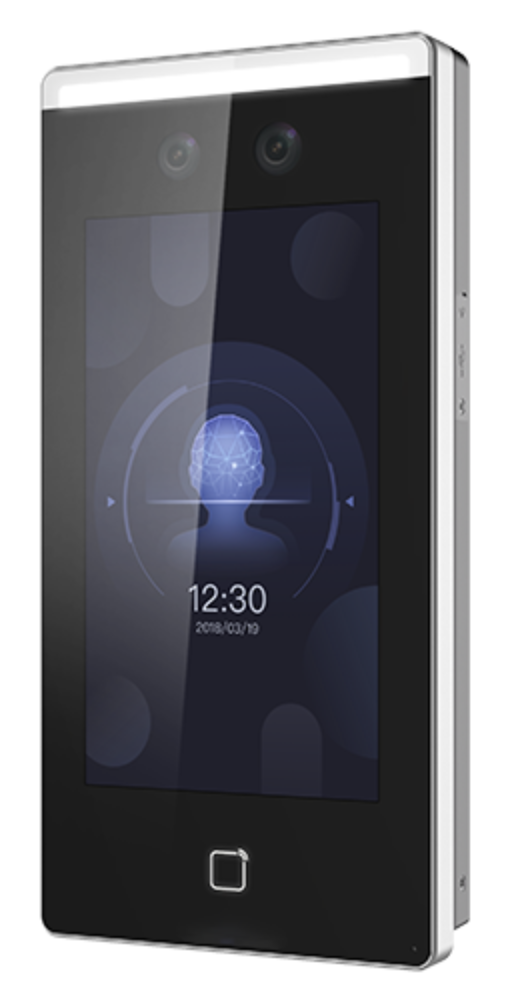

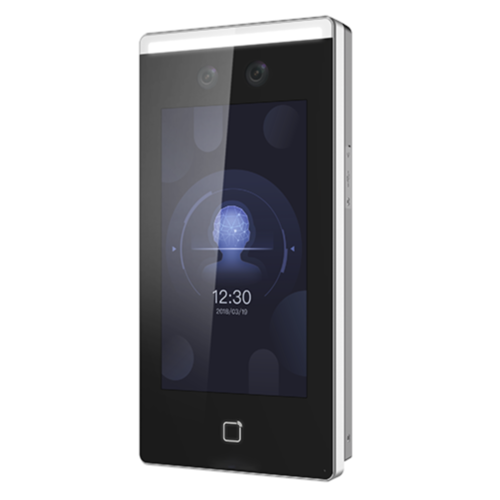

LTS LTK3607FM Facial Recognition Intercom & Access Control Terminal

LTS LTK3607FM Facial Recognition Intercom & Access Control Terminal

The LTS LTK3607FM is a 7-inch touchscreen access control terminal that combines facial recognition, card credentials, video intercom and door release into a single outdoor-rated unit. Built around a 2MP IP camera, it verifies identity in under a second while giving visitors a way to call through to an indoor station or your access control software. Because it runs on the same platform as other LTS Platinum cameras and NVRs, it drops into an existing surveillance and access control deployment without requiring a separate management app.

Key Features

• Fast 1:N Face Matching: Recognises enrolled users almost instantly using a built-in 2MP camera and adjustable-brightness LEDs for consistent results in low light.
• Large Capacity Database: Stores up to 6,000 face and/or MIFARE card profiles, making it suitable for offices, apartment complexes and multi-tenant buildings.
• Liveness/Anti-Spoofing Detection: Rejects photos, videos and other counterfeit attempts, adding a layer of protection beyond simple card or PIN entry.
• Built-In Video Intercom: Lets visitors call an indoor monitor or software client directly from the 7-inch touchscreen before being granted entry.
• NVR & VMS Integration: Visitor footage and audio can be recorded to a compatible NVR for playback, and the whole unit is managed from the same LTS client software used for cameras and recorders.
• Flexible Credentials: Supports face, MIFARE card, or user ID and password authentication, so sites can mix verification methods as needed.
• Time & Attendance Ready: Automatically logs check-in and check-out events during verification, useful for staff attendance tracking.
• Weatherproof Build: IP65-rated housing with a narrow-bezel touchscreen suits outdoor entry points, gates and building perimeters.
• Flexible Connectivity: Connects via wired TCP/IP or Wi-Fi on 12V DC power, and can control one door lock directly.

Where It Fits

The LTK3607FM suits any single-door entry point where an operator wants facial recognition, card access and intercom calling handled by one device. It is commonly installed at office and factory entrances, apartment or residential building doors, bank branches and other commercial premises where staff or residents need quick, hands-free access while visitors are screened and can call through before being let in.

What's in the Box

• LTK3607FM Facial Recognition Intercom/AC Terminal
• Mounting bracket and installation hardware
• Quick start guide

Frequently Asked Questions

Can it open a door on its own?
Yes, the terminal can trigger release on one door lock directly and also supports connection to a secure door controller for added tamper protection.

Does it work with existing LTS NVRs and software?
Yes, it is designed to integrate with the same LTS client software and NVR platform used for LTS Platinum cameras, so visitor video and audio can be stored alongside your existing footage.

How many people can be enrolled?
The terminal can store up to 6,000 face and/or card profiles, and enrollment can be done on the touchscreen itself or remotely through the software.
