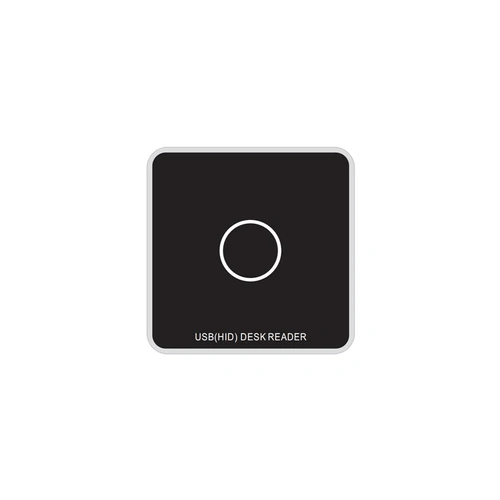

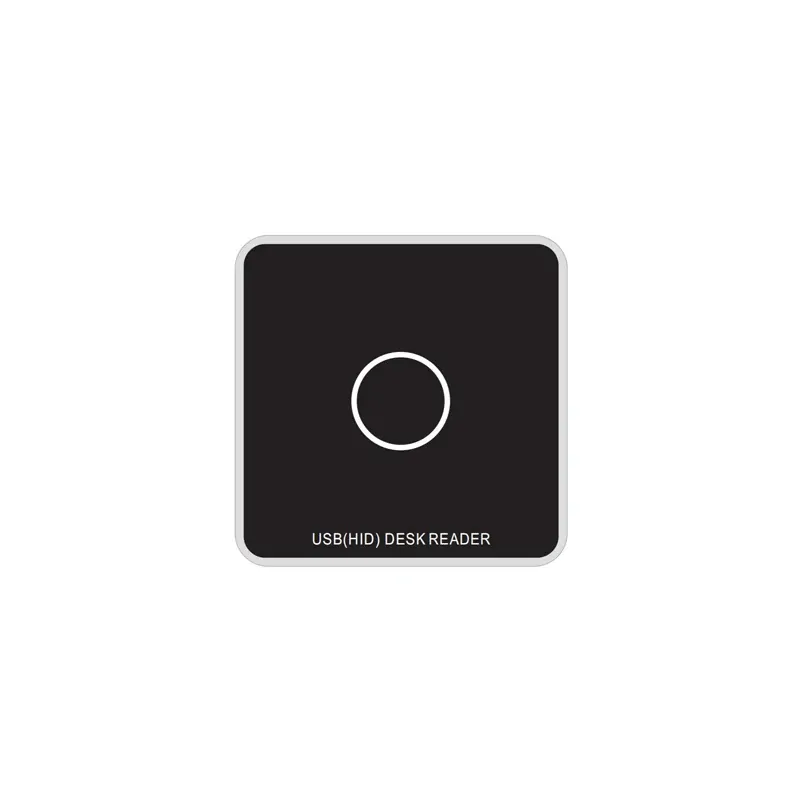

Akuvox ACR-CID12 USB Desktop UHF Card Issuing Reader/Writer

Akuvox ACR-CID12 USB Desktop UHF Card Issuing Reader/Writer

The Akuvox ACR-CID12 is a compact desktop device built for administrators who need to quickly enrol, read and issue ultra-high frequency (UHF) credentials for Akuvox intercoms and vehicle access control systems. Connecting to a PC via a simple USB cable, it eliminates the need for external power supplies and lets installers capture card codes in seconds, ready to be assigned to residents, staff or vehicles within the Akuvox platform.

Key Features

• Plug-and-play USB connection powered directly from the host computer (5VDC), so no separate power adapter is required.
• UHF card reading and writing compliant with EPCglobal UHF Class 1 Gen 2 and ISO 18000-6C standards for broad tag compatibility.
• Operates across the 860-960MHz UHF band, with configurable frequency spans for regional compliance.
• Effective read range of approximately 10cm, ideal for controlled, close-proximity card issuing at a front desk or admin station.
• Compact footprint of just 107 x 107 x 23mm, making it easy to place beside a keyboard or monitor.
• Built-in buzzer and status indicator light that beeps and flashes green to confirm a successful card read.
• Compatible with both Windows and iOS operating systems via the dedicated Akuvox configuration tool.
• Configurable output format, start bytes and output length so captured card data matches the Wiegand settings used on connected door phones or the ACR-CRP12 long-range reader.
• Robust, anti-interference design intended for stable, repeated use in busy administrative environments.

Typical Use Case

The ACR-CID12 is primarily used by installers and property managers setting up UHF vehicle tag or card-based access control alongside Akuvox door phones and the ACR-CRP12 long-range vehicle reader. Rather than issuing credentials at the door or boom gate, the admin simply connects the ACR-CID12 to a PC, opens the configuration software, and taps a UHF tag near the device to instantly capture its code. That code can then be linked to a resident, staff member or licence plate in the Akuvox SmartPlus cloud platform or local intercom system, streamlining bulk credential enrolment for apartment buildings, gated communities and commercial car parks.

What's in the Box

• Akuvox ACR-CID12 USB desktop UHF card reader/writer
• USB cable
• Quick installation guide

Frequently Asked Questions

Does the ACR-CID12 need its own power supply?
No. It draws power directly from the USB port on the connected computer, so it works with a standard 5VDC USB connection.

Can it be used with any UHF card or tag?
It supports cards and tags compliant with EPCglobal UHF Class 1 Gen 2 and ISO 18000-6C standards, which covers the majority of UHF vehicle tags and access cards used with Akuvox systems.

How does the ACR-CID12 work with the ACR-CRP12?
The ACR-CID12 is used at the admin PC to capture and issue card codes, while the ACR-CRP12 is installed as the long-range reader at the gate or door; both devices must use matching Wiegand output settings for correct system operation.

Additional Resources

• Technical guide
