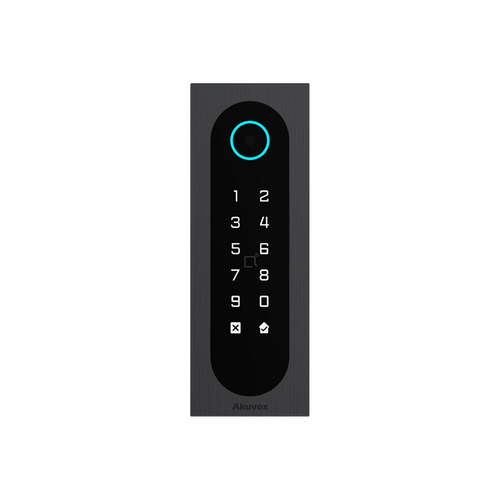

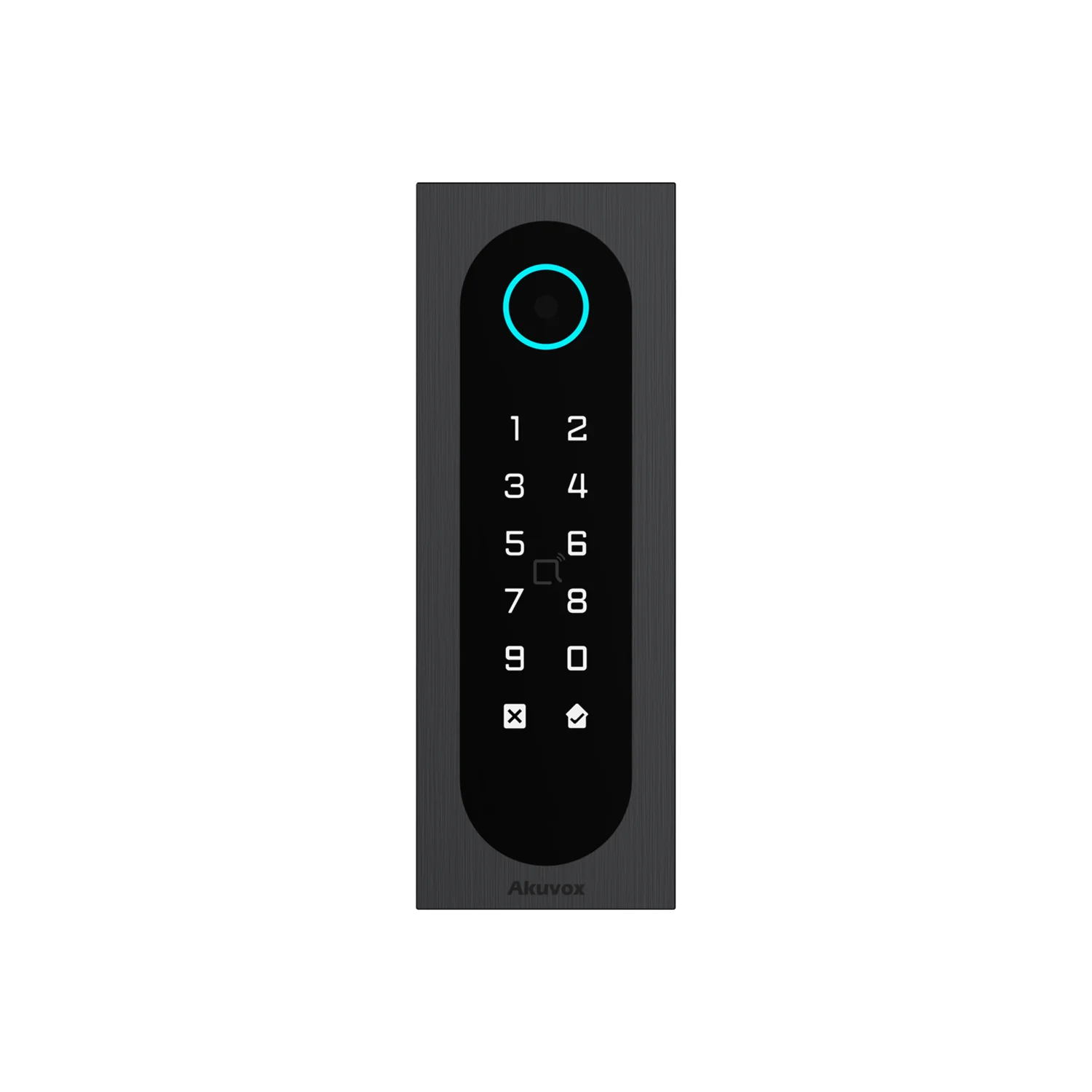

Akuvox A08S Slim IP Access Control Terminal with Keypad & Card Reader

Akuvox A08S Slim IP Access Control Terminal

The Akuvox A08S is a compact, all-in-one door controller and card reader designed to simplify access management for modern buildings. Housed in a slimline aluminium alloy frame with toughened glass, this IP65 and IK09 rated terminal is built to withstand outdoor exposure and physical tampering while offering a wide range of credential options for staff, residents, and visitors. Powered over Ethernet or via 12V DC, the A08S is well suited to condominiums, offices, gated communities, and industrial sites that need a robust yet space-saving access point.

Key Features

• Multiple credential types: unlock via PIN keypad, 125kHz and 13.56MHz RFID cards, NFC, QR code scanning, or Bluetooth 5.0 wave-to-unlock from a smartphone.
• Rugged, weatherproof build: aluminium alloy housing with toughened glass, rated IP65 for water/dust resistance and IK09 for vandal resistance.
• Flexible power options: supports Power over Ethernet or a 12V DC connector where PoE is unavailable.
• High-capacity storage: holds up to 20,000 user credentials and logs up to 100,000 access events for auditing.

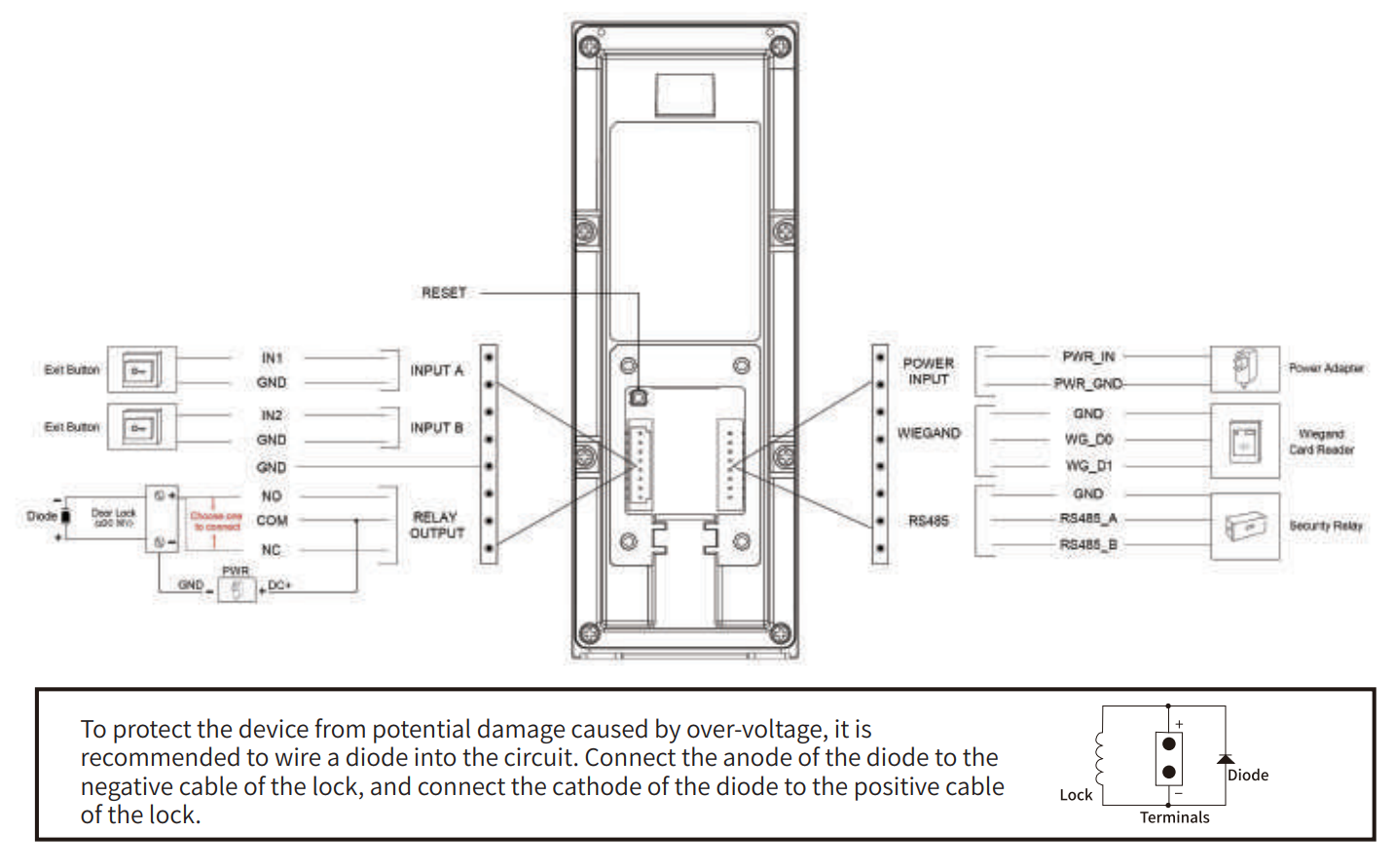

• Versatile wiring: includes 1 x Wiegand output, 1 x RS485 port, input ports, and an output relay for direct door/lock control, with support for both Wiegand and OSDP protocols.
• Flexible installation: can be flush-mounted or surface/wall-mounted to suit different door and wall configurations.
• Centralised management: compatible with Akuvox Cloud, SDMC, and ACMS platforms for remote configuration, scheduling, and firmware updates.
• Access scheduling and reporting: supports access levels, time schedules, shift/attendance tracking, and exportable access logs.

Reliable Access Control for Busy Entrances

The A08S is ideal for building managers who need a single device to both authenticate users and drive the door lock, rather than running separate readers and controllers. Its slim profile suits narrow door frames, gatehouses, and lift lobbies, while the combination of card, mobile, PIN, and QR credentials makes it easy to manage a mix of employees, residents, couriers, and visitors without issuing physical cards to everyone. The built-in relay and Wiegand/RS485 connectivity mean it can integrate with existing electric locks, third-party controllers, or expand into larger Akuvox access ecosystems.

What's in the Box

• Akuvox A08S access control terminal
• Mounting bracket and screws
• Wiring terminal connectors
• Quick installation guide

Frequently Asked Questions

Can the A08S be powered without a PoE switch?
Yes, it can run on standard PoE or via a 12V DC power connection if PoE is not available on site.

Does the A08S work outdoors?
Yes, its IP65 and IK09 ratings make it suitable for exposed outdoor entrances and vandal-prone locations.

What credential types does it support?
It accepts PIN codes, 125kHz and 13.56MHz RFID cards, NFC, QR codes, and Bluetooth-based mobile unlock.

Product Images & Diagrams
