LTS Platinum LTB781 Aluminum Pendant Mount for CMIP78xx Panoramic Cameras

LTS Platinum LTB781 Pendant Mount for CMIP78xx Series Panoramic Cameras

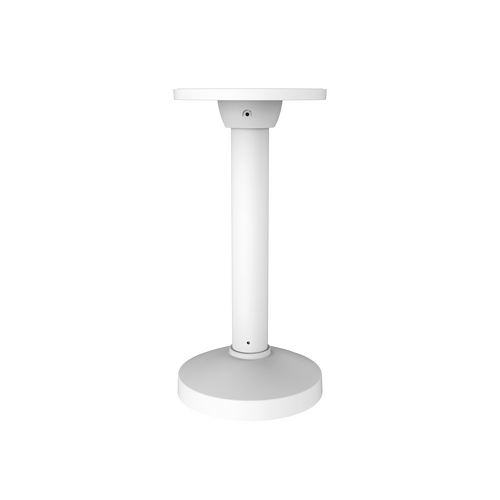

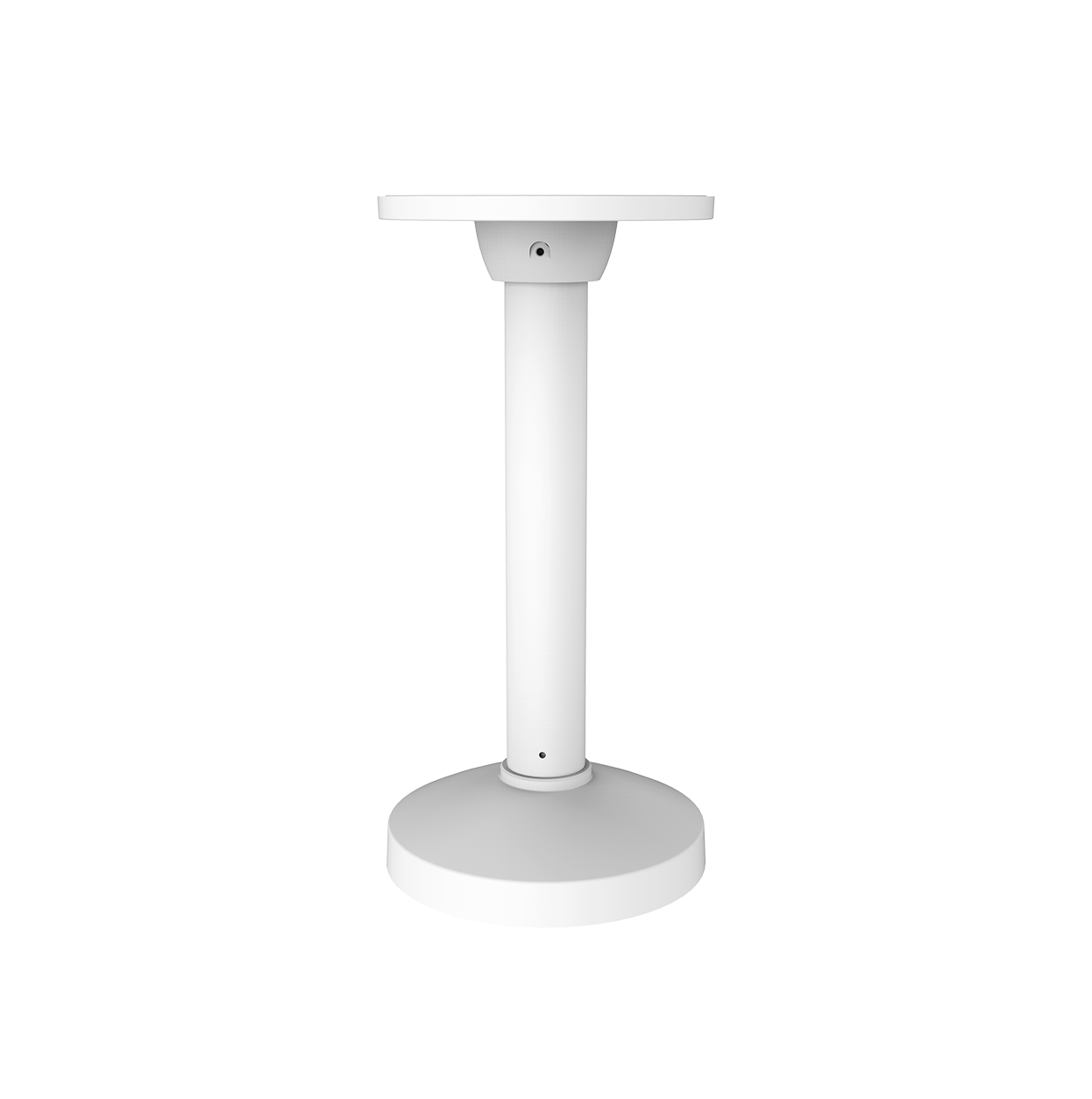

The LTS Platinum LTB781 is a purpose-built pendant (drop) mount designed to extend and support LTS's 8MP panoramic fixed turret cameras, including the CMIP78xx range and the CMIP3C8PW-SDL. Machined from lightweight yet rugged aluminium alloy, this bracket lets installers hang a panoramic camera below a ceiling, eave, or gantry so its dual-sensor lenses have a clear, unobstructed 180° field of view. It is the recommended accessory when a flush ceiling or wall mount cannot deliver the ideal camera height or angle for wide-area coverage.

Key Features

• Purpose-matched fit: Engineered specifically for the CMIP78xx family of panoramic turret cameras, including the CMIP3C8PW-SDL.
• Aluminium alloy construction: Corrosion-resistant and lightweight, suitable for long-term outdoor or indoor use.
• Extended drop length: Approximately 565 mm long with a 155 mm diameter collar, giving installers extra clearance to position the camera away from ceilings, awnings, or soffits.
• Low overall weight: At roughly 650 g, it adds minimal load to the mounting surface while still providing a stable platform.
• Unobstructed panoramic coverage: The pendant drop keeps structural elements out of the camera's dual-lens sightline for true 180° imaging.
• Simple installation: Designed to pair with compatible LTS junction boxes and wall/ceiling plates for a clean cable routing setup.
• Durable finish: Weather-resistant coating suited to exterior installations such as building perimeters and car parks.
• Part of the LTS Platinum accessory ecosystem: Matches the LTS Platinum camera lines for a consistent, professional installation aesthetic.

Ideal Applications

The LTB781 is best suited to commercial and industrial sites using LTS Platinum panoramic turret cameras where a standard wall or ceiling mount limits the camera's field of view. Typical use cases include warehouse loading docks, retail forecourts, school corridors, and carparks where a panoramic camera needs to be dropped below beams, awnings, or high ceilings to capture a full, unobstructed 180° scene. It is also a practical solution for retrofitting panoramic cameras onto structures that were not originally designed for wide-angle camera placement.

What's in the Box

• 1 x LTB781 aluminium pendant mount bracket
• Mounting screws and fixing hardware
• Installation instructions

Frequently Asked Questions

Which cameras is the LTB781 compatible with?
It is designed for LTS's CMIP78xx series panoramic fixed turret cameras, including the CMIP3C8PW-SDL model.

Can the LTB781 be used outdoors?
Yes, its aluminium alloy construction is suited to both indoor and outdoor installation environments.

Do I need a separate junction box with this mount?
Most installations pair the LTB781 with a compatible LTS junction box or wall plate to route and protect cabling; check your specific camera's accessory list for the recommended combination.
