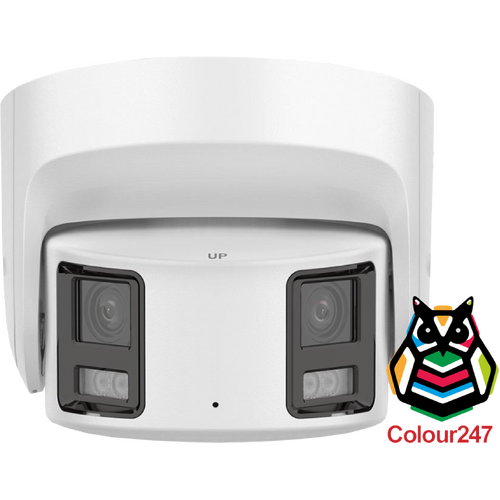

LTS Platinum 8MP Panoramic 24/7 Colour Turret IP Camera (2x 4mm)

LTS Platinum 8MP IP Panorama-247 Turret Camera (2x 4.0mm) - CMIP3C8PW-SDL

The LTS Platinum CMIP3C8PW-SDL is a dual-sensor 8MP panoramic turret camera built to eliminate blind spots across wide outdoor and indoor areas. Two 4MP imagers with 4.0mm fixed lenses are stitched into a single seamless 180° horizontal view, giving installers one clean image instead of two separate camera feeds to manage. Paired with true 24/7 full-colour imaging, onboard AI analytics and an active deterrence system, this turret is designed for sites that need broad coverage, strong low-light performance and a visible first line of defence against intruders.

Key Features

• Dual 4MP Panoramic Sensors: Combine into an 8MP, 5120x1440 image at up to 15fps for a continuous 180° (±10°) horizontal field of view.
• Colour247 Technology: Maintains full-colour video around the clock using an F1.0 aperture and built-in white LED illumination rated to roughly 40m.
• Active Guard Deterrence: Triggers a bright strobe light and audible alarm to warn off intruders the moment suspicious activity is detected.
• AI Human & Vehicle Detection: Onboard deep-learning analytics classify people and vehicles to cut down on false motion alerts.
• 130dB True WDR, BLC & 3D DNR: Balances harsh backlight and reduces image noise for cleaner footage in mixed lighting.
• H.265/H.265+ Compression: Efficient encoding (Profile S/G/T) that keeps storage and bandwidth requirements manageable for continuous 24/7 recording.
• Flexible Power Options: Runs on 12V DC (790mA) or 802.3af PoE (10.5W), simplifying installation across different site setups.
• Weatherproof IP67 Housing: Rated for reliable outdoor use in rain, dust and harsh weather.
• On-Camera Storage: Supports up to a 256GB microSD card for local edge recording alongside NVR storage.

Ideal Applications

Because it captures a full 180° scene in a single frame, this turret is well suited to wide, linear areas such as car parks, loading docks, warehouse aisles, building perimeters, retail frontages and long corridors where a standard fixed-lens camera would need two units to achieve the same coverage. The combination of AI-based human and vehicle detection with the active strobe and audio alarm makes it a strong choice for sites that want automated, on-the-spot deterrence rather than relying solely on after-the-fact footage review.

What's in the Box

• CMIP3C8PW-SDL Panoramic Turret Camera
• Mounting template and screw kit
• Weatherproof cable gland/connector
• Quick installation guide

Frequently Asked Questions

Does this camera provide colour video at night?
Yes. Its Colour247 design uses an F1.0 lens and integrated white LEDs to keep images in full colour even in low light, rather than switching to black-and-white infrared mode.

Can it be powered without running a separate power cable?
Yes, it supports standard 802.3af PoE in addition to 12V DC, so a single Ethernet cable can supply both power and data.

Is this camera compatible with all LTS NVRs?
It works with most LTS Platinum NVRs, but note that this model is known not to display correctly on the live view of the LTN07128-R16 128-channel NVR; please confirm compatibility with your recorder model before installation.
