LTS Platinum CMIP3263NW-SZ 6MP IP Turret Camera with Motorized 2.8-12mm Lens

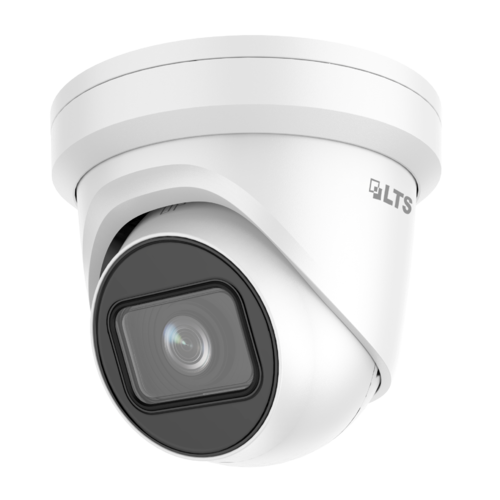

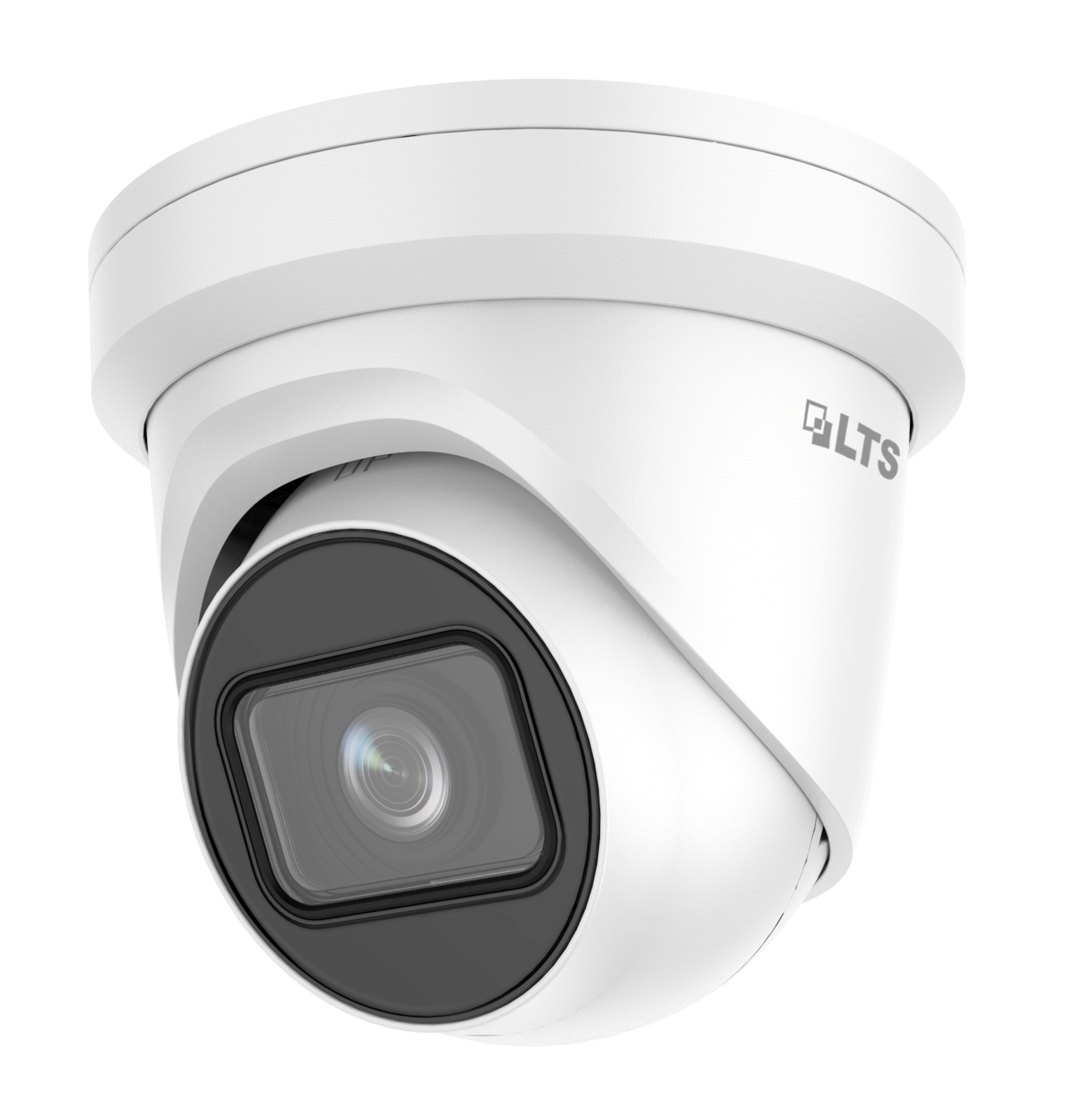

LTS Platinum CMIP3263NW-SZ 6MP IP Turret Camera

The CMIP3263NW-SZ is a 6-megapixel IP turret camera from the LTS Platinum series, built for installers who need flexible field-of-view adjustment without climbing a ladder to swap lenses. Its motorized 2.8-12mm varifocal lens allows remote zoom and focus tuning directly from the NVR or client software, making it a strong fit for retail, warehouse, small office, and residential perimeter installations where coverage requirements can change over time. Backed by a vandal-resistant IK10 rating and an IP67 weatherproof housing, this turret is engineered to hold up against the elements as well as physical tampering, whether mounted under an eave or on an exposed exterior wall.

Key Features

• 6MP high-resolution sensor capturing detailed 3072 x 2048 imagery at up to 20fps for clear identification of faces, plates, and activity.
• Motorized 2.8-12mm varifocal lens with remote zoom and focus, giving a field of view that ranges from wide-angle overview to tighter, more detailed shots.
• Matrix IR illumination rated to roughly 30m (98ft), supporting usable night-time footage even in near-total darkness.
• 120dB true WDR along with BLC, 3D DNR, ROI, and HLC processing to balance tricky lighting scenes such as doorways facing direct sun.
• H.265/H.265+ compression (with H.264/H.264+ fallback) to keep storage and bandwidth requirements manageable across multi-camera systems.
• IP67 and IK10 rated housing for reliable outdoor use and resistance to impact or attempted vandalism.
• Built-in micro SD slot supporting up to 128GB of local edge storage for redundancy alongside NVR recording.
• Two-way audio support via audio input/output for basic on-site communication or evidence capture.
• Standard PoE (802.3af) power option alongside 12V DC, simplifying cabling for new or retrofit installs.

Where It Fits

This turret camera suits small-to-mid sized commercial and residential deployments where a single camera needs to cover more than one purpose, such as a shop entrance that also needs a close-up view of a till or door. Because the lens is motorized rather than fixed or manually adjusted, technicians can fine-tune the field of view remotely after mounting, reducing return site visits. It pairs naturally with other LTS Platinum series turrets, domes, and NVRs for a consistent look and unified H.265 recording setup across a property.

What's in the Box

• CMIP3263NW-SZ IP turret camera
• Mounting bracket and screws
• Waterproof cable gland/connector
• Quick installation guide

Frequently Asked Questions

Does this camera require a separate PoE injector?
No, as long as your NVR or network switch provides 802.3af PoE, a single Ethernet cable will power and connect the camera. A 12V DC power supply can be used as an alternative.

Can the zoom be adjusted after installation?
Yes, the 2.8-12mm lens is motorized, so zoom and focus can be adjusted remotely through the connected NVR or LTS client software without physically touching the camera.

Is this camera suitable for outdoor use?
Yes, the IP67-rated housing and IK10 impact resistance make it suitable for exposed outdoor mounting locations, including eaves, walls, and covered entryways.
