LTS Platinum 6MP AI IP Turret Camera with 2.8-12mm Motorized Lens

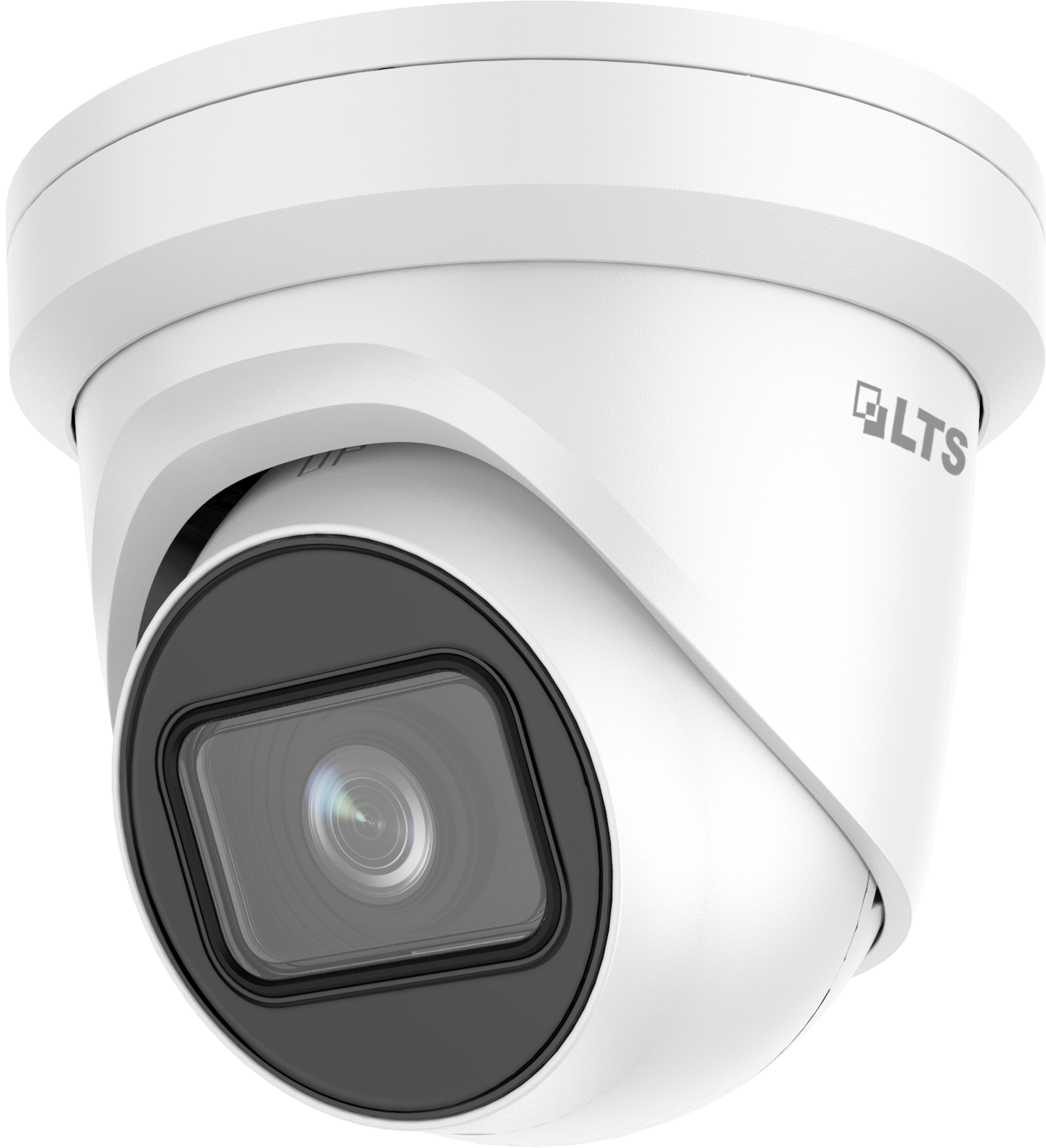

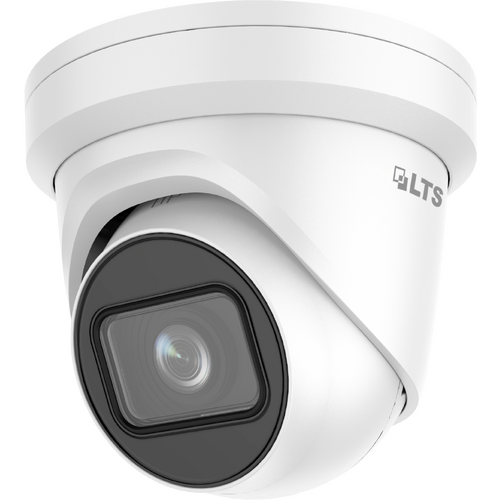

LTS Platinum CMIP3263W-SDZ 6MP IP Turret Camera

The LTS Platinum CMIP3263W-SDZ is a 6-megapixel IP turret camera built for installers who need sharp detail, flexible framing, and smart analytics in one weatherproof housing. Its motorized 2.8-12mm varifocal lens lets technicians zoom and focus remotely from the NVR or client software, removing the guesswork of manual lens adjustment during installation. Paired with deep-learning based human and vehicle classification, 120dB true WDR, and Matrix IR illumination, this turret camera is designed to deliver reliable, low-false-alarm coverage for entrances, car parks, loading docks, and perimeter lines in both commercial and residential environments.

Key Features

• 6MP high-resolution imaging at up to 3200x1800 resolution and 20fps for crisp, detailed footage.
• Motorized 2.8-12mm varifocal lens for remote zoom and focus adjustment, ideal for wide coverage or close-up identification.
• AI-powered video analytics that classifies human and vehicle targets to reduce nuisance alerts from wildlife, weather, or shadows.
• 120dB True WDR, BLC, and 3D DNR for balanced exposure in harsh backlighting and reduced noise in low light.
• Matrix IR LED night vision with an effective range of up to 40m (approx. 131ft) at 850nm for clear monochrome imaging after dark.
• H.265/H.265+ compression to cut bandwidth and storage requirements without compromising image quality.
• IP67 weatherproof and IK10 vandal-resistant housing, suitable for tough outdoor installations.
• Flexible power options via 12V DC or 802.3af PoE, plus onboard audio input/output and microSD storage up to 256GB.

Where This Camera Fits Best

The CMIP3263W-SDZ suits property managers, retailers, and integrators who need a single turret camera capable of covering both wide entry points and specific zones requiring finer detail, such as gates, driveways, and storefront perimeters. Its motorized lens and AI-based detection reduce the need for a technician to return on-site for lens tweaks, while the rugged IP67/IK10 rating keeps it operating through rain, dust, and attempted tampering. It integrates naturally into LTS Platinum series NVR systems for centralized recording and smart search by object type.

What's in the Box

• LTS Platinum CMIP3263W-SDZ turret camera
• Mounting hardware and screws
• Waterproof cable gland/connector kit
• Quick installation guide

Frequently Asked Questions

Does this camera need a separate NVR to record?
Yes, the CMIP3263W-SDZ is an IP camera that streams footage to a compatible NVR or VMS for recording, though it also supports local microSD storage for edge backup.

Can the lens be adjusted after installation?
Yes, the 2.8-12mm lens is motorized, so zoom and focus can be adjusted remotely without physically handling the camera.

Is this camera suitable for outdoor use?
Yes, it carries an IP67 weatherproof rating and IK10 vandal resistance, making it suitable for exposed outdoor mounting positions.
