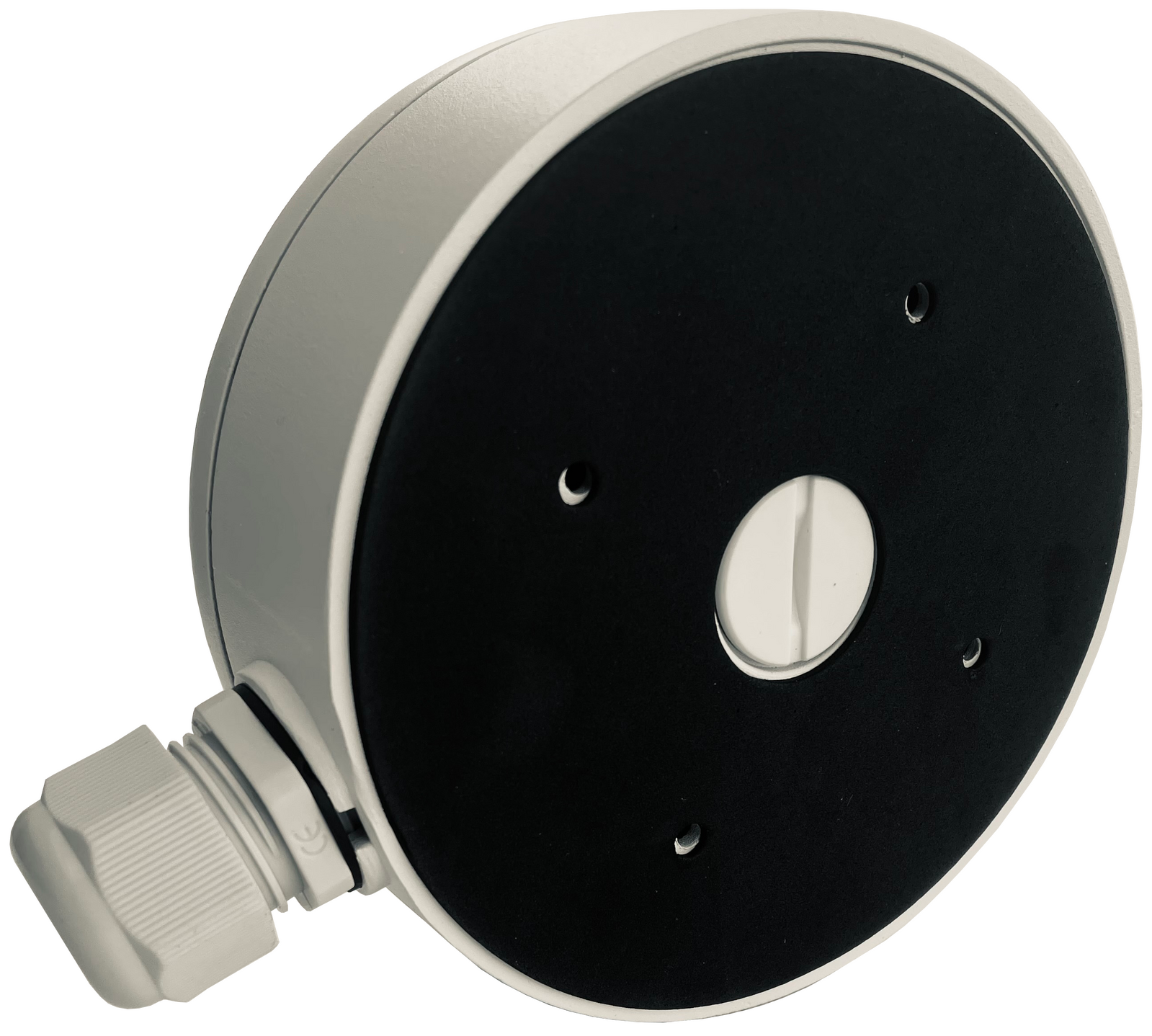

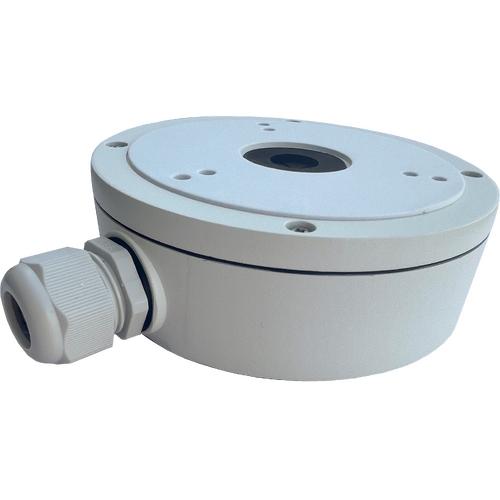

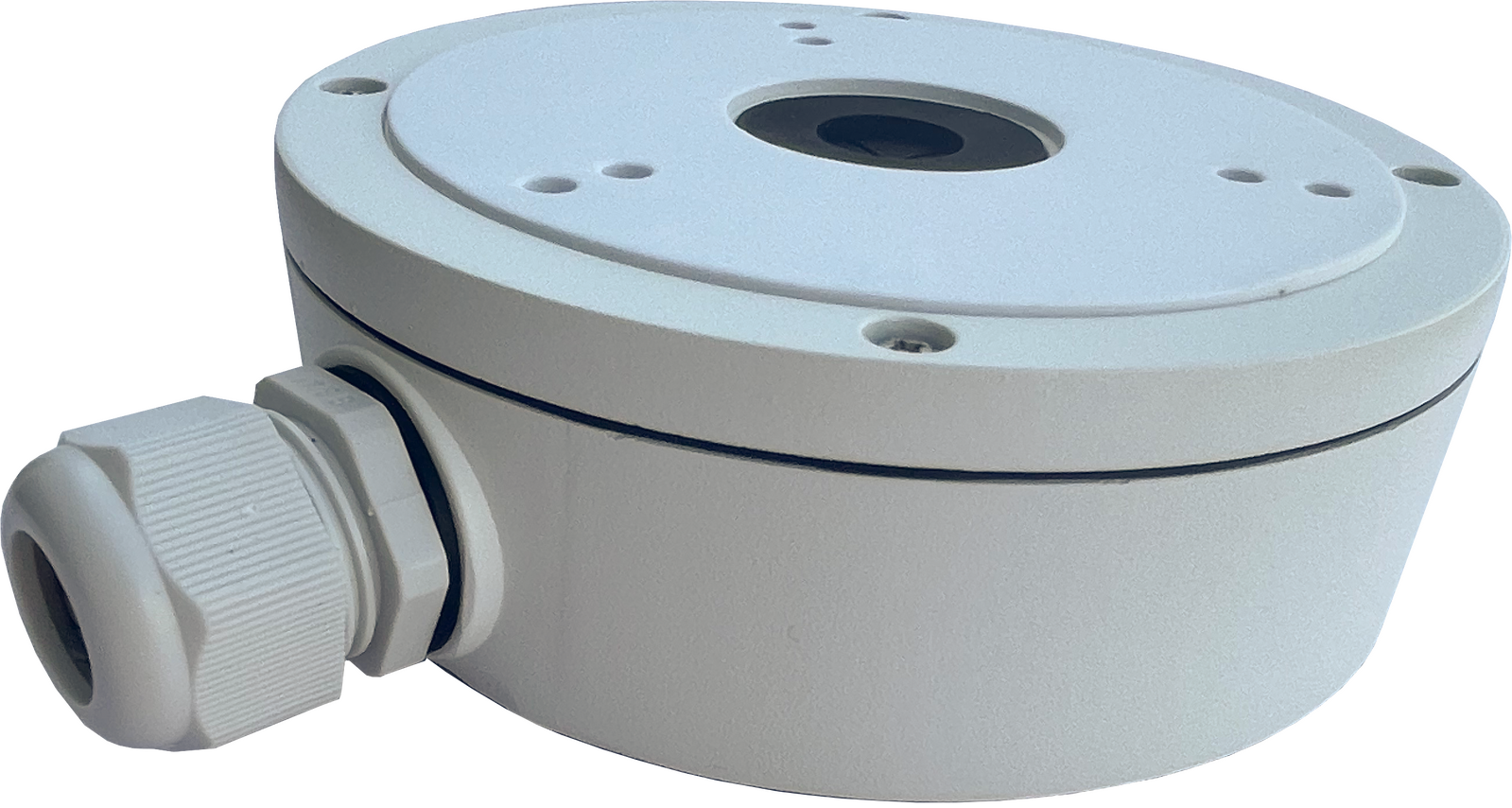

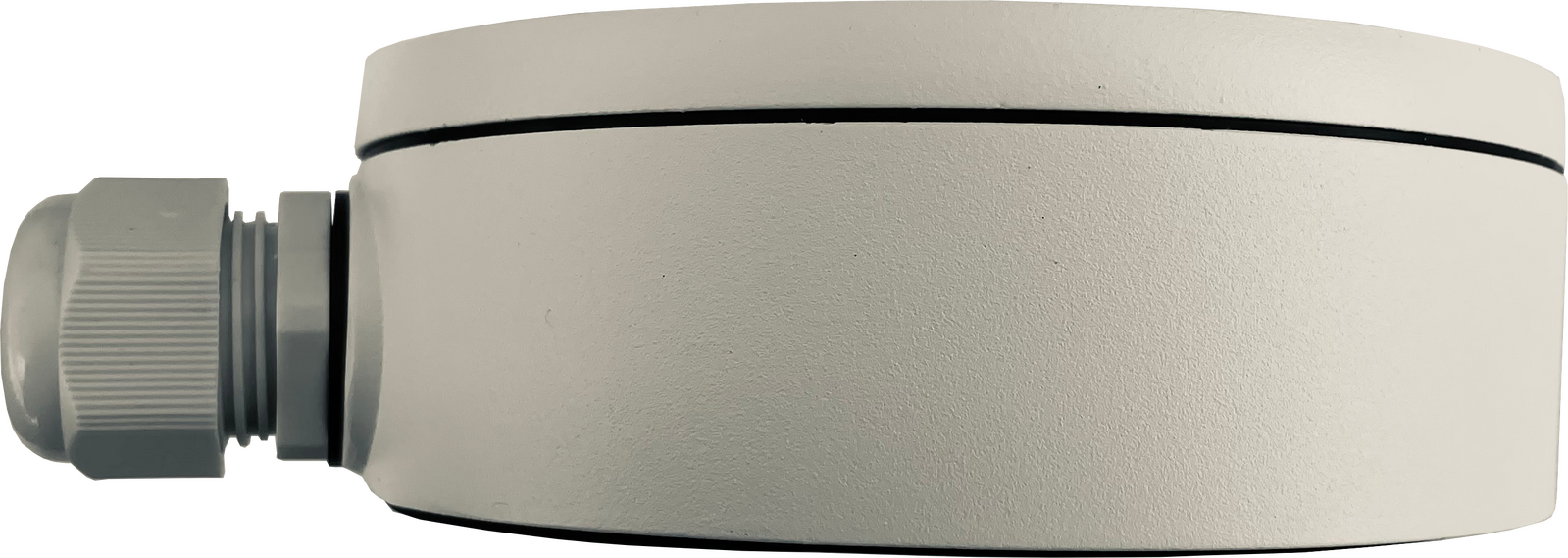

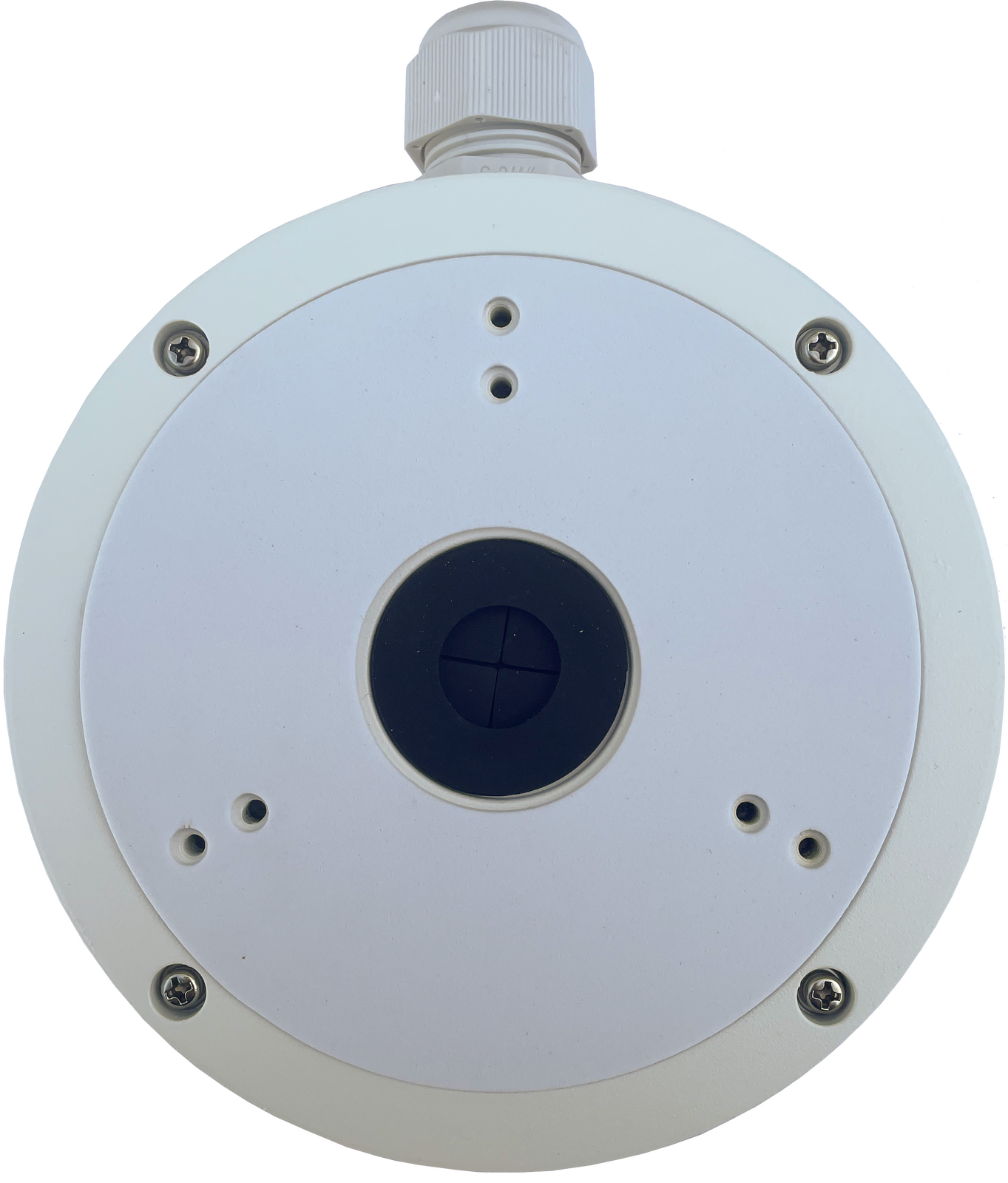

LTS LTB307 Aluminium Camera Base Extender with Conduit Entry

LTS LTB307 Aluminium Camera Base Extender (Cable Management)

The LTS LTB307 is a durable aluminium alloy base extender designed to simplify cable routing and conduit entry for compatible LTS dome cameras. Sitting between the camera base and the mounting surface, this extender creates a clean, concealed pathway for cabling while adding a small amount of standoff height, making it ideal for surface conduit installs, uneven mounting surfaces, or situations where existing cabling needs to be tidied away from view.

Key Features

• Solid aluminium alloy construction for long-term outdoor and indoor durability
• Built-in conduit entry point for clean, professional cable management
• Compact low-profile design with an approximate diameter of 160mm and height of 55mm
• Lightweight yet sturdy, adding minimal bulk to the finished camera installation
• Wide model compatibility across multiple LTS IP and TVI dome camera series
• Simple retrofit installation using the camera's existing mounting pattern
• Weather-resistant finish suited to external wall or ceiling mounts
• Part of the LTS Platinum bracket range, matched to LTS camera housings for a consistent look

Compatible Camera Series

The LTB307 base extender is designed to suit LTS IP dome cameras in the CMIP 10, CMIP 30, CMIP 32 and CMIP 33 series, as well as LTS TVI dome cameras in the CMHT 17, CMHT 18 and CMHT 19 series. It is commonly installed by security integrators who need to route cable through conduit behind the camera rather than running cable externally, giving a tidier finish on brick, plaster or metal mounting surfaces in both residential and commercial CCTV installations.

What's in the Box

• 1 x LTB307 aluminium base extender
• Mounting screws and fixings
• Installation instructions

Frequently Asked Questions

Does the LTB307 fit all LTS dome cameras?
It is designed for specific LTS IP (CMIP 10/30/32/33 series) and TVI (CMHT 17/18/19 series) dome cameras, so it's best to confirm your exact camera model against the LTS bracket compatibility chart before ordering.

What is the LTB307 used for?
It acts as a base extender and cable management accessory, giving installers a dedicated conduit entry point so cabling can be routed cleanly behind the camera rather than left exposed.

What material is the LTB307 made from?
It is constructed from aluminium alloy, offering good durability for both indoor and outdoor camera installations.
