LTS LTB371 Pendant Drop Mount Bracket for Dome Cameras

LTS LTB371 Pendant Drop Mount Bracket

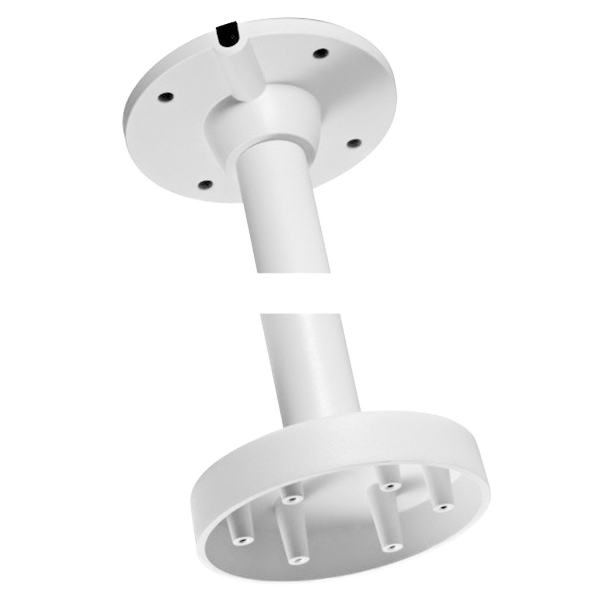

The LTS LTB371 is a purpose-built pendant drop mount bracket designed to suspend compatible LTS dome-style cameras from a ceiling rather than surface-mounting them flush. Constructed from durable aluminium alloy and finished in white to blend with most ceiling surfaces, this bracket extends the camera downward on a two-section pole assembly, making it ideal for high-ceiling installations in warehouses, retail stores, lobbies, car parks and other commercial spaces where a standard flush ceiling mount would place the camera too far from its intended field of view.

Key Features

• Aluminium alloy construction for long-term corrosion resistance and structural strength
• Two-piece pendant pole design (approximately 230mm per section) allowing an extended, adjustable drop length
• White finish suited to typical commercial and retail ceiling colour schemes
• Purpose-matched to specific LTS HDTVI and IP dome camera series for a secure, tool-friendly fit
• Compatible with select LTS Platinum HDTVI dome cameras, including CMHT2722, CMHT2722-28, CMHT2722W, CMHT2732, CMHT2732-28, CMHT1623W and CMHT1823xx series
• Compatible with select LTS Platinum IP dome cameras, including CMIP3012xx, CMIP3022xx, CMIP3032xx, CMIP3042xx, CMIP1112xx, CMIP1122xx, CMIP1132xx and CMIP1142xx series
• Straightforward ceiling fixing points for faster on-site installation
• Part of the wider LTS camera bracket range, allowing consistent mounting hardware across a mixed camera fleet

Typical Use Cases

The LTB371 pendant mount suits installers and end users who need to drop a dome camera down from a high or recessed ceiling to achieve the correct mounting height and unobstructed sightline. It is commonly specified for warehouses, showrooms, supermarkets, transport hubs and open-plan offices where cameras must clear ductwork, shelving or false ceilings while still delivering a clean, professional appearance.

What's in the Box

• LTB371 pendant mount bracket assembly (aluminium alloy, two-section pole)
• Mounting hardware/fixing screws
• Installation guide

Frequently Asked Questions

Is the LTB371 compatible with any LTS dome camera?
No. It is engineered for specific LTS HDTVI and IP dome camera series, so it's important to confirm your exact camera model against the compatibility list before ordering.

Can the drop length be shortened or extended?
The bracket is supplied as a two-section pole, and matching extension poles are available separately from the LTS bracket range for installations requiring additional drop height.

What colour does the LTB371 come in?
It is finished in white to match the majority of LTS dome cameras and typical commercial ceiling tiles.

Additional Resources

• LTS Camera Brackets Summary Chart
