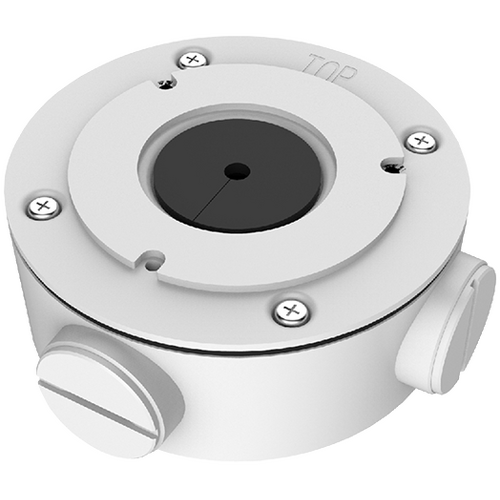

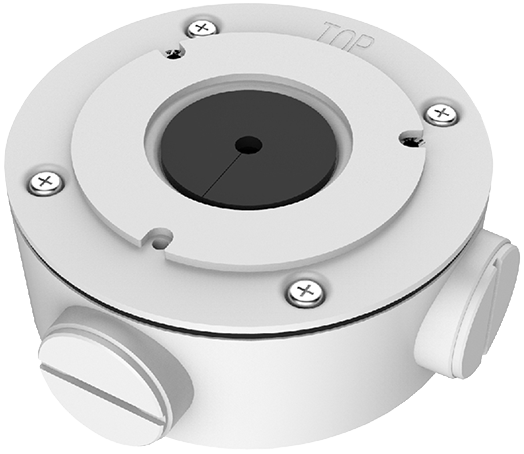

LTS Platinum LTB801 Aluminium Junction Box Base Extender for IP/TVI Bullet Cameras

LTS Platinum LTB801 Aluminium Junction Box Base Extender

The LTS Platinum LTB801 is a purpose-built base extender and junction box designed to simplify cable management and mounting for compatible LTS bullet-style security cameras. Constructed from durable aluminium alloy, it creates a clean, weatherproof entry point for conduit and cabling behind the camera base, protecting connections from moisture, dust, and tampering while giving installers a professional, finished look on any wall or ceiling surface.

Key Features

• Aluminium alloy construction with a protective surface finish for long-term corrosion resistance
• Integrated conduit entry point for concealed, weatherproof cable routing
• Compact base profile measuring approximately 88.5mm in diameter by 43mm in height
• Lightweight design at roughly 251g, adding minimal load to the camera mounting point
• Purpose-matched fit for select LTS Platinum IP bullet cameras and compatible HD-TVI bullet camera models
• Weatherproof housing suited to both indoor and outdoor installation environments
• Simple screw-mount installation onto walls, eaves, or ceilings using standard fixings
• Vandal-conscious design that helps shield exposed cabling from accidental damage or interference

Typical Applications

The LTB801 is ideal for installers and integrators deploying LTS Platinum bullet cameras across retail stores, warehouses, offices, and residential perimeters where cabling must be run through a wall or conduit rather than left exposed. By extending the camera base and housing the cable termination, it allows for tidy surface-mount installations on brick, render, or metal cladding without the need for recessed back boxes, making it a practical accessory for both new installs and camera upgrades.

What's in the Box

• 1 x LTB801 aluminium junction box base extender
• Mounting screws and fixings
• Quick installation guide

Frequently Asked Questions

Which cameras is the LTB801 compatible with?
It is designed to fit select LTS Platinum bullet-style IP and HD-TVI camera housings that use a matching base mount diameter; always confirm compatibility against the LTS camera bracket compatibility chart before ordering.

Is the LTB801 suitable for outdoor use?
Yes, its aluminium construction and sealed conduit entry make it suitable for both indoor and outdoor mounting locations.

Does the LTB801 include the camera itself?
No, this is a mounting accessory only; the camera and any additional cabling are sold separately.

Additional Resources

• LTS Camera Brackets Summary Chart
