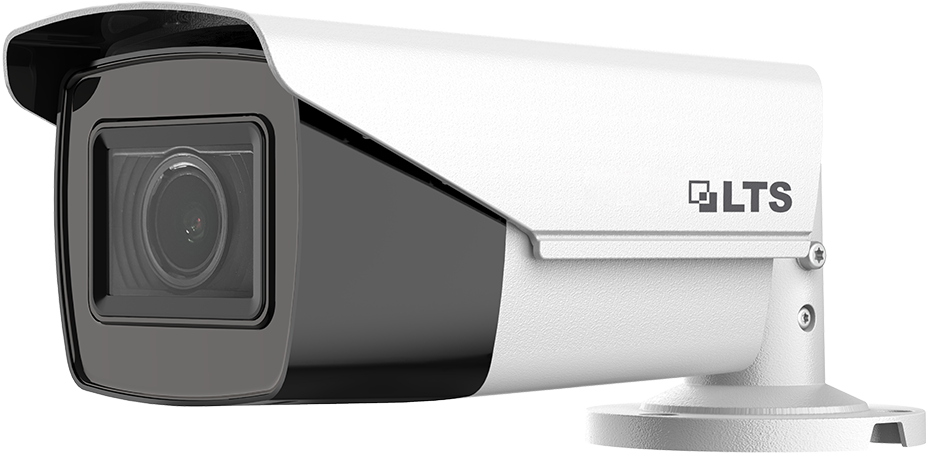

LTS Platinum 5MP HD-TVI Motorized Varifocal Bullet Camera (2.7-13.5mm)

LTS Platinum 5MP HD-TVI Motorized Varifocal Bullet Camera

The LTS Platinum CMHR9653D-ZFN is a 5-megapixel HD-TVI bullet camera built for installers who need flexible framing without climbing a ladder to adjust the lens. Its 2.7~13.5mm motorised varifocal lens lets you zoom and focus remotely via the coaxial control menu, making it ideal for entrances, car parks, loading docks and perimeter fence lines where the exact field of view needs fine-tuning after mounting. Backed by a rugged IP67-rated aluminium bullet housing, this camera is designed to handle constant outdoor exposure across Australian conditions.

Key Features

• 5MP resolution (2560 x 1944) for sharp, detailed footage suitable for identifying faces and number plates
• Motorised 2.7~13.5mm lens with remote zoom/focus adjustment, covering roughly 95.7° down to 29.1° horizontal field of view
• Quad video output - switchable between TVI, AHD, CVI and CVBS signals from one port, matching almost any existing DVR
• Ultra-low light rating of 0.01 Lux at F1.2 with AGC enabled for usable colour images in dim conditions
• Matrix IR array delivering up to 40m (131ft) of night-time illumination at 850nm
• DWDR, BLC and 2D DNR processing to balance harsh backlighting and reduce grain/noise in low-light scenes
• IP67 weatherproof rating for reliable outdoor performance in rain, dust and temperature swings
• On-screen menu configurable via UTC (up-the-coax) control or directly through a compatible Platinum DVR
• Flexible 12VDC or 24VAC power input (approx. 742mA / 8.9W draw)

Typical Applications

This camera suits mid-to-long range coverage where a fixed lens won't cut it - think retail car parks, warehouse yards, school perimeters and commercial entry points. Because the zoom and focus are motorised and adjustable from the DVR menu, technicians can fine-tune the shot after final mounting, saving time on tricky installs like eaves, poles or high walls where physical access is limited.

What's in the Box

• CMHR9653D-ZFN 5MP HD-TVI motorised bullet camera
• Mounting bracket and screws
• Waterproof cable gland / junction connections
• Quick installation guide

Frequently Asked Questions

Is this camera compatible with my existing DVR?
Yes - it outputs TVI, AHD, CVI or CVBS from the same coaxial connection, so it will work with most analog and HD-analog DVRs already in the field, including LTS Platinum recorders.

Can I adjust the zoom without opening the camera?
Yes, the lens is motorised and can be zoomed and focused remotely through the UTC menu on a compatible DVR, so no physical adjustment at the camera is required.

What night vision range should I expect?
The built-in matrix IR LEDs are rated to illuminate scenes up to approximately 40 metres in fully dark conditions.
