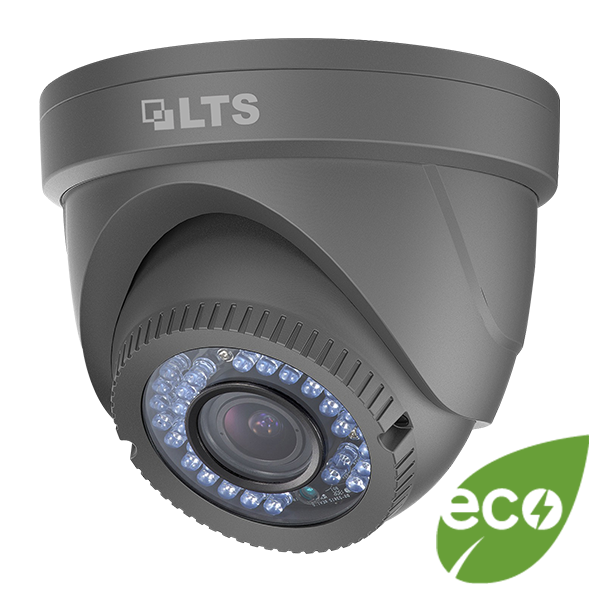

LTS Platinum 2.1MP HD-TVI Turret Camera (2.8-12mm Varifocal) - Black

LTS Platinum CMHT1823B 2.1MP HD-TVI Varifocal Turret Camera - Black

The LTS Platinum CMHT1823B is an eco-efficient 2.1MP HD-TVI turret camera built for reliable day-and-night surveillance across homes, retail stores and commercial sites. Featuring a manually adjustable 2.8-12mm varifocal lens, this compact black turret lets installers fine-tune the field of view on site, making it a versatile choice for entries, car parks, warehouses and perimeter coverage. Paired with a compatible Platinum HD-TVI DVR, it delivers crisp Full HD 1080p footage over standard coaxial cable, simplifying upgrades to existing analog systems.

Key Features

• 2.1MP Full HD Resolution: Captures detailed 1920x1080 video at up to 30fps for clear identification of people and vehicles.
• 2.8-12mm Varifocal Lens: Manually adjustable zoom and focus allow the field of view to be tailored to each installation without swapping cameras.
• 42 IR LEDs for Night Vision: Illuminates scenes up to 131ft (40m) in complete darkness for continuous 24/7 monitoring.
• Smart IR & True Day/Night: Automatically balances infrared output to prevent overexposure on nearby objects while preserving detail at range.
• Eco Energy-Efficient Design: Engineered for lower power draw, reducing running costs across multi-camera installations.
• IP66 Weatherproof Housing: Rated for dust and water resistance, suitable for exposed outdoor mounting as well as indoor use.
• UTC (Up-The-Coax) Control: Adjust the camera's on-screen display menu remotely through the coax cable when paired with a Platinum HD-TVI DVR, avoiding repeat trips to the camera.
• Wide Operating Temperature Range: Built to keep working in extreme heat and cold, supporting demanding Australian outdoor conditions.
• Simple DC 12V Power Input: Compatible with standard CCTV power supplies for straightforward installation.

Reliable Coverage for Homes and Businesses

The CMHT1823B's turret form factor and adjustable lens make it well suited to a wide range of scenarios, from monitoring a shopfront entrance to covering a warehouse loading dock or a residential driveway. Its HD-TVI signal travels reliably over long coax runs without the latency concerns of some IP systems, making it a practical option for retrofitting older analog camera systems with sharper, higher-resolution imaging. The strong night vision range and weatherproof housing mean it can be relied on for round-the-clock outdoor security even in low-light or harsh weather conditions.

What's in the Box

• CMHT1823B 2.1MP HD-TVI Turret Camera (Black)
• Mounting bracket and screws
• Waterproof cable connectors
• Screw template/installation guide

Frequently Asked Questions

Does this camera work with any DVR?
It is designed to work with HD-TVI recorders and will deliver its full 2.1MP resolution and UTC menu control when connected to a compatible Platinum HD-TVI DVR.

Can I adjust the zoom after installation?
Yes, the 2.8-12mm lens is manually varifocal, so installers can adjust the zoom and focus on site to suit the required coverage area.

Is this camera suitable for outdoor use?
Yes, it carries an IP66 weatherproof rating and an extended operating temperature range, making it appropriate for both indoor and outdoor installation.
