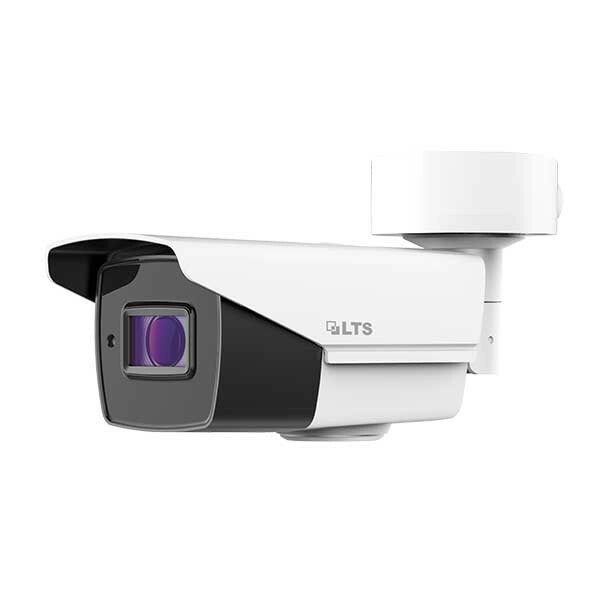

LTS Platinum CMHR9653DN-ZF 5MP Motorized Varifocal HD-TVI Bullet Camera

LTS Platinum CMHR9653DN-ZF 5MP Motorized Varifocal HD-TVI Bullet Camera

The LTS Platinum CMHR9653DN-ZF is a 5-megapixel outdoor bullet camera built for installers who need flexible field-of-view adjustment without leaving the DVR. Featuring a 2.7~13.5mm motorised varifocal lens, this camera lets you fine-tune zoom and focus remotely via the connected Platinum DVR or coax control, saving time on ladder work during setup. With multi-format HD analog output and rugged IP67 weatherproofing, it suits a wide range of retrofit and new-build CCTV projects across retail, warehouse, and residential perimeter applications.

Key Features

• 5MP High-Resolution Imaging: Captures detailed 2560x1944 footage at up to 20fps for clear identification of faces, plates, and activity.
• Motorised Varifocal Lens: 2.7~13.5mm remote zoom and focus lens covers a wide 95.7° to 29.1° field of view for versatile framing.
• Matrix IR Night Vision: Smart IR LEDs reach up to 40m (131ft), maintaining consistent exposure on both near and distant subjects.
• Ultra Low-Light Sensitivity: Rated at 0.01 lux (AGC on) at F1.2, delivering usable colour video in near-dark conditions.
• 4-in-1 Video Output: Switchable between TVI, AHD, CVI, and CVBS signals for compatibility with a broad range of existing analog DVR systems.
• Digital Wide Dynamic Range (DWDR): Balances high-contrast scenes such as doorways and driveways facing direct sunlight.
• Weatherproof IP67 Housing: Built to withstand rain, dust, and outdoor temperature swings for reliable long-term operation.
• Flexible Power Input: Runs on 12VDC or 24VAC, drawing approximately 742mA / 8.9W for straightforward installation.
• On-Screen Menu Control: Adjust camera settings directly through UTC or a compatible Platinum DVR without a separate joystick controller.

Ideal Applications

This bullet camera is well suited to businesses and homeowners upgrading or extending an existing HD-TVI/AHD/CVI analog CCTV system where a motorised zoom lens is needed to cover both wide entry points and narrower focal areas like gates, loading docks, or car parks. Its combination of long-range IR illumination and low-light performance makes it a practical choice for perimeter security that needs to perform around the clock.

What's in the Box

• 1 x CMHR9653DN-ZF Bullet Camera
• Mounting bracket and hardware
• Junction box
• Installation manual

Frequently Asked Questions

Is this camera compatible with an NVR?
No. This is an analog HD camera designed for coax-based DVR systems supporting TVI, AHD, CVI, or CVBS signals, not IP/PoE NVRs.

Can I adjust the zoom after installation?
Yes, the motorised lens allows remote zoom and focus adjustment via UTC control from a compatible Platinum DVR, avoiding manual lens handling on site.

What is the effective night vision range?
The built-in Matrix IR LEDs provide clear illumination up to approximately 40 metres in fully dark conditions.

Note: This SKU has been superseded by the LTS Platinum CMHR9653D-ZFN, which shares the same core 5MP motorised bullet camera specifications.
