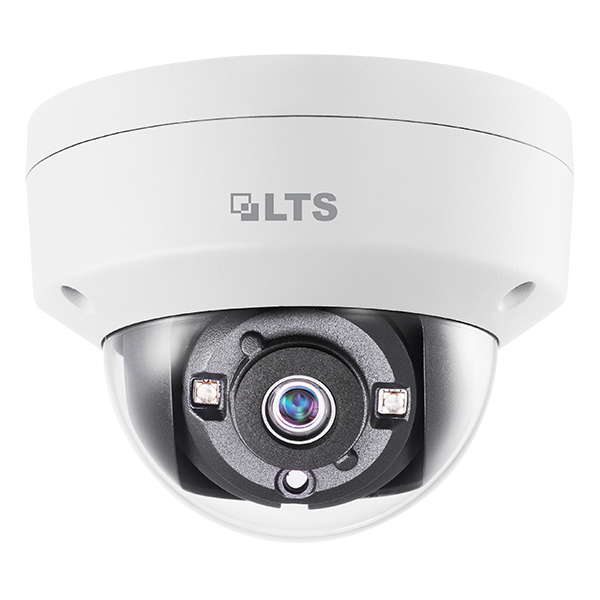

LTS Platinum 3MP HD-TVI Vandal Dome Camera 2.8mm Fixed Lens

LTS Platinum 3MP HD-TVI Vandal Dome Camera (2.8mm Fixed Lens) - CMHD73T2-28

The LTS Platinum CMHD73T2-28 is a 3MP HD-TVI vandal dome camera built for reliable, cost-effective analog-over-coax upgrades. Paired with a wide-angle 2.8mm fixed lens, it delivers crisp 1920x1536 imaging with strong low-light performance, making it a practical choice for retail entries, driveways, warehouses, and general perimeter coverage where a compact, tough dome is needed.

Key Features

• 3MP High Definition resolution at 1920x1536, captured on a 1/3" CMOS sensor for clear, detailed footage.
• 2.8mm fixed lens with an 84° field of view, ideal for wide-area coverage in entrances, corridors, and small yards.
• 2 Matrix IR 2.0 night vision illuminating up to 65ft (20m), with ICR day/night switching for accurate colour reproduction in daylight and clear monochrome imaging at night.
• IP66 weatherproof housing rated for reliable year-round outdoor installation in Australian conditions.
• IK10 vandal-resistant construction, built to withstand impact and tampering in exposed or high-traffic locations.
• OSD menu control via UTC technology, allowing camera settings to be adjusted directly from a compatible Platinum HD-TVI DVR without extra tools.
• Simple DC 12V power and low power draw (max 5W), keeping installation straightforward and cabling costs down.
• Smart functions including AGC, BLC, DNR, and mirror image support for cleaner footage in varied lighting.

Ideal Applications

This vandal dome suits small to mid-sized HD-TVI installations such as retail shopfronts, office entries, warehouses, car parks, and residential perimeters. Its durable dome housing and IP66/IK10 ratings make it well suited to ceiling or wall mounting in areas exposed to weather or physical interference, while the 2.8mm lens provides a wide view for monitoring doorways, aisles, and open outdoor areas.

What's in the Box

• 1 x CMHD73T2-28 HD-TVI Vandal Dome Camera
• Mounting screws and wall plate
• Quick installation guide

Frequently Asked Questions

Does this camera work with any DVR?
No. It must be used with an HD-TVI 3.0 compatible DVR, such as an LTS Platinum HD-TVI recorder, to enable full 3MP resolution and OSD menu control.

Is this camera suitable for outdoor use?
Yes, the IP66-rated housing and IK10 vandal-resistant shell make it suitable for exposed outdoor mounting locations.

What is the maximum night vision range?
The built-in Matrix IR 2.0 LEDs provide clear night vision coverage up to approximately 65ft (20m).
